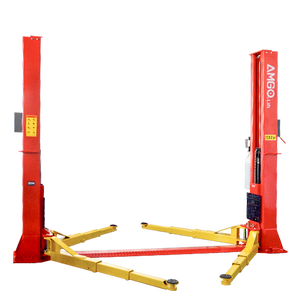

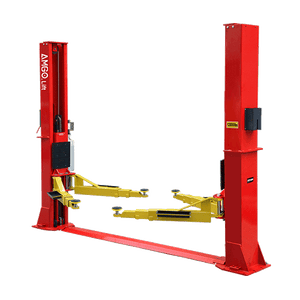

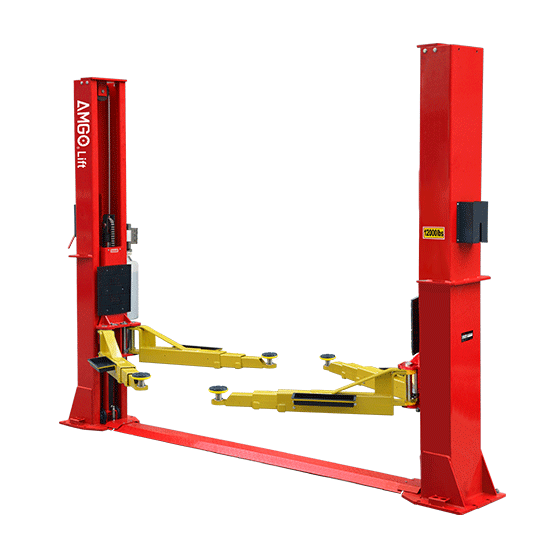

AMGO® BP-12 Base-Plate 2 Post Auto Lift 12,000-lb Capacity

AMGO BP Series Base plate two post lifts are stronger and more convenient to operate than most all other lifts in the world. The rugged BP-12 can lift vehicles up to 12,000 lbs. and is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO two post lifts are manufactured according to high-quality standards, while using critical materials and parts choosing, with advanced features and innovative technology.

Finance Your Auto Lift Today. Apply Now.

Free Shipping - CALL FOR BEST PRICE

Features Include:

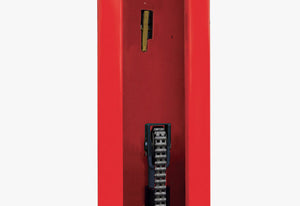

  • 12,000 lbs. capacity, chain-driven 2 post lift with base plate heavy duty design

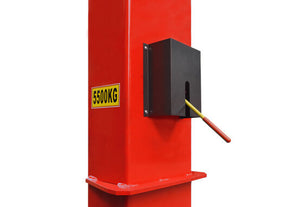

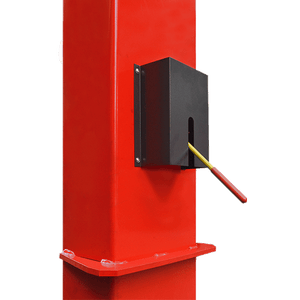

  • Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety.

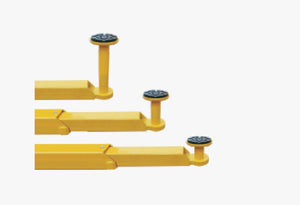

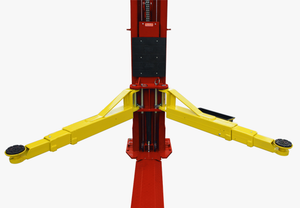

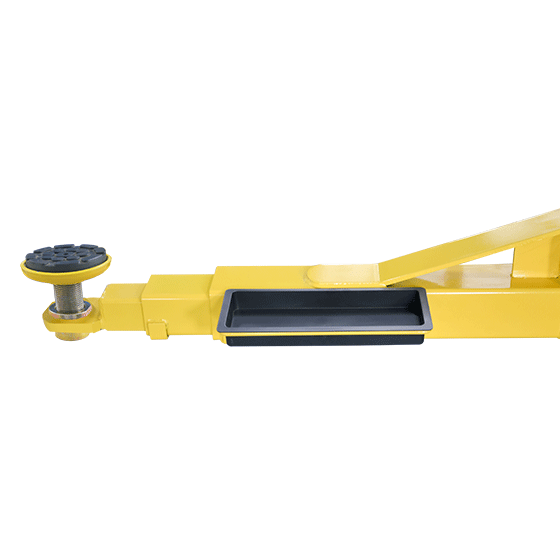

  • 4 three-stages arms suitable for more vehicles

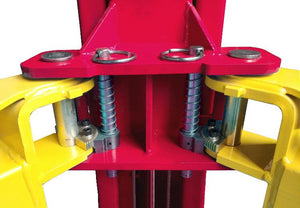

  • Automatic arm restraints keep the arms locked in their proper positions.
  • Width adjustment: width between columns 118 1/8″(3000mm) and 123 1/2″(3137mm)

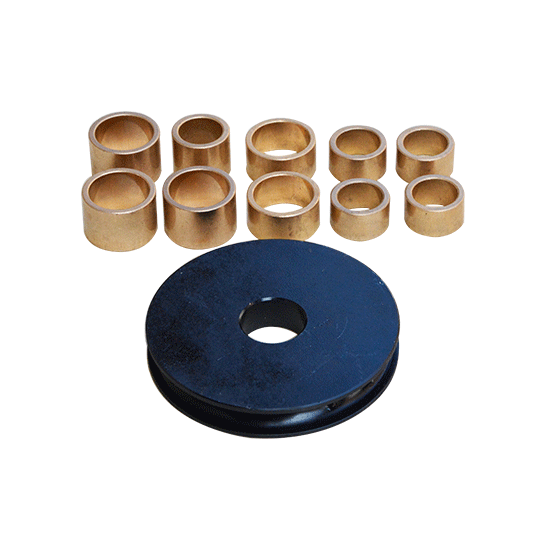

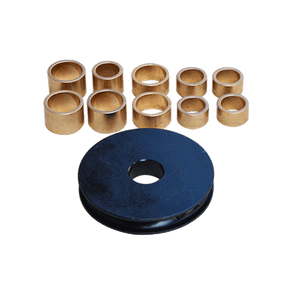

  • Self-lubricating UHMW Polyethylene sliders and bronze bushings
  • Aircraft quality cable is used for synchronization.

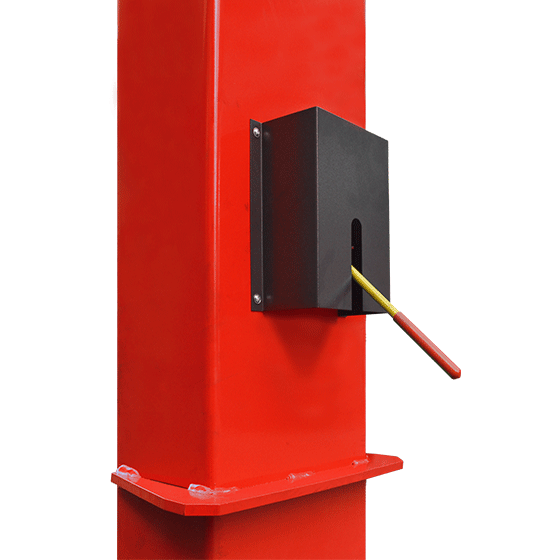

  • Detachable foot guard and tool tray to allow for a clutter free workspace.
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
  • Optional LED Light Kit, 20101

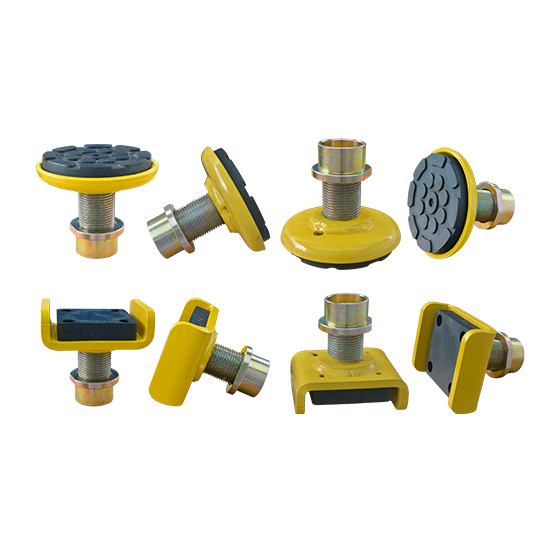

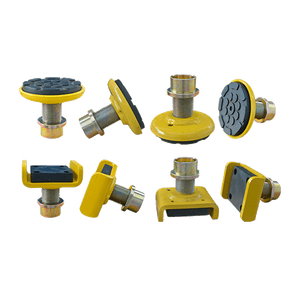

  • OPTIONAL CRADLE/SADDLE PADS SOLD SEPERATLY _ 21103 (1 piece)

Specifications Include:

Model BP-12
Lifting Capacity 12,000 lbs (5,443 kg)
Lifting Time 65S

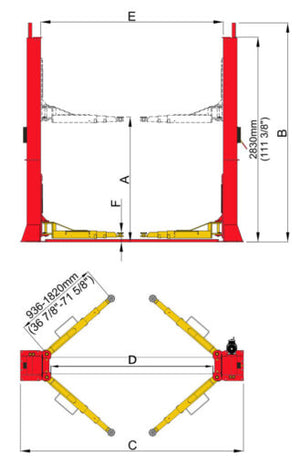

A:Lifting Height 73 1/4″ ~ 82 1/4″ (1860~2089mm)
B:Overall Height 122 1/2″ (3110mm)
C:Overall Width 145 3/8″ / 150 3/4″ (3692 / 3829mm)
D:Drive-Thru Clearance 104 1/2″/ 109 7/8″ (2653 / 2790mm)
E:Width Between Columns 118 1/8″/ 123 1/2″ (3000 / 3137mm)
F:Minimum Pad Height 4 3/4″” (120mm)
Motor 2.0HP/220V/60HZ,Single Phase
Gross Weight 2,150 lbs (975 kg)
