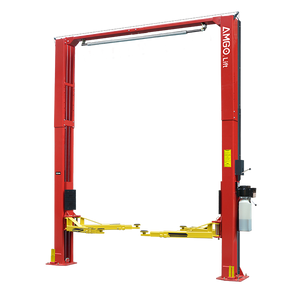

AMGO® OH-12S Heavy Duty 2 Post Auto Lift 12,000-lb Capacity

AMGO OH-12S Short 2-post auto lift is developed by AMGO. The OH-12S is the ideal choice for shops and service centers with limited ceiling height. With 3-stage arms that will work for long and short wheelbase trucks. And heavy-duty construction, self-lubricating bushings, sliders and high-quality parts to make the lifts with almost no maintenance required. The warranty time of the lifts is 5-years for steel construction, 3 years for hydraulic parts, and 2 years for electrical components.

AMGO Heavy-duty two post lifts are the best choice for heavy-duty vehicles or trucks for fleet service and commercial shops. AMGO Two Post Lifts are manufactured on high quality standards by using critical material, advance features and innovated technology.

Finance Your Auto Lift Today. Apply Now.

Free Shipping - CALL FOR BEST PRICE

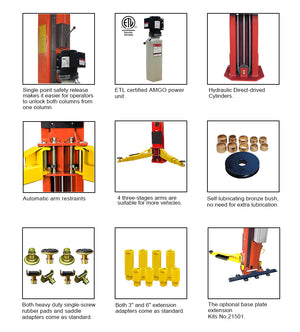

Features Include:

  • 12,000 lbs capacity

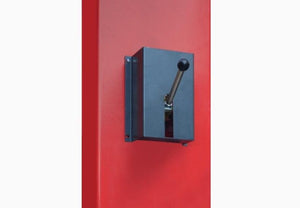

  • Single-point safety release

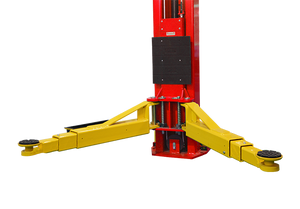

  • 4 three-stages arms allowing to lift the trucks from short to long wheelbase
  • Height Adapters 1.5", 2.5" and a set of 5" (pictured)

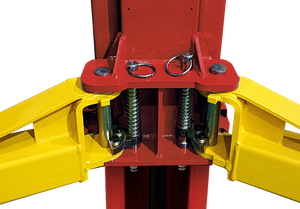

  • Automatic arm restraints keep the arms locked in their proper positions

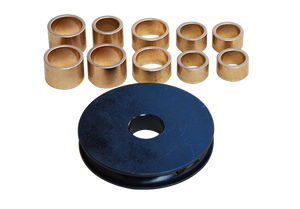

  • Self-lubricating UHMW Polyethylene sliders and bronze bushings
  • Adjustable two height setting accommodate varying service ceiling heights
  • Aircraft quality cable is used for synchronization.

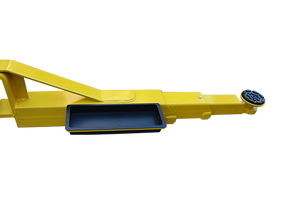

  • Detachable foot guard and tool tray to allow for a clutter free workspace
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
  • Optional LED Light Kit, 20101
  • OPTIONAL CRADLE/SADDLE PADS SOLD SEPERATLY _ 21103, $59.00 (1 piece)


Specifications

Model OH-12S
Lifting Capacity 12,000 lbs (5,443 kg)
Lifting Time 69S
A:Lifting Height 72 1/2″ ~ 81 1/2″ (1842~2071mm)
B:Overall Height 143 1/8″/155 1/8″/167 1/8″ (3635/3940/4245mm)
C:Overall Width 150 3/4″ (3829mm)
D:Drive-Thru Clearance 109 3/4″ (2787mm)
E:Width Between Columns 123 1/2″ (3137mm)
F:Minimum Pad Height 4 1/2″ (115mm)
Motor 2.0HP/220V/60Hz,Single Phase
Gross Weight 2,174 lbs (986 kg)
