Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity
Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity

Atlas® 9KBP Baseplate 2 Post Auto Lift 9,000-lb Capacity

$2,975.00

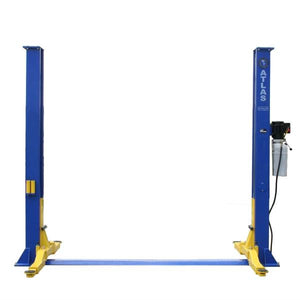

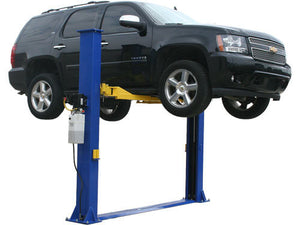

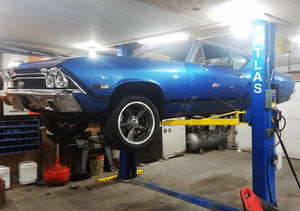

The Atlas® 9KBP is a baseplate two-post lift designed for low ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches.

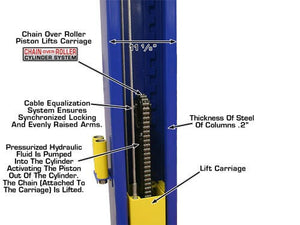

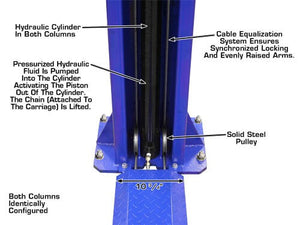

The Atlas® 9KBP features dual hydraulic chain-drive cylinders, symmetric arms, and automatic arm restraints. Atlas® 9KBP two post “chain over roller” lifts have a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING

Features include

  • 9,000 lb. Capacity

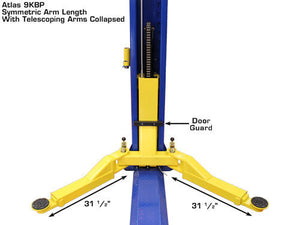

  • Symmetric Arms
  • Base Plate Design
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System (SLS)

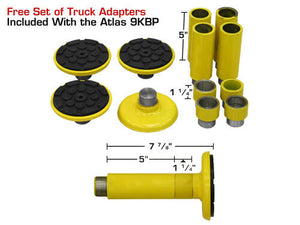

  • Free 8 Piece Truck Adapter Set

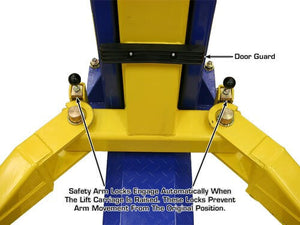

  • Automatic Arm Restraints

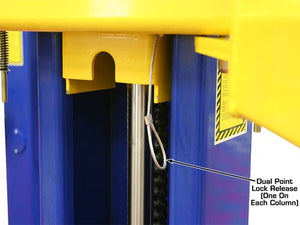

  • Dual Point Lock Release
  • Designed For Low Ceiling Clearance – 9′ 3 ½” Columns
  • Mounting Hardware Included
  • Shipping Weight: 1,400-lb

Specifications Include

ATLAS® 9KBP SPECIFICATIONS
Capacity 9,000 LB.
Manufacturer Atlas

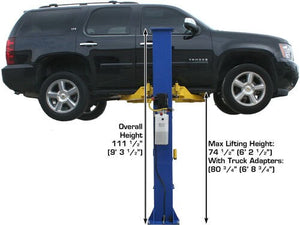

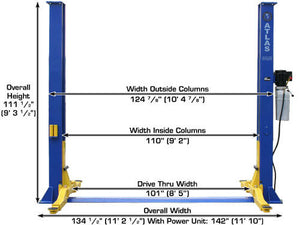

Overall Height 111 ½" (9' 3 ½")

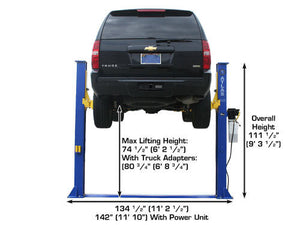

Overall Width 142" (11' 10") (With Power Unit)
134 ½" (11' 2 ½")
Outside Column to Outside Column 124 7/8" (10' 4 7/8")

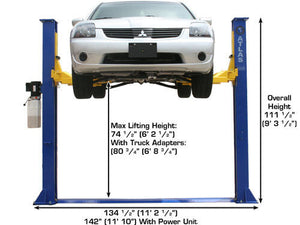

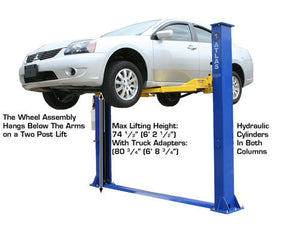

Maximum Lift Height 74 ½" (6' 2 ½")

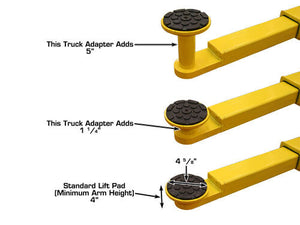

Minimum Arm Height 4"

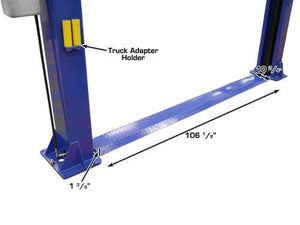

Base Plate Width 10 ¾"
Inside Column 110" (9' 2")
Drive Thru 101" (8' 5")
Column Size 7 ¼" x 11 1/8"
Column Thickness of Steel 5mm
Carriage Thickness of Steel 6mm
Arms Thickness of Steel 6mm
Cable Diameter .375"

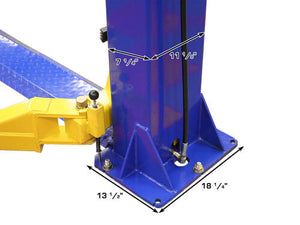

Base Of Lift 13 ½" x 18 ¼"

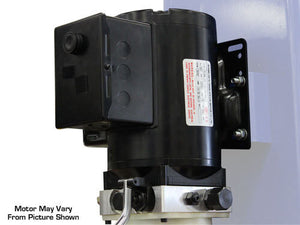

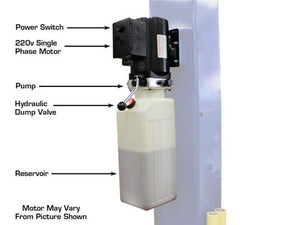

Motor/Electrical Requirement 3 HP 220V single (1) phase.
A 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46

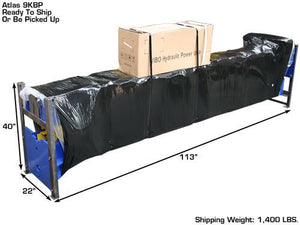

Shipping Weight 1,400 LB.

Requires a minimum of 4" of concrete with 3000 psi.

All lifts come with a step by step instruction manual.
