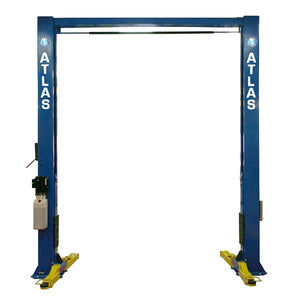

Atlas OHX10000X Symmetric, Tall Overhead 2 Post Auto Lift, 10,000-lb

The Atlas OHX10000X commercial grade two-post lift is the perfect choice for fleet, general repair and tire shops that demand the highest quality at the absolute best price. The Atlas® OHX10000X is WIDER and TALLER than most two-post lifts. From Smart Cars to 1-ton diesel dually to vans or "ladder truck". This lift requires a 13' ceiling height.

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING

Features include

  • Commercial Grade

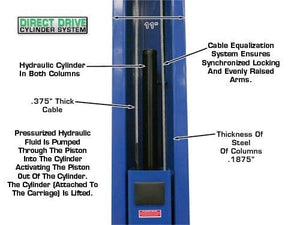

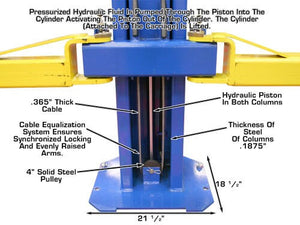

  • Direct Drive Cylinders

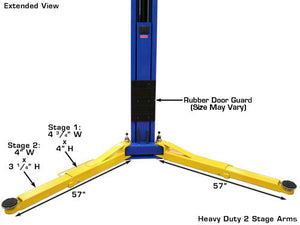

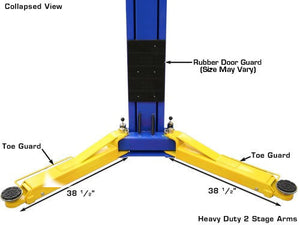

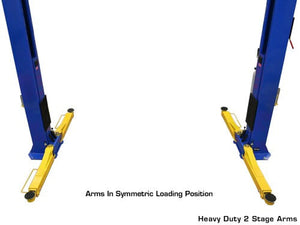

  • 2-Stage Heavy Duty Symmetric Arms
  • Single Piece Columns

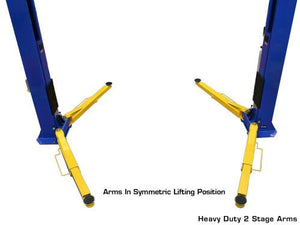

  • Symmetric Columns

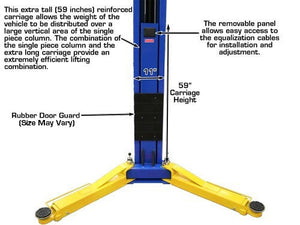

  • Extra Long Carriages
  • Powder Coat Finish
  • 10,000 lb. Capacity
  • Clear Floor Design

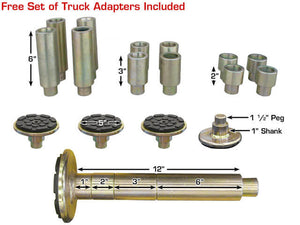

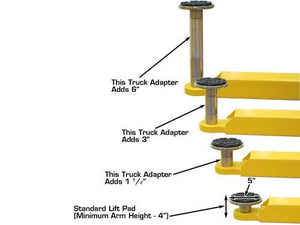

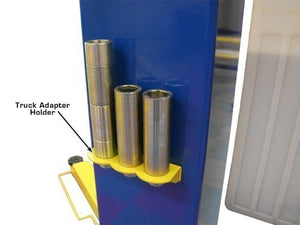

  • Free Truck Adapters
  • Mounting Hardware
  • 5-Year Structural, 2-Year Power Unit Warranty
  • Requires 13' Ceiling height

Specifications include

Capacity 10,000 lb.

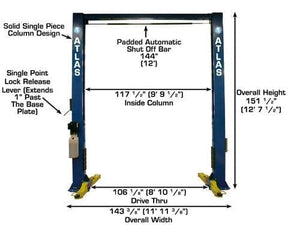

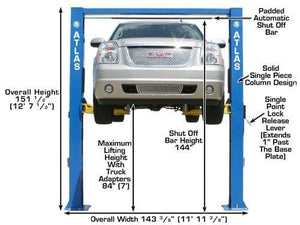

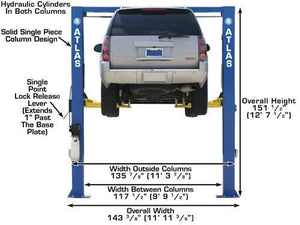

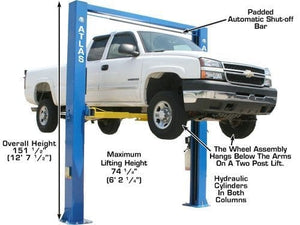

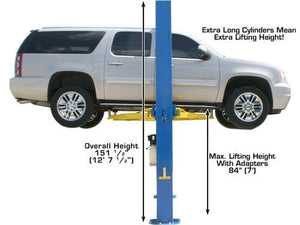

Overall Height 151 1/2" (12' 7 1/2")
Overall Floor Width 143 3/8" (11' 11 3/8")
Outside Column To Outside Column 135 7/8" (11' 3 7/8")

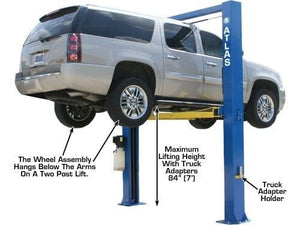

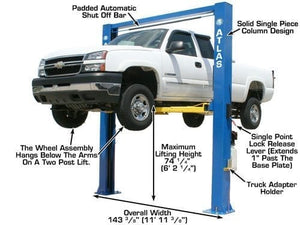

Maximum Lift Height (With Adapters) 84" (7')
Minimum Pad Height 3 1/2"
Inside Column 117 1/2" (9' 9 1/2")
Drive Thru 103" (8' 7")
Drive Thru 106 1/8"

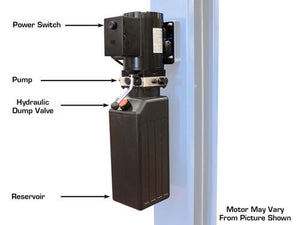

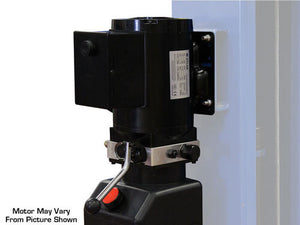

Motor / Electrical Requirement 220 Volt, Single (1) Phase;
A 30 amp Breaker Is Recommended

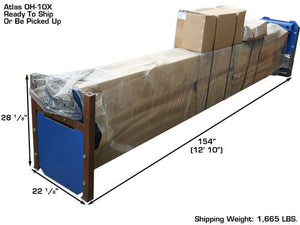

Shipping Weight 1,800 lb.
