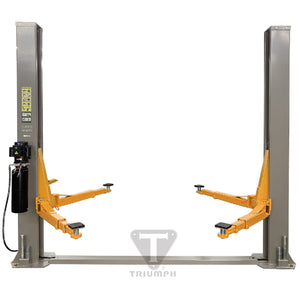

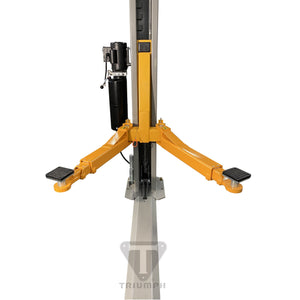

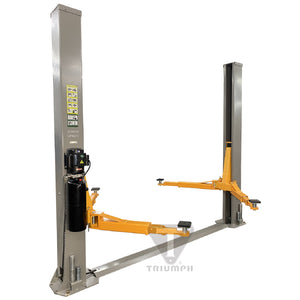

The Triumph Floor Plate NT-11 has commercial grade dual hydraulic chain-drive cylinders, symmetric three stage arms with automatic arm restraints and dual point lock release. Lift is perfect for general repair, tire and body shops with a low ceiling application. Lifting large trucks and vans no problem.
Finance Your Auto Lift Today. Apply Now.
Free Shipping
Specifications include.
- NEW, "Matte Grey Color"
- 11,000 lbs. capacity
- Low Ceiling application
- Floor Plate-Open Top design
- Chain Drive
- Dual Point Lock release
- Powder coat finish

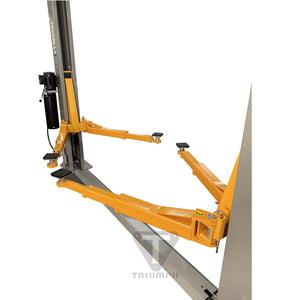

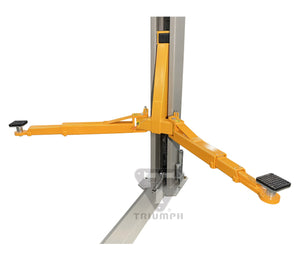

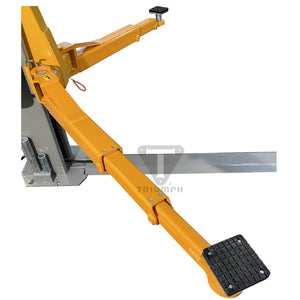

- Three Stage Front Arms

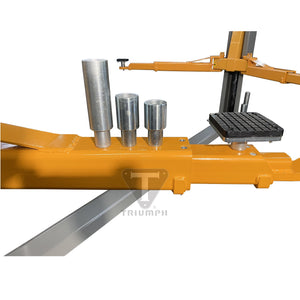

- 4ea Stackable 3″ & 6″ ‘drop-in’ Height Adapters

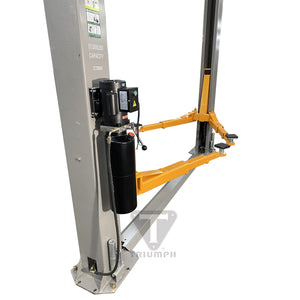

- Front side mounted Power Unit
- Overall Height 116"
- Overall Width 138" (base plate to base plate)
- Distance Between Posts 112"
- Drive Thru Width 102"
- 72" Pad height-at highest locking position
- 4 1/2" Minimum Pad height
- Base Plate 19" x 17"
- 3 Horse Power Unit - 220volt - 30 amp
-
2 stage arms 34-49''
3 stage arms 28-48''
center pin to center pad
