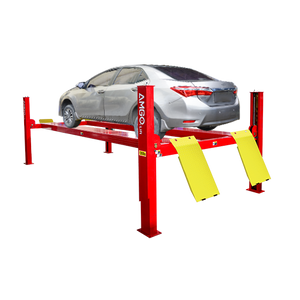

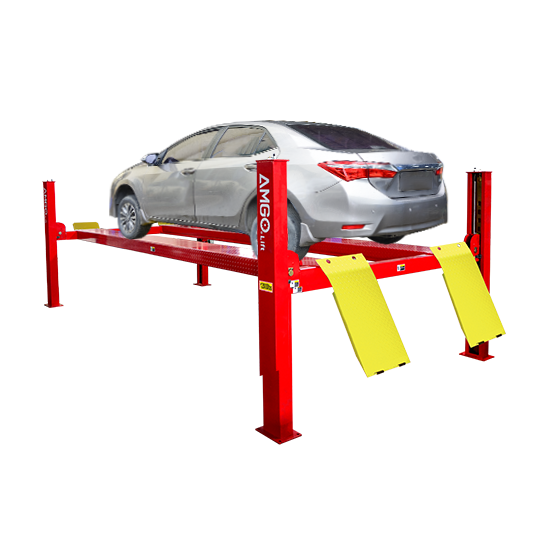

AMGO® PRO-12SX, 4-Post Auto Lift, 12,000 Capacity

The PRO-12SX is a perfect lift to work on regular everyday vehicles up to 12,000lbs. With air-released safety locks for convenient operation and consistent reliability, this lift will more than meet your everyday service needs.

Finance Your Auto Lift Today. Apply Now.

Free Shipping - CALL FOR BEST PRICE - (844-536-6505)

Features include

  • 12,000 lbs lifting capacity.

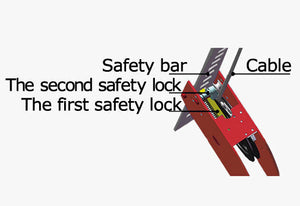

  • Air-released safety lock for convenient operation and reliability.
  • Mechanical self lock and cable breaking protection.

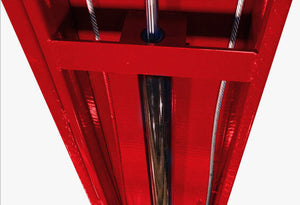

  • 3/8″ Aircraft quality cable.
  • Optional adjustable turnplate pockets to fit different wheel bases.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4”(1100mm) and maximum distance is 53 3/4”(1365mm).
  • Strict quality control of cylinders with flow restrictors to keep a constant low speed.
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.

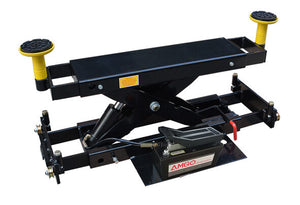

Optional Rolling Jacks:

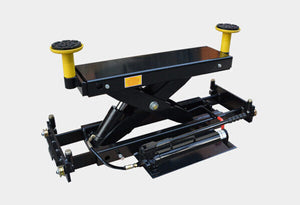

-J6H 6,000lbs manual control
-J6A 6,000lbs pneumatic pump

More choices:
-Optional led lights: No. 40103
-Optional extension kit: No. 41203

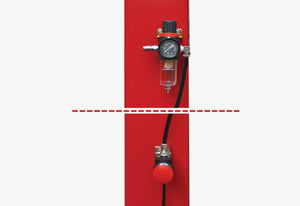

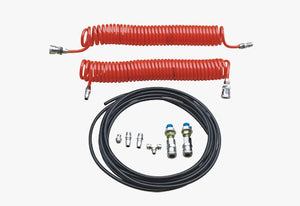

-Optional air line kit: No. 40102



Specifications Include:

Model PRO-12SX
Style Non-Alignment
Lifting Capacity 12,000 lbs (5,500 kg)
Lifting Time 45S
A: Overall Length (Inc.Ramps) 232 5/8″ (5910mm)
B: Overall Length (No.Ramps) 196 3/4″ (4998mm)
C: Overall Width 132 1/8″ (3356mm)
D: Width Between Columns 118 1/8″ (3000mm)
E: Max. Lifting Height 73 1/2″ (1865mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 6 5/8″ (170mm)
H: Max. Underneath Height 67 7/8″ (1724mm)
I: Drive-Thru Clearance 104 1/8″ (2646mm)
J: Width Between Runways 43 1/4″ (1100mm),   Max. 53 3/4″ (1365mm)
K: Outside Edge of Runways 83 1/4″ (2116mm),   Max. 93 3/4″ (2381mm)
Gross Weight 2,255lbs (1,023kg)
Motor 2.0HP, 220V/60Hz Single Phase
