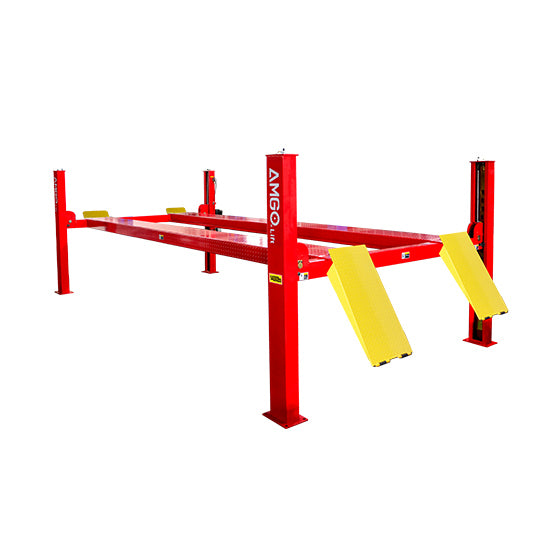

AMGO® PRO-14, 4-Post Auto Lift, 14,000 Capacity

The AMGO PRO-14 incorporates many structural and cosmetic features that are found in more expensive lifts in the market. The AMGO PRO-14 4-post auto lift is tested to ensure that this lift system will perform flawlessly at its rated capacities.

Finance Your Auto Lift Today. Apply Now.

Free Shipping - CALL FOR BEST PRICE - (844-536-6505)

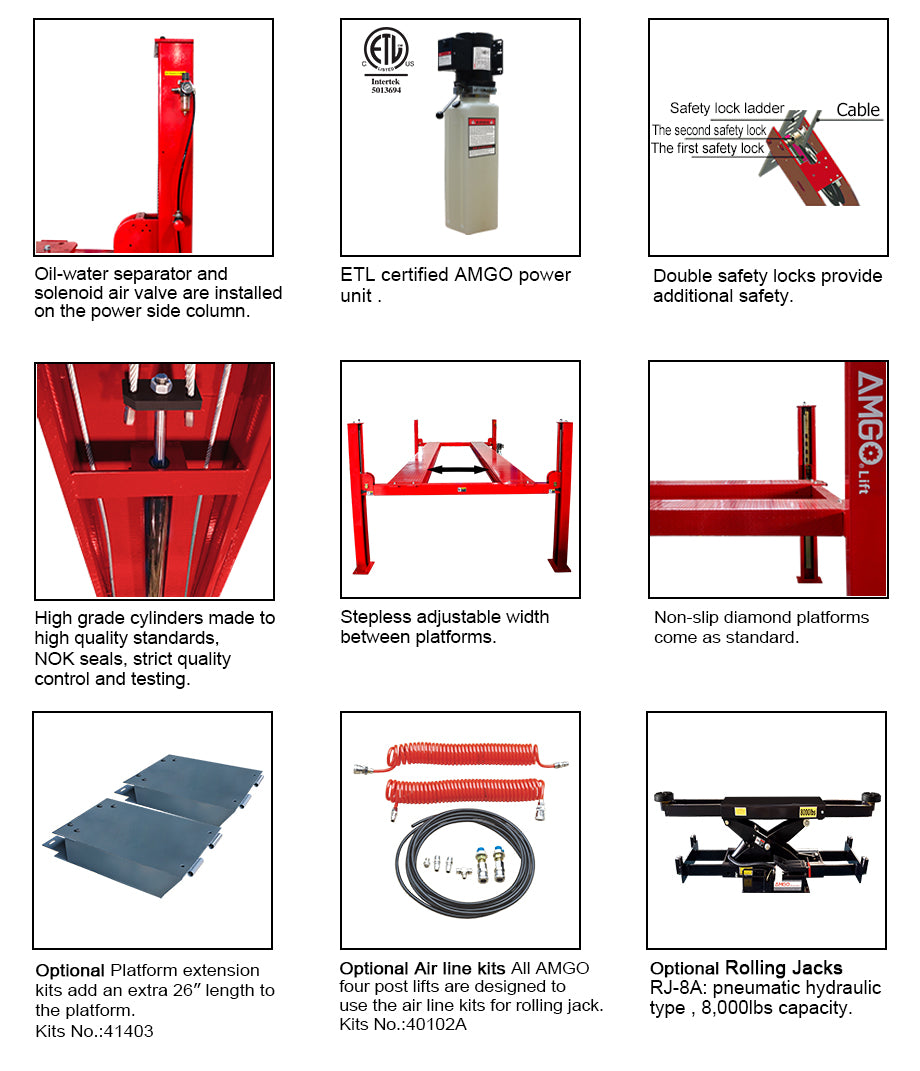

Features include

  • 14,000 lbs capacity

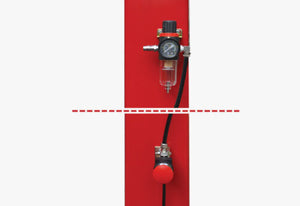

  • Air-released safety lock for convenient operation and reliability

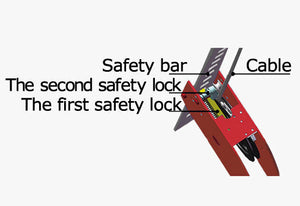

  • Mechanical self-lock and cable-breaking protection
  • 1/2″ aircraft quality cable
  • Skid proof diamond platform

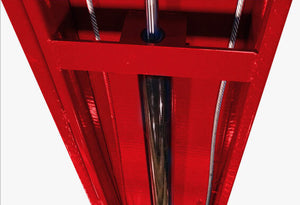

  • Hydraulic cylinders are designed and made to high quality standards
  • Adjustable lifting platform: Off-side platform can be adjusting the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm)
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Optional Accessories Available



Specification Include:

Model PRO-14
Style Non-Alignment
Lifting Capacity 14,000 lbs (6,500 kg)
Lifting Time 76S
A: Overall Length (Inc.Ramps) 257 1/2″ (6541mm)
B: Overall Length (No.Ramps) 216 1/2″ (5500mm)
C: Overall Width 130 7/8″ (3324mm)
D: Width Between Columns 116″ (2946mm)
E: Max. Lifting Height 73 1/2″ (1865mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 7 7/8″ (200mm)
H: Max. Underneath Height 66 3/4″ (1695mm)
I: Drive-Thru Clearance 102 1/8″ (2592mm)
J: Width Between Runways 47″ (1194mm), Max. 54 1/2″ (1385mm)
K: Outside Edge of Runways 87″ (2210mm), Max. 94 1/2″ (2401mm)
Gross Weight 2,791lbs (1,266kg)
Motor 2.0HP, 220V/60Hz Single Phase
