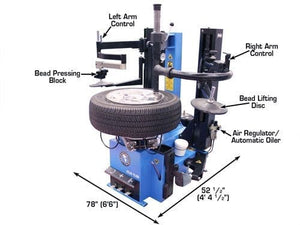

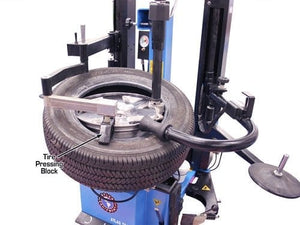

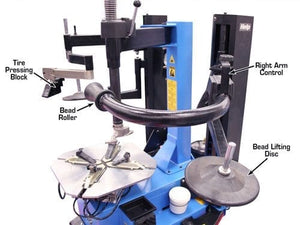

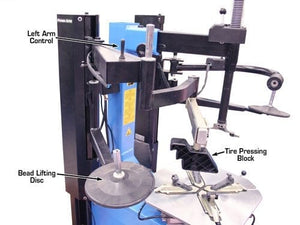

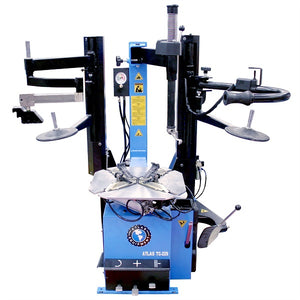

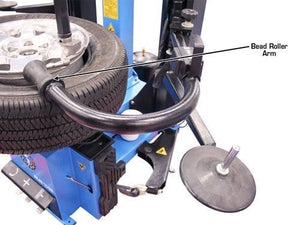

The Atlas® TC229DAA wheel clamp tire changer is the Atlas® TC229 wheel clamp tire changer that has been equipped with the pneumatic Atlas® LH assist arm plus the Atlas® RF assist arm that includes a bead roller and second bead lifting / pressing disc. The addition of the Dual Arm Assembly (DAA) to the Atlas® TC229 makes the Atlas® TC229DAA one of the most powerful wheel clamp tire changers in the marketplace.
Finance Your Tire Changer Today. Apply Now.
FREE SHIPPING
Features include
Specification include
| Atlas® TC229 DAA Specifications | |
| Rims | Steel, Aluminum, Alloy |
| External Locking Rim Dimension (3 Positions) |
1) 9 3/4 21 5/8 (1 9 5/8) 2) 10 3/4 22 1/2 (1 10 1/2) 3) 11 5/8 23 1/4 (1 11 1/4) |
| Internal Locking Rim Dimension (3 Positions) |
1) 11 5/8 23 1/4 (1 11 1/4) 2) 12 5/8 (1 5/8) 24 1/4 (2 1/4) 3) 13 1/2 (1 1 1/2) 25 1/4 (2 1 1/4) |
| External Locking Rim Dimension (With Flip Adapters ATV Configuration) (3 Positions) |
1) 2 7/8 14 3/4 (1 2 3/4) 2) 3 3/4 15 5/8 (1 3 5/8) 3) 4 5/8 16 5/8 (1 4 5/8) |
| External Locking Rim Dimension (With Flip Adapters Motorcycle Configuration) (3 Positions) |
1) 12 5/8 (1 5/8) 24 1/2 (2 1/2) 2) 13 5/8 (1 1 5/8) 25 1/2 (2 1 1/2) 3) 14 1/2 (1 2 1/2) 26 3/8 (2 2 3/8) |
| Maximum Tire Diameter | 39 (3 6) |
| Operating Voltage | 110 V 1Ph |
| Maximum Wheel Width (Bead Breaker) | 13 (1 1) |
| Air Pressure | 90 110 psi |

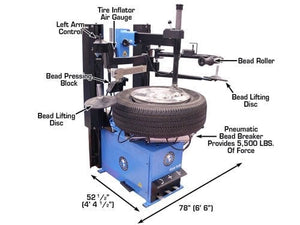

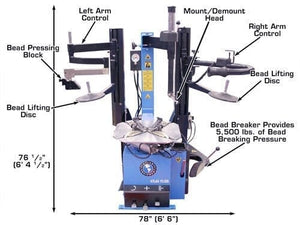

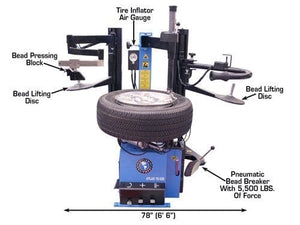

| Bead Breaker | Pneumatic, 5,500 lb. Force |
| Oiler, Filter, Regulator | Included |
| Soap Reservoir | Included |
| Warranty | 1 Yr. Limited |
| 4 Black Plastic Rim Protectors | Included |
| Shipping Weight | 600 lb. |
