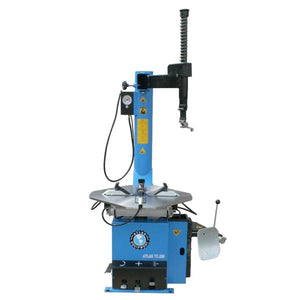

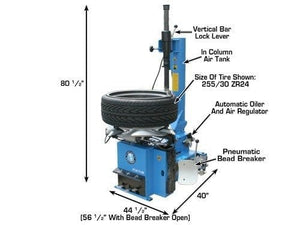

The Atlas® TC289, with its extra large turntable and extended clamping range is designed and built for professional high volume tire repair shops. The turntable jaws (which can be covered with the standard protective plastic inserts) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slides of the turntable to either increase or decrease the clamping range of the Atlas® TC289 wheel clamp tire changer.
Finance Your Tire Changer Today. Apply Now.
FREE SHIPPING
Features Include
Specification include
| ATLAS® TC289 SPECIFICATIONS | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rims | Steel, Aluminum, Alloy | ||||||||||||||||||||||
| External Clamping Range | Position 1) 11 7/8" 26" Position 2) 12 7/8" 27" Position 3) 13 3/4" 28" |
||||||||||||||||||||||
| Internal Clamping Range | Position 1) 13 7/8" 27 7/8" Position 2) 14 5/8" 28 7/8" Position 3) 15 5/8" 29 7/8" |
||||||||||||||||||||||

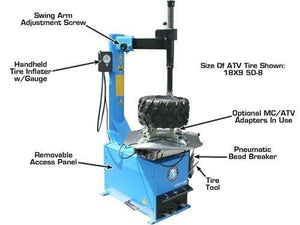

| External Locking Rim Dimension (With Flip Adapters In The ATV Configuration) |
Position 1) 5" 19 1/8" Position 2) 5 7/8" 20 1/8" Position 3) 6 7/8" 21 1/8" |
||||||||||||||||||||||

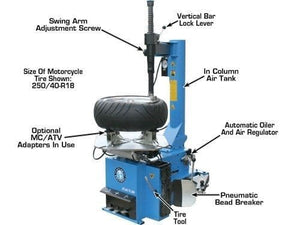

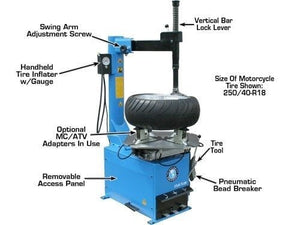

| External Locking Rim Dimension (With Flip Adapters In The Motorcycle Configuration) |
Position 1) 15" 29 1/8" Position 2) 15 7/8" 30" Position 3) 16 7/8" 31" |
||||||||||||||||||||||
| Bead Blaster | Yes | ||||||||||||||||||||||
| Maximum tire diameter | 47 | ||||||||||||||||||||||
| Operating voltage | 110V 1Ph (220v option) | ||||||||||||||||||||||
| Maximum wheel width (Bead Breaker) | Position 1) 14 Position 2) 18 |
||||||||||||||||||||||
| Air pressure | 90 110 psi | ||||||||||||||||||||||
| Maximum Inlet Pressure not to exceed | 170 PSI* | ||||||||||||||||||||||
| Shipping weight | 618 LBS. | ||||||||||||||||||||||
| Turntable Rotating Torque | 885 ft/lbs. | ||||||||||||||||||||||
| Wheel clamping | 4 jaws: internal/external | ||||||||||||||||||||||
| Bead breaker | Pneumatic, 5,500 LB. force | ||||||||||||||||||||||
| Oiler, filter, regulator | Included | ||||||||||||||||||||||
| Soap reservoir | Included | ||||||||||||||||||||||
| Warranty | 1 yr. limited | ||||||||||||||||||||||
| 4 Black plastic rim protectors | Included | ||||||||||||||||||||||
| *Inlet pressure is the amount of air pressure that your air compressor is supplying. | |||||||||||||||||||||||
