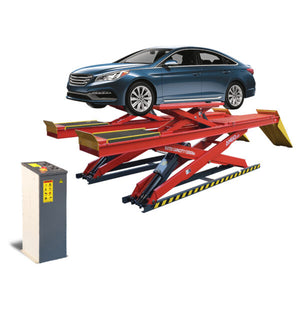

The AMGO DX-12A Double Scissors Lift is the ideal lift for easily and conveniently lifting all wheels off the runway for brake, tire, suspension and two or four-wheel alignment work. The DX-12A is made stronger, more versatile, and easier to use and can lift 12,000lbs.
Finance Your Auto Lift Today. Apply Now.
Features include
Specifications include.
| Model | DX-12A |
| Main Scissor Lifting Capacity | 12,000 lbs (5,500 kg) |
| Lifting Time | 63S |
| A1: Max. Lifting Height | 73 5/8″ (1870mm) |
| A2: Minimum Height | 12 5/8″ (320mm) |
| B: Runway Length | 196 1/2″ (4991mm) |
| C: Overall Width | 86 1/4″ (2190mm) |
| D: Width Between Runways | 37″ (940mm) |
| E: Overall Length(Inc.Ramps) | 257″ (6527mm) |
| F: Min.Four Wheel Align | 85 7/8″ (2180mm) |
| G: Max.Four Wheel Align | 166 1/2″ (4230mm) |
| H: Max.Two Wheel Align | 172 7/8″ (4390mm) |
| Secondary Scissor Lifting Capacity | 9,000lbs (4000kg) |
| I: Secondary Scissor Lifting Height | 16 1/2″ (420mm) |
| J: Secondary Scissor Length | 63″~74″ (1600~1880mm) |
| Gross Weight | 5,706 lbs (2,588 kg) |
| Motor | 2.0HP 220V/60Hz Single Phase |
