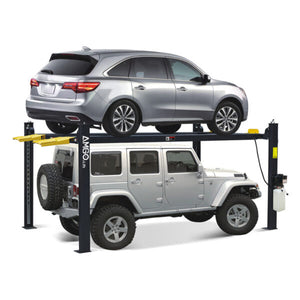

AMGO Storage Lift 409-HP, 4 Post Parking Auto lift, 9,000-lb Capacity

AMGO 409-HP Commercial Grade Four Post Parking Lift for full range vehicle including car, SUV and light truck. Similar to model 408-HP, but longer, wider and heavier. It is the perfect service lift for shops and home car ports. The 409-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 409-HP one of the best commercial or private use lifts in the world. The 409-HP is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 9,000 lbs.

Finance Your Auto Lift Today. Apply Now.

Free Shipping

Specifications Include

  • 9,000lbs lifting capacity
  • High lifting rise: 82”

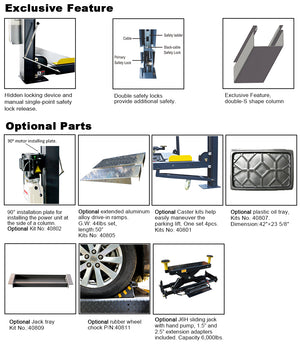

  • AMGO exclusive hidden safety lock and manual single-point release device
  • Multi safety locks in each column
  • Adjustable lock ladder
  • Automatic safety locks combined with redundant anti-fall devices
  • Double-S shaped columns for increasedthe columns strength
  • Non-slip platform
  • Standard configuration with 4 wheel stops which is more safe
  • Flexible Design: power side column can be installed at any corner
  • Designed portable,it can be moved easily by using the optional caster kits
  • 220V or 110V single phase power unit
  • AMGO 5-3-2 Warranty
  • ALL ACCESSORIES ARE SOLD SEPARATELY
    (Caster Kit, Drip Trays, Jack Platform, 90° Motor Bracket)

Specifications Included:

Model 409-HP
Lifting Capacity 9,000lbs
Lifting Time 122s(110V)  46s(220V)
A:Overall Length(Inc. Ramps) 234 1/2″ (5957mm)
B:Overall Length(No Inc. Ramps) 200 3/4″ (5100mm)
C:Overall Width 126 1/4″ (3206mm)
D:Width Between Posts 112 5/8″ (2860mm)
E:Max. Lifting Height 87 3/4″ (2227mm)
F:Overall Height 96 5/8″ (2455mm)
G:Minmum Height 6 1/8″ (155mm)
H:Max. Underneath Height 83″  (2107mm)
I:Drive-Thru Clearance 98 1/4″ (2496mm)
J:Width Between Runways 42 3/8″ (1077mm)
K:Outside Edge of Runways 82 3/8″ (2093mm)
Gross Weight 1,993lbs (904kg)
Motor 1.0HP 110V/60Hz;  2.0HP 220V/60Hz
