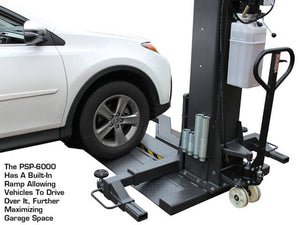

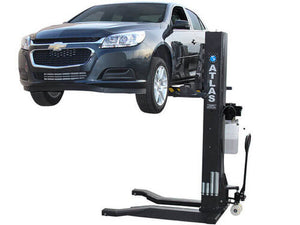

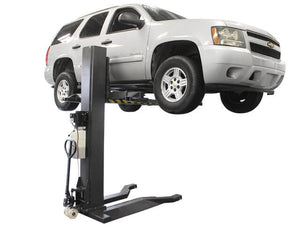

The Atlas PSP-6000 portable single post lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.
The Atlas PSP-6000 column is equipped with the chain break mechanism that automatically locks the carriage into place in the unlikely event of a chain failure. The Portable Single Post Lift rolls easily on a level concrete surface and can be used either inside or outside of your garage. The column fits under a 9-foot (108 inch) ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift.
Finance Your Auto Lift Today. Apply Now.
Features Include
Specifications Include

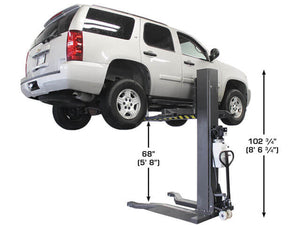

| Overall Height | 102 3/4" (8' 6 3/4") |

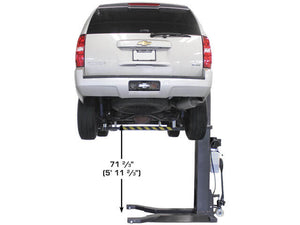

| Max. Lifting Height (Without Truck Adapters) | 71 2/3" (5' 11 2/3") |

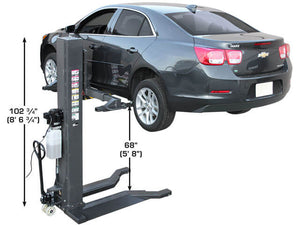

| Max. Clearance | 68" (5'8") |
| Min. Height | 5" |

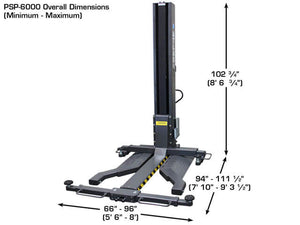

| Overall Maximum Dimensions | L: 111 1/2” x W: 96" x H: 102 3/4” |
| Column Size | 10 1/2" x 12 1/2" |

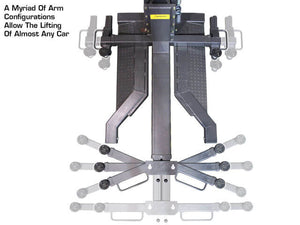

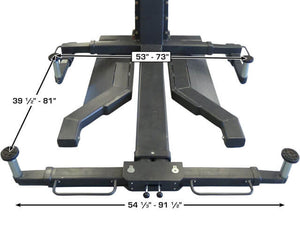

| Distance Between Lifting Pads (Column Side to Offside) | 39 1/2" - 81" |
| Distance Between Lifting Pads (Column Side to Column Side) | 53" - 73" |
| Distance Between Lifting Pads (Offside Side to Offside) | 54 1/3" - 91 1/2" |
| Locking Positions | 16 |
| Motor | 110v single phase |

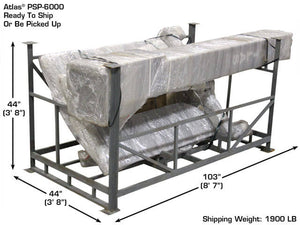

| Shipping Weight | 1900 LB |
