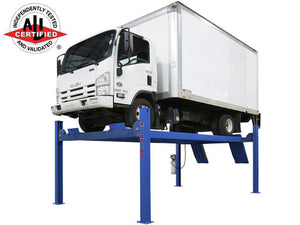

The Atlas Platinum PVL-14 is a four (4) post commercial grade, heavy-duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles. The PVL-14 is also ALI CERTIFIED and backed by one of the industry’s best warranties for an added peace of mind. This lift comes with our 5-year structural warranty and 2-year hydraulic warranty and features our double lock safety system.

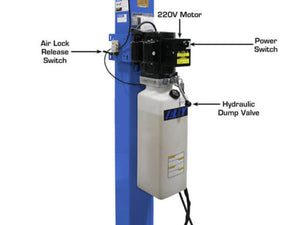

This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
The Atlas Platinum RJ7000 Rolling Jack is an ALI Certified Accessory for this Atlas Platinum PVL-14 ALI Certified 4-Post Lift.
Finance Your Auto Lift Today. Apply Now.
Features include
Specifications include
| Atlas Platinum PVL14 Specifications | |
| Capacity | 14,000 lb. |
| Overall Height | 92 1/2" (7' 8 1/2") |
| Lifting Height | 76 1/2" (6' 4 1/2") |
| Overall Width (Without Motor) | 131 3/4" (10' 11 3/4") |
| Overall Width (With Motor) | 140 1/2" (11' 8 1/2") |
| Overall Length (Without Ramps) | 211 1/2" (17' 7 1/2") |
| Overall Length (With Ramps) | 251 1/2" (20' 11 1/2") |
| Length Between Columns | 196" (16' 4") |
| Runway Length | 205 1/2" (17' 1 1/2") |
| Runway Width | 20" (1' 8") |
| Thickness of Runway | 7" |
| Width Between Runways | 43" (3' 7") |
| Width Between Runway Rails | 39 1/2" (3' 3 1/2") |
| Outside Runway to Outside Runway | 83" (6' 11") |
| Clearance Under Runways | 69 1/2" (5' 9 1/2") |
| Column Dimensions | 6 1/2" x 5" |
| Base of Column | 10 1/2" x 9" |
| Clearance Between Columns | 116 1/2" (9' 8 1/2") |
| Maximum Wheel Base | 184" (15' 4") |
| Drive Thru | 94 1/2" (7' 10 1/2") |
| Ramp Length | 49 1/2" (4' 1 1/2") |
| Minimum Lowered Height | 7 3/4″ |
| Motor/Electrical Requirement | 220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 |
| Shipping Weight | 2,800 lb. |
