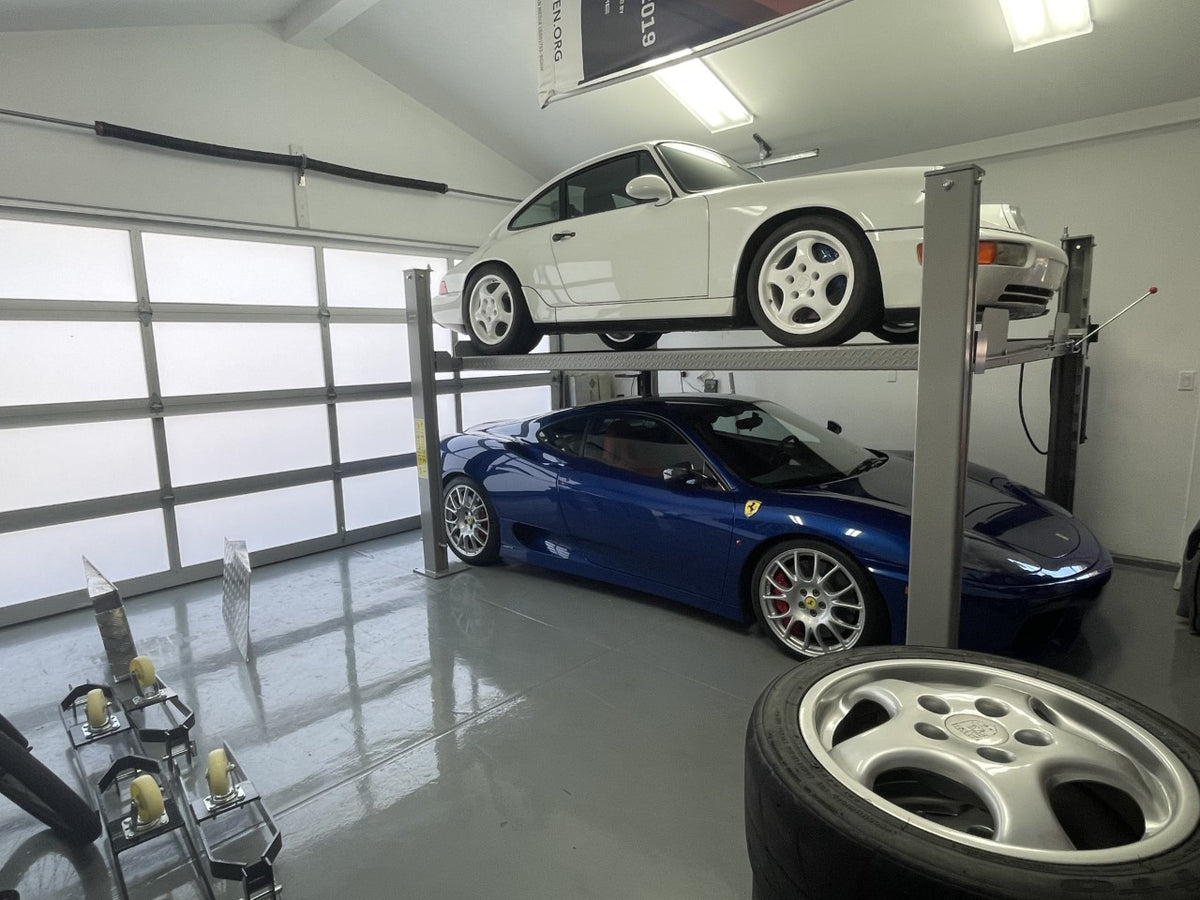

Triumph Storage Lift NSS8, 4 Post Parking lift, 8,000-lb Capacity

The Triumph Storage 4 Post Auto Lift NSS8. This parking lift will fit into almost any garage with clearance and dimensions of a standard parking space. This highest selling lift on the market is good for cars, SUV's and light duty trucks. Comes with a caster kit, jack tray, and three drip trays. The drips trays will keep any fluid from the top vehicle from dripping on the bottom vehicle. Jack tray allows you to use a bottle jack or floor jack to lift one end of your vehicle. Caster kit allows you to easily move your auto lift around the garage. It is easy to set up and completely portable.

Aluminum Approach Ramps are standard. These approach ramps are made with lightweight aluminum (with underside reinforcement) so they are easy to move yet very sturdy.

Optional SJ-35 Hydraulic Center Slide Jack available. This sliding hydraulic vehicle jack is the perfect choice for the owner of the Triumph NSS8 Series 4-Post car lift. The Triumph SJ-35 Sliding Jack has telescoping arms that can be extended over the runways of the four-post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS (that are located over the runways of the four-post lift) of the vehicle allowing the operator to access many more LIFTING POINTS than just using the jack tray.

CALL FOR BEST PRICE * 844-536-6505

Finance Your Auto Lift Today. Apply Now.

Free Shipping

Specifications Include

  • Lifting Capacity: 8,000 lbs.
  • Aluminum Approach Ramps standard
  • Power Unit: UL Listed Plug
  • Power Unit: Steel Oil Reservoir - competitors are plastic
  • Safety Linkage: Enlarged Lock Linkage - 33% larger than competitors.
  • Overall Height: 84"
  • Overall Length: 175"
  • Overall Length with Approach Ramps: 195"
  • Overall Width: 106"
  • Lifting Height: 72"
  • Height Under Runway: 69"
  • Runway Length: 165"
  • Drive Thru Width: 93"
  • Runway Width: 18"
  • Width Between Runways: 37"
  • Runway Lowered Height: 5"
  • Locking Positions: 10"
  • First Locking Position: Approximately 24"
  • Base Plate Size: 12 x 12 in
  • Cable Diameter Size: 3/8"
  • Lock Release: Single Point
  • Lifting Time: 40 seconds
  • Power Unit Voltage: 110, (30 amp breaker required)
  • Shipping Weight: 1600-lb
  • Includes: Caster Kit, 3-Drip Trays, Jack Plate and Light Weight Aluminum Approach Ramps.
