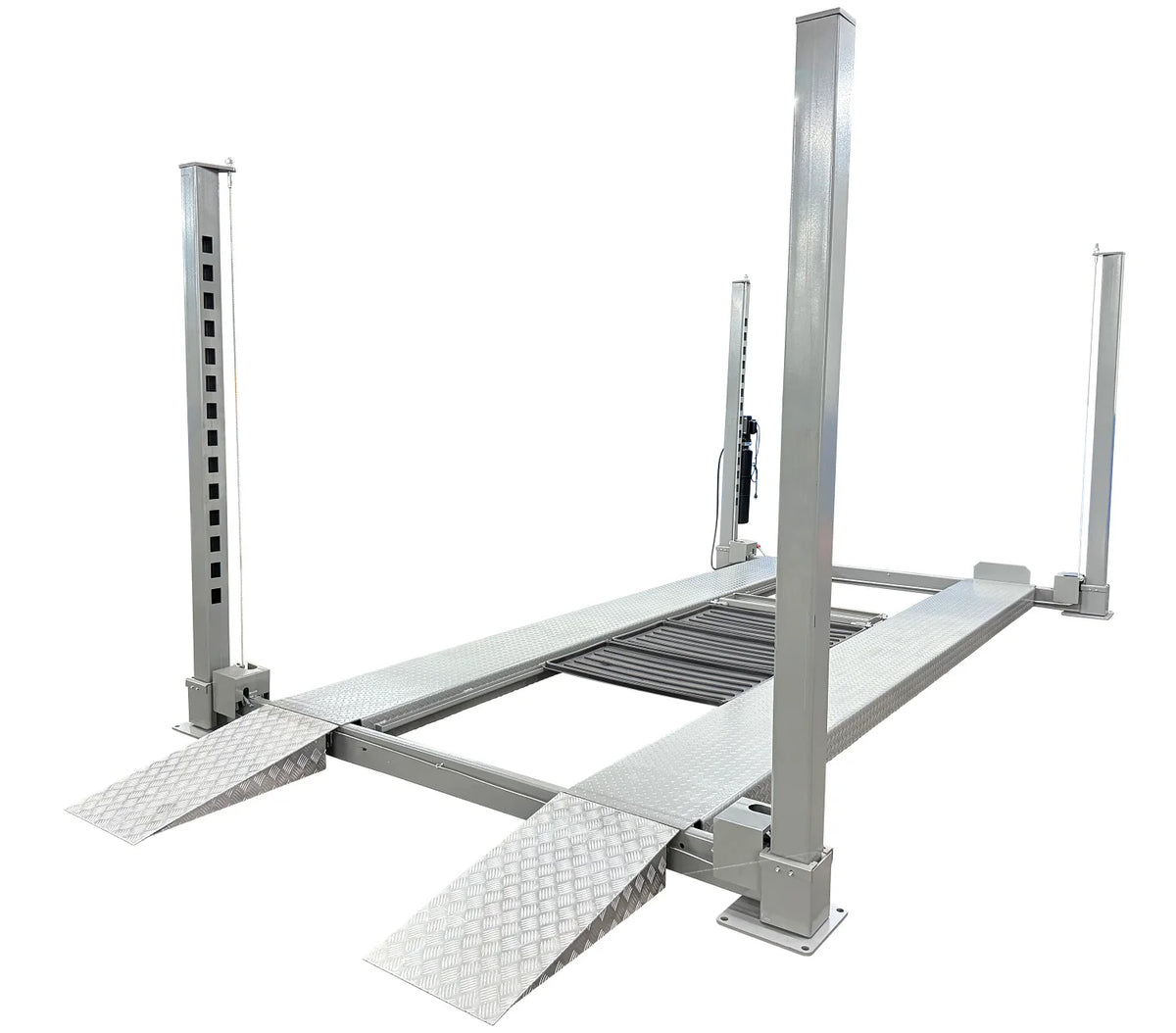

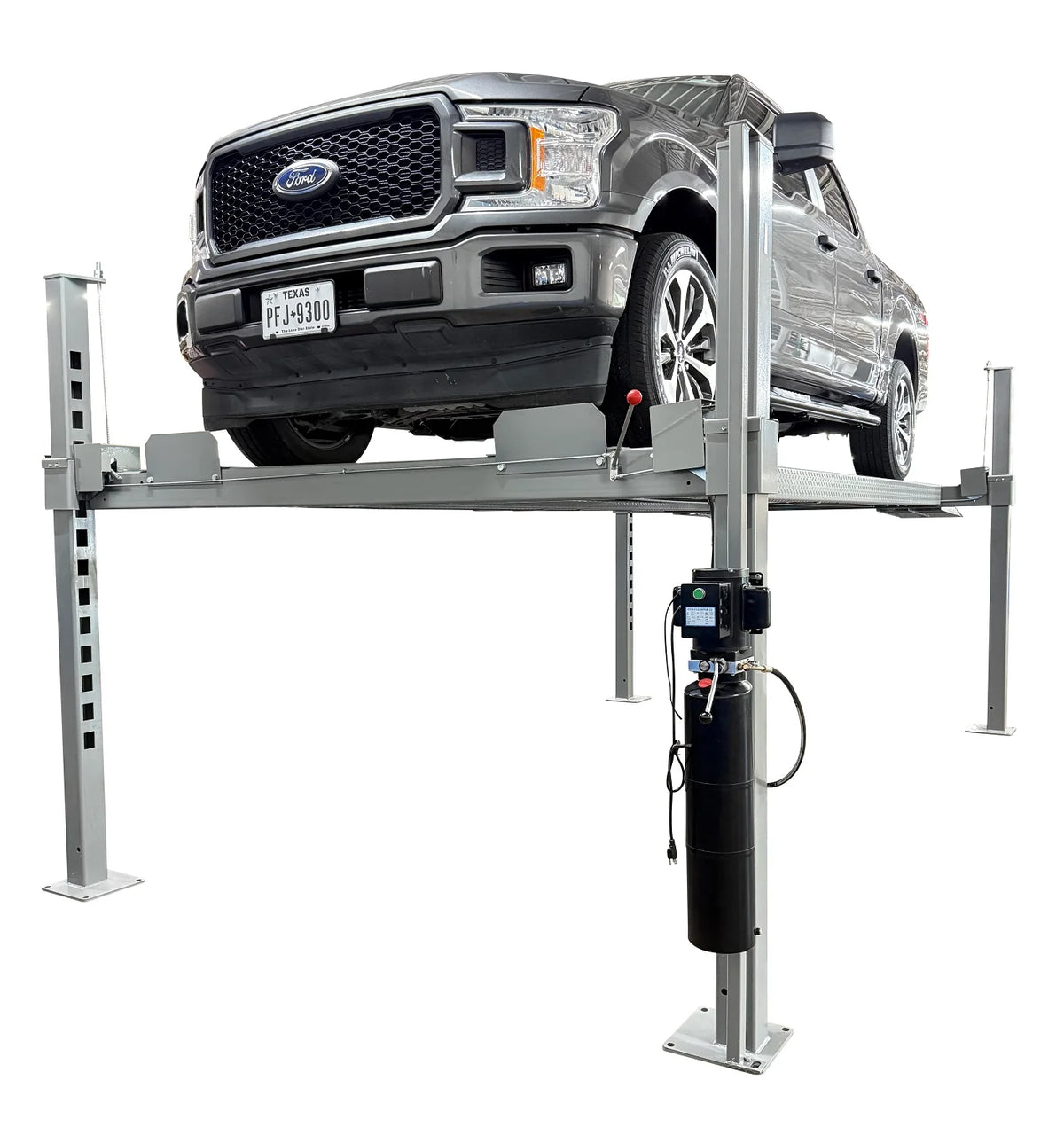

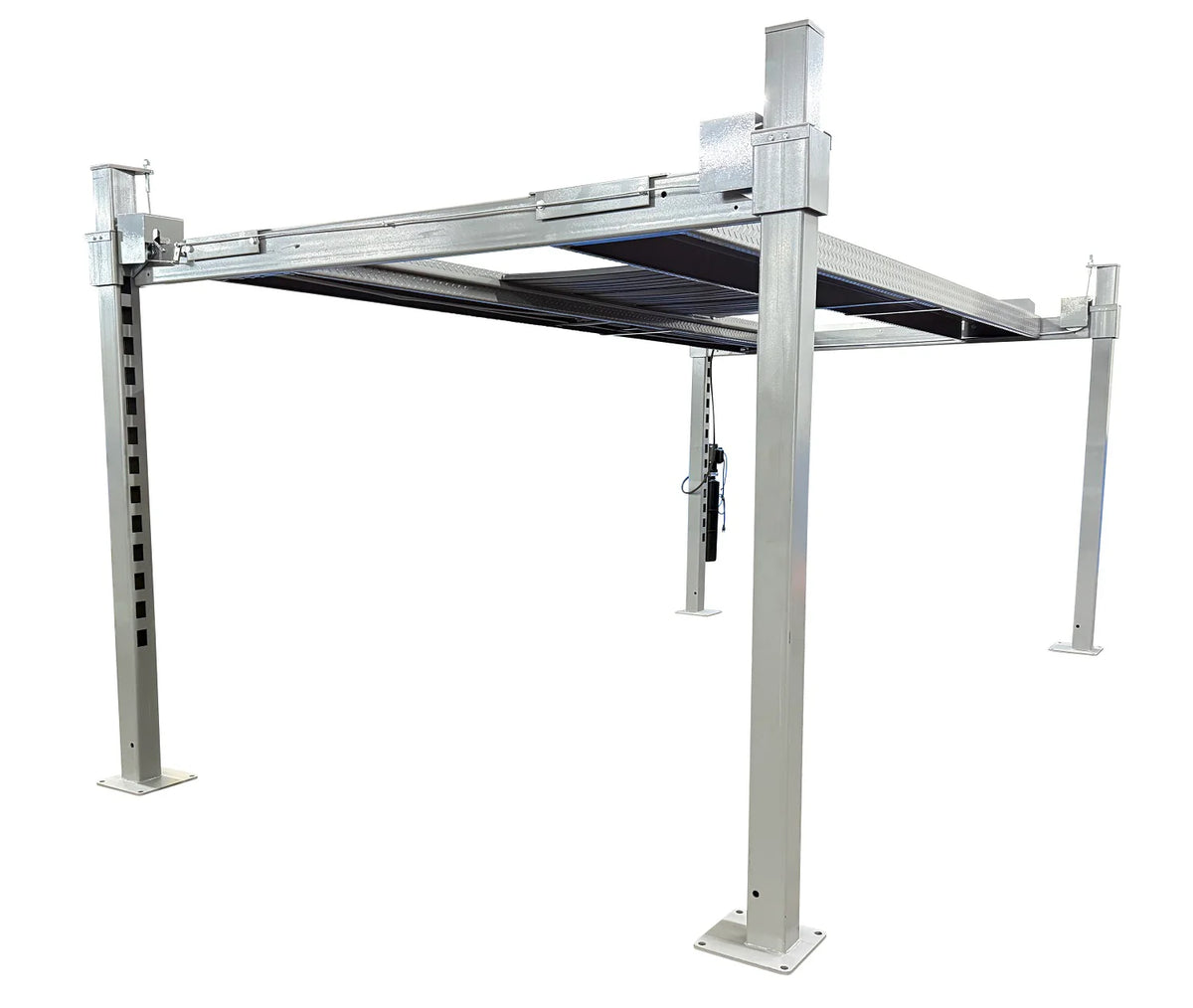

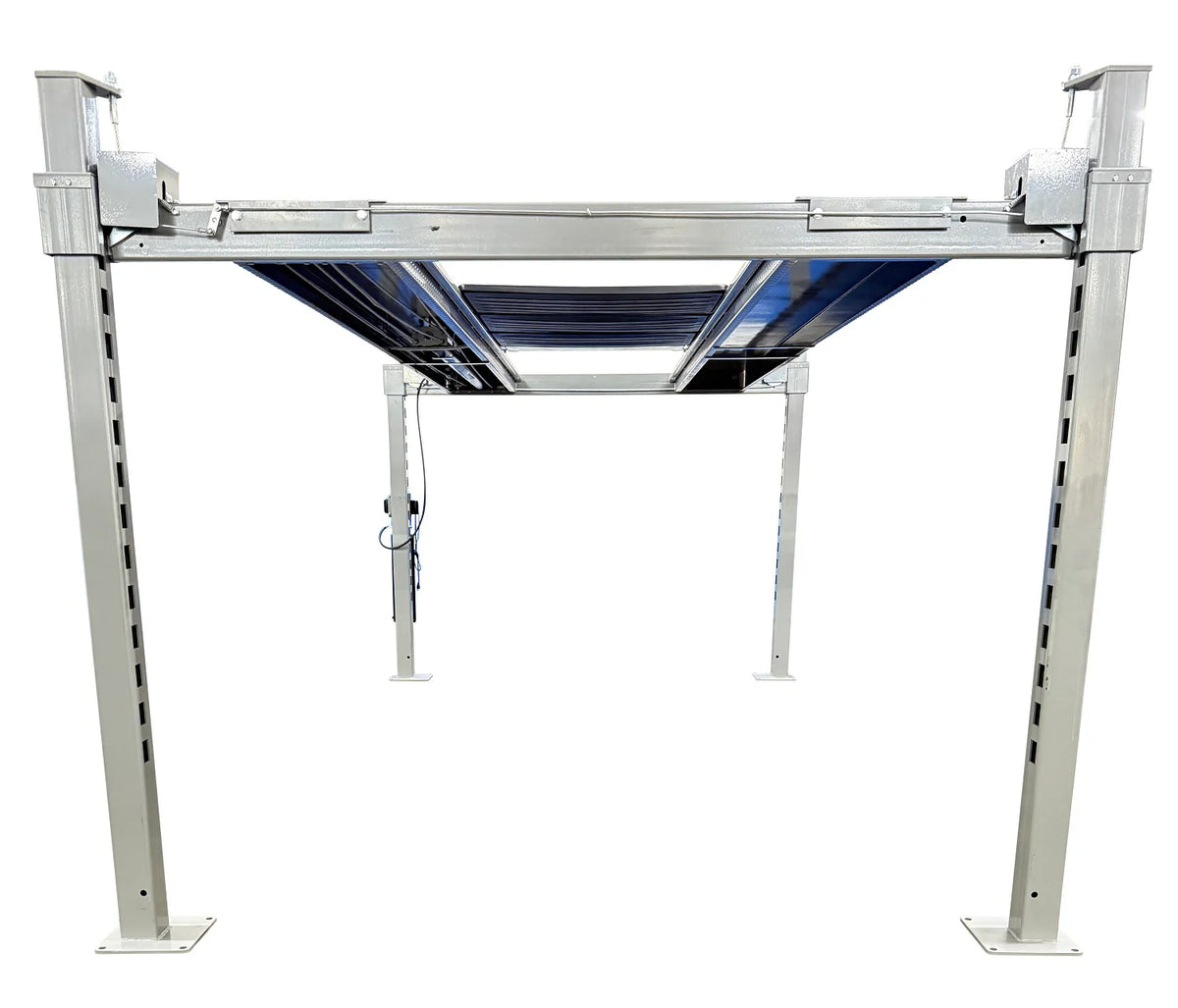

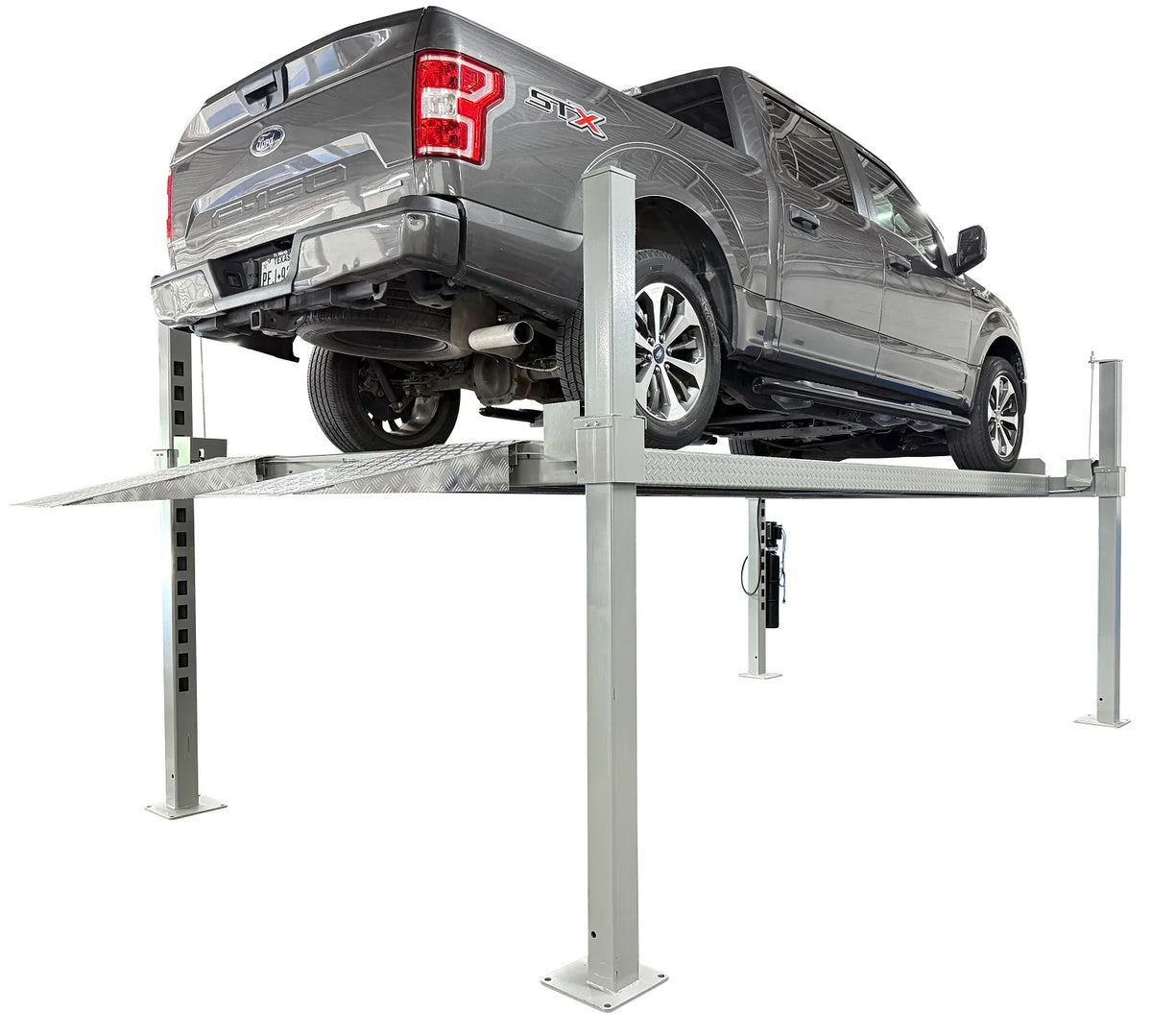

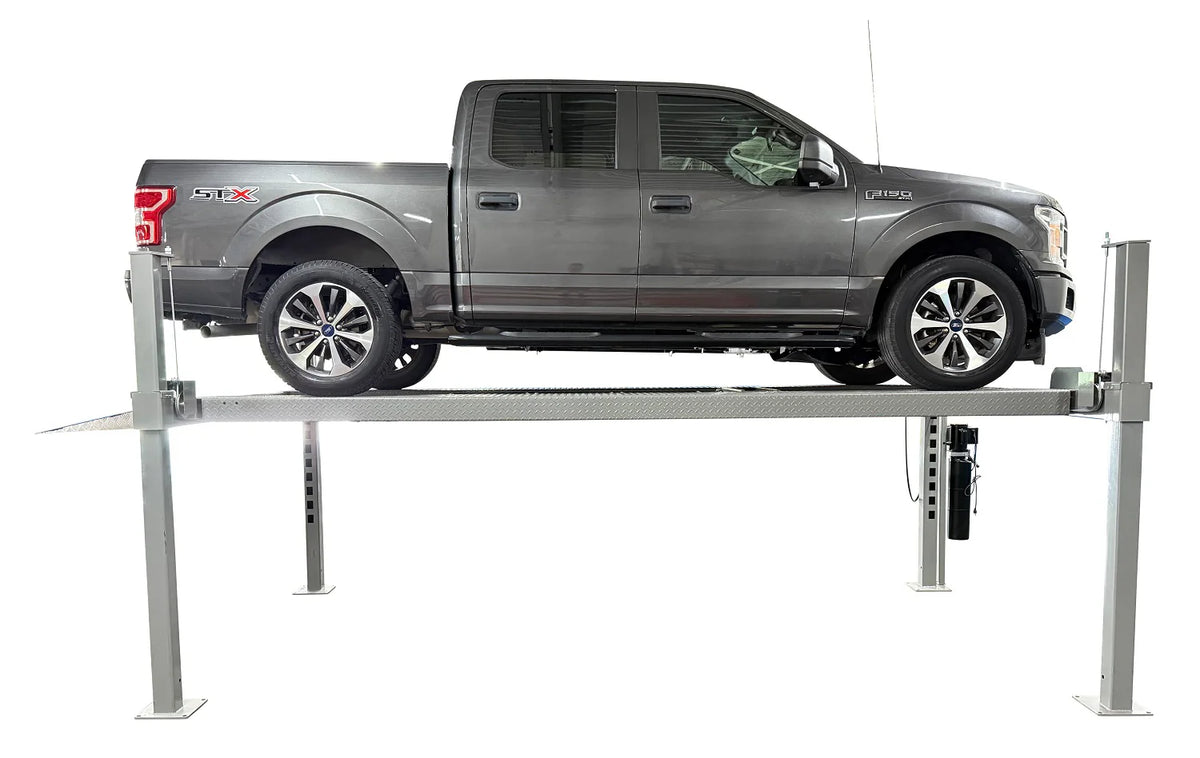

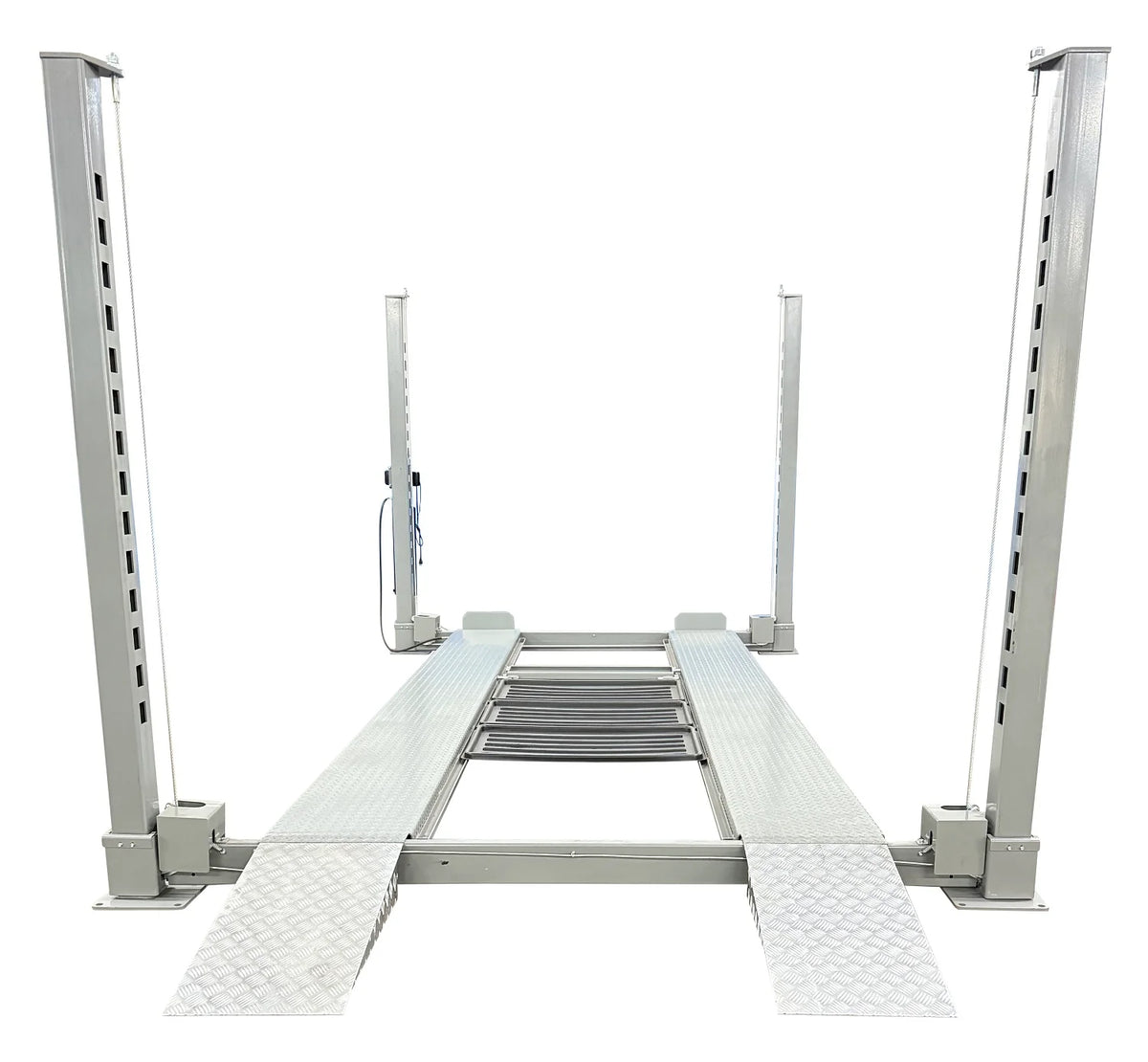

The Triumph Service Storage 4 Post Auto Lift NOS10000 has boxed-steel columns that create incredible strength that eliminate twisting and bending. Safety first 5/8″ thick, 12″ x 12″ baseplates that better support loads on different floor surfaces and finishes. Surrounded by exterior steel sleeves that retain solid capture of the lift columns. Your vehicle will be safe and secure, supported at all times. Also, tipping is decreased by cradling columns with steel sleeves that interlock.
Also included are Aluminum Approach Ramps, Casters, Drip Trays, Jack Plate.
Finance Your Auto Lift Today. Apply Now
Free Shipping
Features Include:
- 4.75"x4.75" post with 6.5"x6.5" slide collars
- Manual dead bolt locks with oversized release linkage
- 36" aluminum ramps weighing only 29 lbs. each

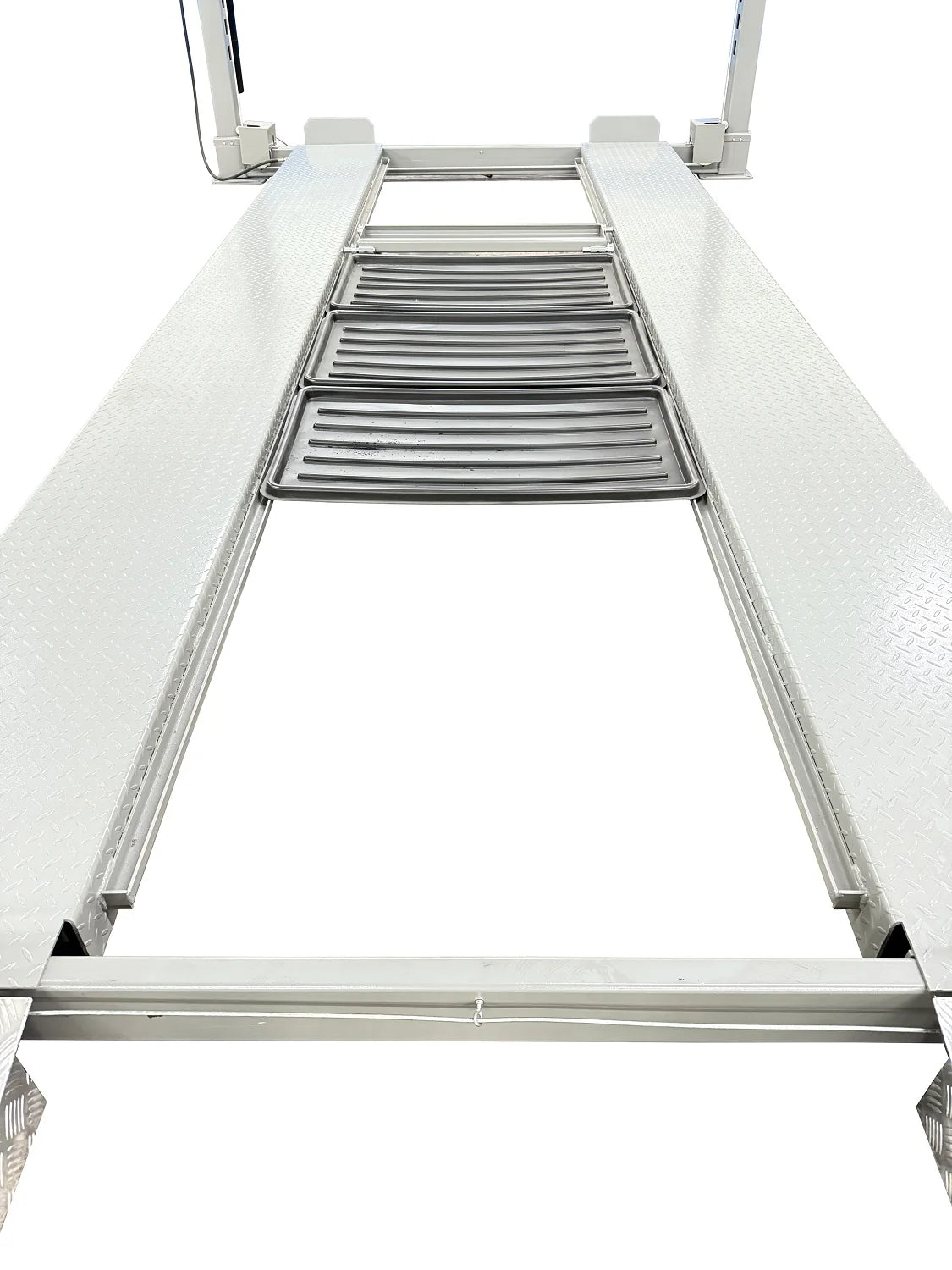

- Set of drip trays included
- Boxed tracks for extra strength
- Secondary redundant safety system
- Rolling jack tray
- Cable keepers to prevent cable run off
- 12"x12" 5/8" base plates

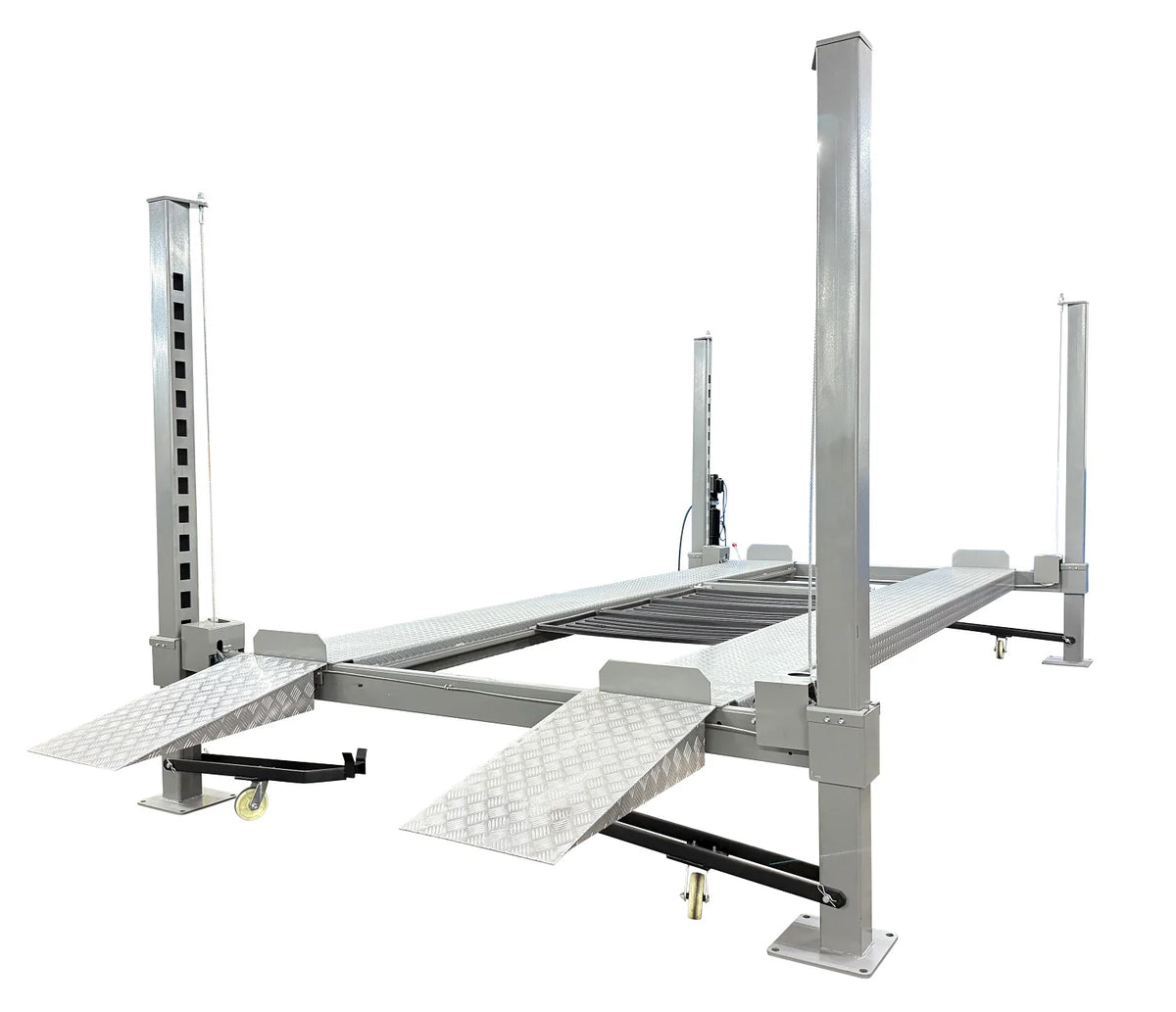

- Heavy duty poly coated casters included

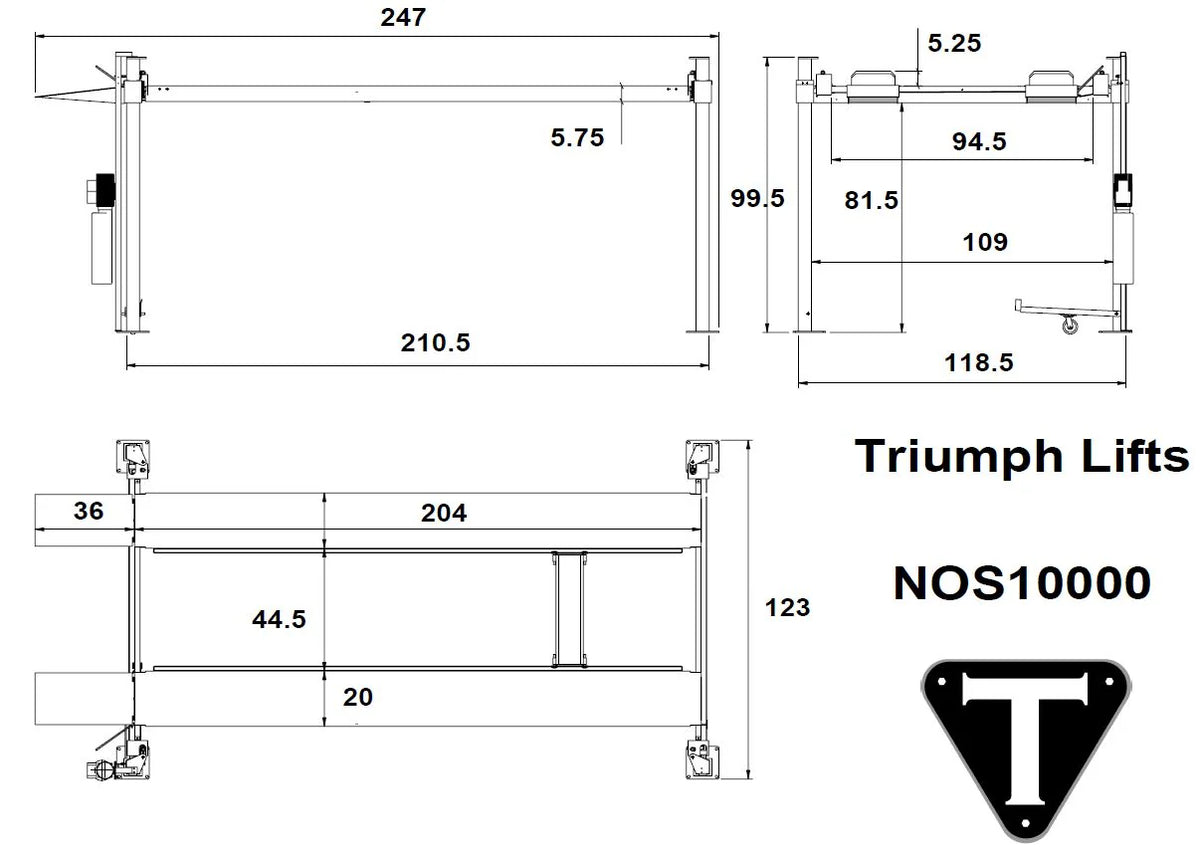

Specifications:
- Capacity 10,000 lbs.
- Overall Height 99.5"
- Overall Length 210.5"
- Overall Width 123"
- Lift Height 87"
- Height Under Runway 81.5"
- Runway Length 204"
- Drive Thru Width 109"
- Runway Width 20"
- Lowered Height 5.5"
- Locking Positions 14
- Base Plate Size 12" x 12"
- Lock Release Single Point
- Lift Time 60 Seconds
- Voltage 110 Volts
- Shipping Weight 2,535 lbs.
