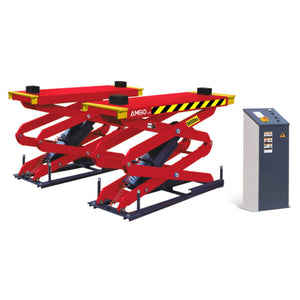

AMGO XL-9F Flush Mount Open Center, Full Rise Scissor Auto Lift 9,000-lb Capacity

The AMGO XL-9F Scissor Lift is the perfect choice for you. AMGO’s Full Rise XL-9F Flush Mount Scissor Lift works great for raising vehicles high enough to walk underneath, and can be flush mounted to the floor, maximizing limited bay space. The XL-9F is made stronger, more versatile, and easier to use and can lift 9,000lbs.

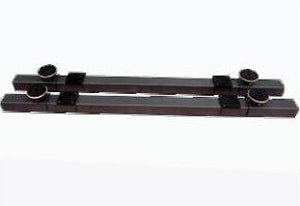

Purchase the optional AMGO SX703 Scissor Lift Support Bar System.

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING - CALL FOR BEST PRICE

Features include

  • 9,000 lb lifting capacity
  • Features an electric/hydraulic power system
  • Dual synchronous cylinders are applied to assure the lifting level on both platforms

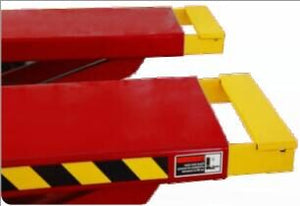

  • Platforms are designed to be extended. It can be adjusted for any car type

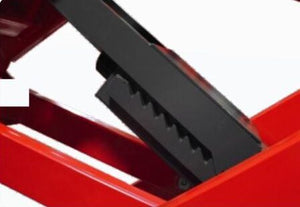

  • Both mechanical and hydraulic lock system. This makes it one the safest small scissor lift in the world
  • Optional LED Light Kit for Scissor Lifts, PX010

Specifications include

 Model XL-9F
 Lifting Capacity 9,000 lbs (4,000 kg)
 Lifting Time 49 S
A: Max. Lifting Height 87 3/4″ (2230mm)
B: Minimum Height 13 3/4″ (350mm)
C: Overall Length 65 1/8″-80 7/8″ (1654-2054mm)
D: Overall Width 74 3/4″ (1900mm)
E: Width Between Runways 31 1/2″ (800mm)
 Motor 2.0HP,220V/60Hz,single phase
 Gross Weight 2,028 lbs (920 kg)
