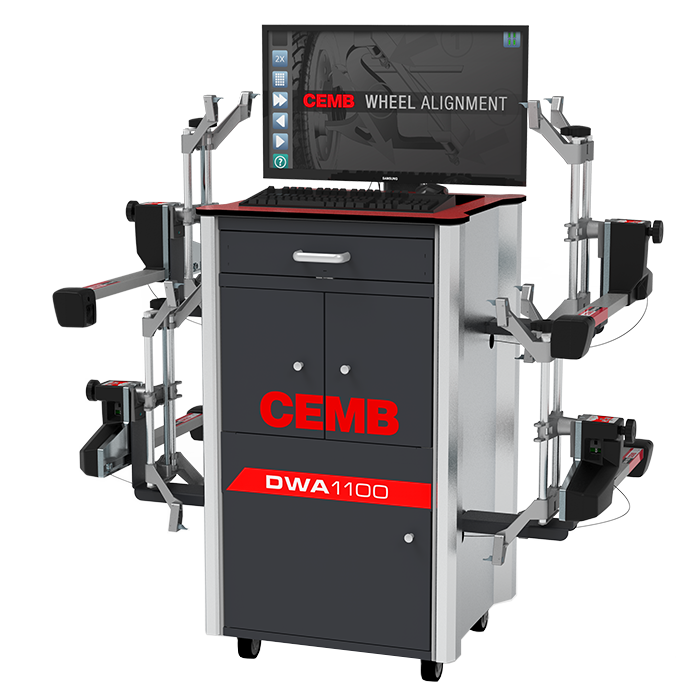

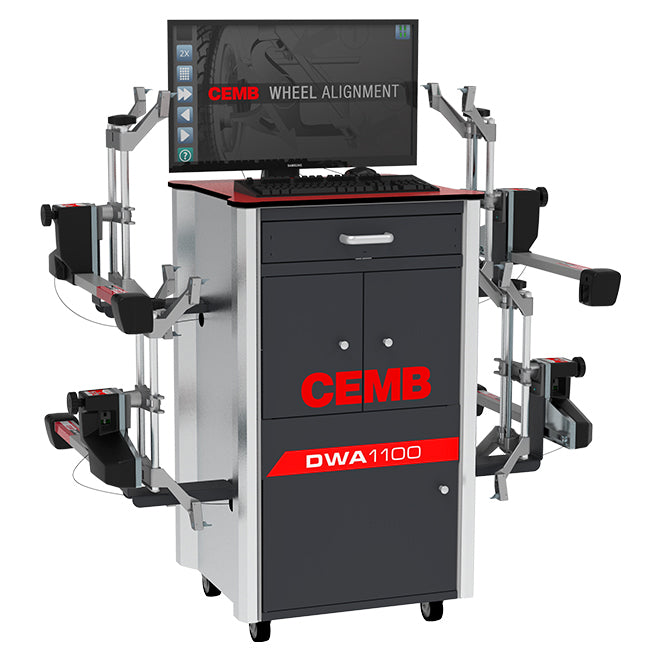

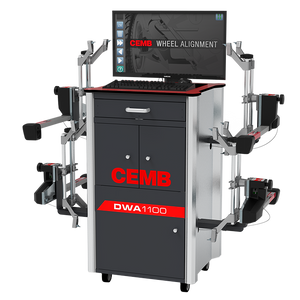

CEMB DWA1100 8-Sensor CCD Wireless Wheel alignment system for cars and light trucks. Unit complete with new cabinet, computer control system, sensors and all accessories required for alignment operations.
CCD (Charged Coupled Device) sensor technology, featuring state-of-the-art electronic components enables a quick and accurate measurement of all alignment parameters by simply following a procedure field tested through many years of experience.
FREE SHIPPING
Features Include
The new vehicle model ranking system allows a rapid and clear selection of the different vehicles.
The CEMB database contains more then 55.000 vehicles and is constantly updated.
Featuring a long durability when batteries are charged.
The batteries are immune to the “memory effect” and can be rechared at any time.
The radio communication between sensors and computer uses a frequency of 2,4 GHz. This technology features a stable and reliable communication over a lengthy period.
There are 7 different channel communications available which can be useful in cases of multiple installations and/or solving interference problems.
Together with the CCD cameras, the MEMS accelerometer (derived from the aeronautical field), provides the acquisition of the alignment parameters of wheels. It measures the sensor inclinations according to the two main axles (caster and camber).
The accelerometer has completely substituted the previous pendulum-type inclinometers which were very delicate and sensitive to shocks. No more problems due to shocks.
The system features an industrial type computer, Windows based, solid state SSD Sata, USB interface. No moving parts (DVD/CD) that can cause problems. Direct Shut-Down technology.
Features very clear and user-friendly graphics. The software system, entirely developed by CEMB, guides the user through all the alignment operations. Complete with AUDIT function for the identification of driving problems, resulting from measures not contemplated in the specifications to support the regulation service.
________________________________________
DWA cabinet, 27″ TFT monitor, colour printer, keyboard, mouse, industrial PC, with WINDOWS 10 operating system.
Two mechanical turnplates for car.
Four car measuring heads with Lithium batteries, 8 CCD sensors, BT2 technology and four 4-point clamps 12″-24″ c/w universal grips, L 80mm + metallic grips with reference surface , L48mm.
Brake pedal lock and steering lock
Wheel alignment software and database for CAR.
