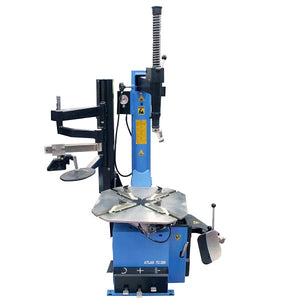

The Atlas® TC289LH is the perfect wheel clamp tire changer for most general automotive service departments and medium to large sized tire stores. The Atlas® TC289LH wheel clamp tire changer is capable of changing the majority of the expensive alloy and custom wheels found on today’ vehicles.
Finance Your Tire Changer Today. Apply Now.
FREE SHIPPING
Features include.
Specification include
| Atlas® TC289 LH Specifications | |
| Rims | Steel, Aluminum, Alloy |
| External Locking Rim Dimension (3 Positions) |
1) 11 7/8 26 (2 2) 2) 12 7/8 (1 7/8) 27 (2 3) 3) 13 3/4 (1 1 3/4) 28 (2 4) |
| Internal Locking Rim Dimension (3 Positions) |
1) 13 7/8 (1 1 7/8) 27 7/8 (2 3 7/8) 2) 14 5/8 (1 2 5/8) 28 7/8 (2 4 7/8) 3) 15 5/8 (1 3 5/8) 29 7/8 (2 5 7/8) |
| External Locking Rim Dimension (With Flip Adapters ATV Configuration) (3 Positions) |
1) 5 19 1/8 (1 7 1/8) 2) 5 7/8 20 1/8 (1 8 1/8) 3) 6 7/8 21 1/8 (1 9 1/8) |
| External Locking Rim Dimension (With Flip Adapters Motorcycle Configuration) (3 Positions) |
1) 15 (1 3) 29 1/8 (2 5 1/8) 2) 15 7/8 (1 3 7/8) 30 (2 6) 3) 16 7/8 (1 4 7/8) 31 (2 7) |
| Maximum Tire Diameter | 47 1/2 (3 11 1/2) |
| Operating Voltage | 110 V 1Ph |
| Maximum Wheel Width (Bead Breaker) | Position 1) 14 3/4 (1 2 3/4) Position 2) 18 1/2 (1 6 1/2) |
| Air Pressure | 90 110 psi |
| Bead Breaker | Pneumatic, 5,500 lb. Force |
| Oiler, Filter, Regulator | Included |
| Soap Reservoir | Included |
| Warranty | 1 Yr. Limited |
| 4 Black Plastic Rim Protectors | Included |
| Shipping Weight | 700 lb. |
