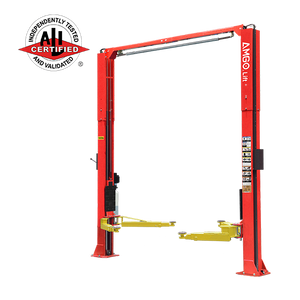

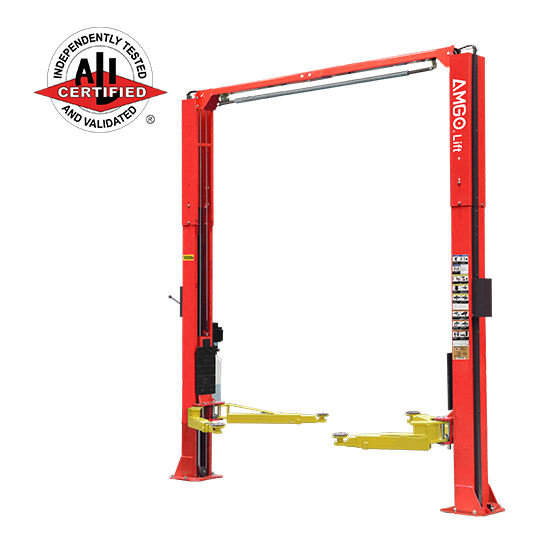

AMGO® OH-10 ALI Super-Asymmetric® 2 Post Auto Lift 10,000-lb Capacity

The AMGO ALI Certified OH-10 is the perfect choice for those customers who want the most lifting capacity at the lowest possible price. The AMGO OH-10 can be adjusted to two different height settings: 142 1/2" or 150 1/2".

AMGO Hydraulics has designed the NEW ALI Certified OH-10 2-Post auto lift super asymmetric arms to load different vehicles in an asymmetric or symmetric configuration. Included self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.

Optional Accessories Available

Finance Your Auto Lift Today. Apply Now.


Features Include:

Specifications Include:

Model OH-10
Lifting Capacity 10,000 lbs (4,536 kg)
Lifting Time 57 S
A: Lifting Height 71 1/2″ ~ 80 1/2″ (1815~2044mm)
B: Overall Height 142 1/2″ /150 1/2″ (3621/3821mm)
C: Overall Width 135″ (3428mm)
D: Drive Thru Clearance 99 1/2″ (2528mm)
E: Width Between Columns 112 1/4″ (2850mm)
F: Minimum Pad Height 3 1/2″ (90mm)
Motor 2.0HP / 220V/60Hz, Single Phase
Gross Weight 1,623 lbs (736 kg)
