AMGO® OH-12S Heavy Duty 2 Post Auto Lift 12,000-lb Capacity

AMGO OH-12S Short 2-post auto lift is developed by AMGO. The OH-12S is the ideal choice for shops and service centers with limited ceiling height. With 3-stage arms that will work for long and short wheelbase trucks. And heavy-duty construction, self-lubricating bushings, sliders and high-quality parts to make the lifts with almost no maintenance required. The warranty time of the lifts is 5-years for steel construction, 3 years for hydraulic parts, and 2 years for electrical components.

AMGO Heavy-duty two post lifts are the best choice for heavy-duty vehicles or trucks for fleet service and commercial shops. AMGO Two Post Lifts are manufactured on high quality standards by using critical material, advance features and innovated technology.

Finance Your Auto Lift Today. Apply Now.

Free Shipping

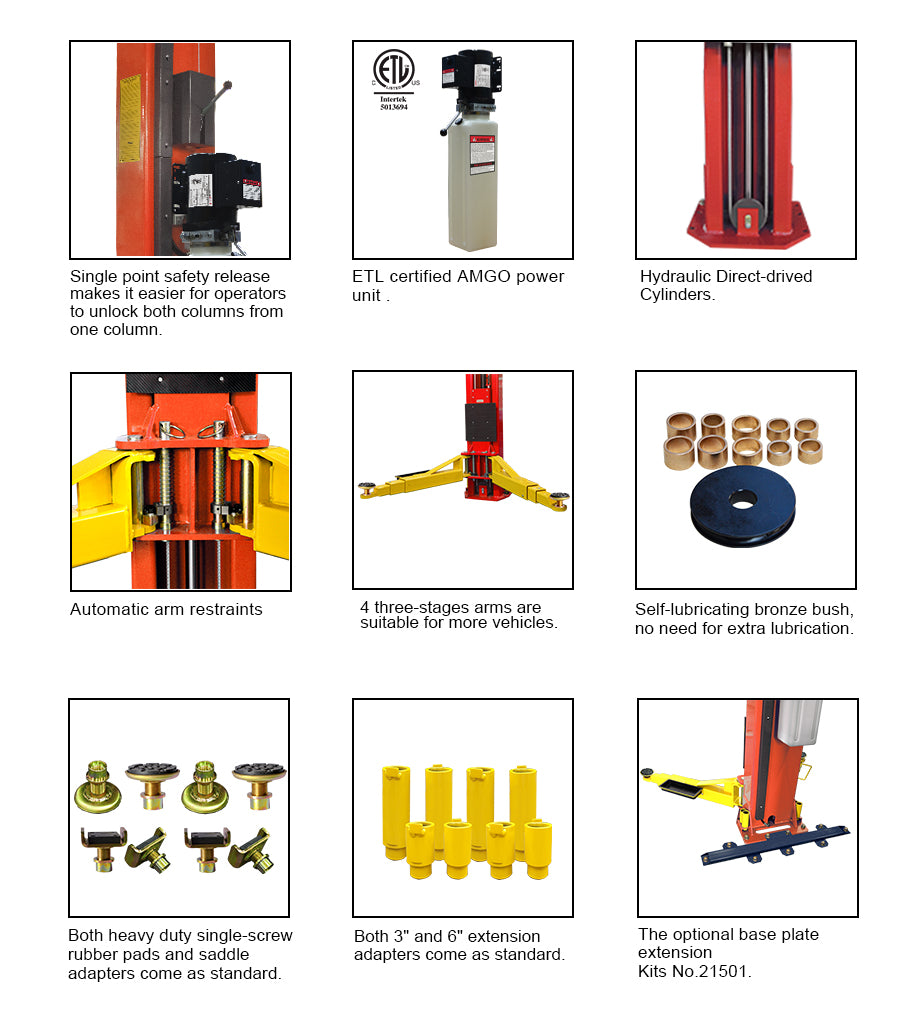

Features Include:

  • Lifting capacity: 12,000 lbs;
  • Dual hydraulic direct-drived cylinders made on high standard;
  • 4 three-stage arm design allows to lift vehicles from short to long wheel base;
  • Single-point manual safety lock release, simultaneously unlock both columns from one side;
  • Clear-floor design, provide unobstructed floor use;
  • Overhead safety shut-off device prevents vehicle damage;
  • Exclusive: adjustable three height setting accommodates varying service ceiling heights;
  • Self-lubricating UHMW polyethylene sliders
  • Automatic arms restraint;
  • Areo sync cables come as standard;
  • Comes with detachable toe guard and tool tray;
  • Heavy-duty singe-screw rubber pad ( pin dia 2” ) with both 3” and 6” extension adapters.
  • Optional LED Light Kit, 20101
  • OPTIONAL CRADLE/SADDLE PADS SOLD SEPERATLY _ 21103, $59.00 (1 piece)

Specifications

Model OH-12S
Lifting Capacity 12,000 lbs (5,443 kg)
Lifting Time 69S
A:Lifting Height 72 1/2″ ~ 81 1/2″ (1842~2071mm)
B:Overall Height 143 1/8″/155 1/8″/167 1/8″ (3635/3940/4245mm)
C:Overall Width 150 3/4″ (3829mm)
D:Drive-Thru Clearance 109 3/4″ (2787mm)
E:Width Between Columns 123 1/2″ (3137mm)
F:Minimum Pad Height 4 1/2″ (115mm)
Motor 2.0HP/220V/60Hz,Single Phase
Gross Weight 2,174 lbs (986 kg)
