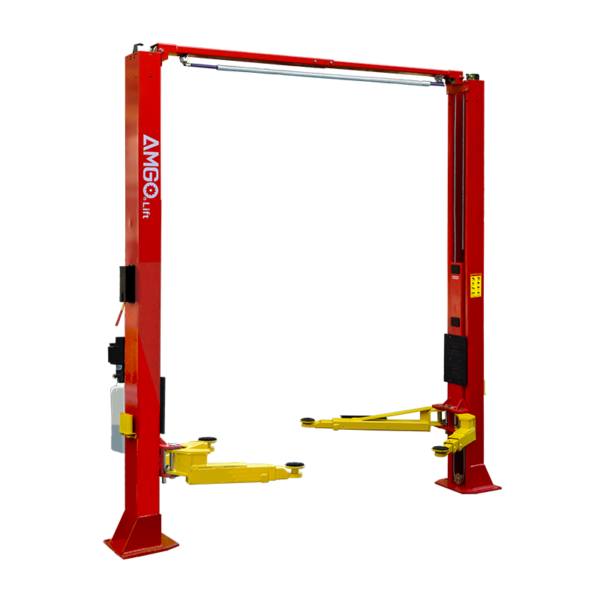

AMGO® OHX-10 Super-Asymmetric® Arms, 2 Post Auto Lift 10,000-lb Capacity

The OHX-10 is designed with super asymmetric arms that can be configured with symmetric and asymmetric. The very long carriages design makes the lift working much smoothly and reliable. The top beam is designed to be adjusted in length, so it is easy to install the OHX-10 with about 6″ wider by using the width extension kits.

AMGO Hydraulics has designed the OHX-10 2-Post auto lift super asymmetric arms to load different vehicles in an asymmetric or symmetric configuration. Included self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.

Optional Accessories Available

Finance Your Auto Lift Today. Apply Now.

Free Shipping - CALL FOR BEST PRICE - (844-536-6505)

Features Include:

  • Dual direct drive hydraulic cylinders made to high standards.
  • Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration
  • Single point safety release, allows the operator to disengage both columns simultaneously
  • Self lubricating UHMW Polyethylene sliders and bronze bushings
  • Clear floor design, provides unobstructed floor use
  • Single piece column allowing for easier installation
  • Stackable rubber pads and 1.5″, 2.5″, 5″
  • Width adjustable kit optional. Part #21004
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Specifications Include:


Model OHX-10
Lifting Capacity 10,000 lbs (4,536 kg)
Lifting Time 57S
A: Lifting Height 71 1/2″ ~ 80 1/2″ (1815~2044mm)
B: Overall Height 144″ (3658mm)
C: Overall Width 135″ / 140 7/8″ (3428/3578mm)
D: Drive Thru Clearance 99 1/2″ / 105 1/2″ (2528/2678mm)
E: Width Between Columns 112 1/4″ / 118 1/8″ (2850/3000mm)
F: Minimum Pad Height 3 1/2″ (90mm)
Motor 2.0HP/220V/60Hz, Single Phase
Gross Weight 1,620 lbs (735 kg)
