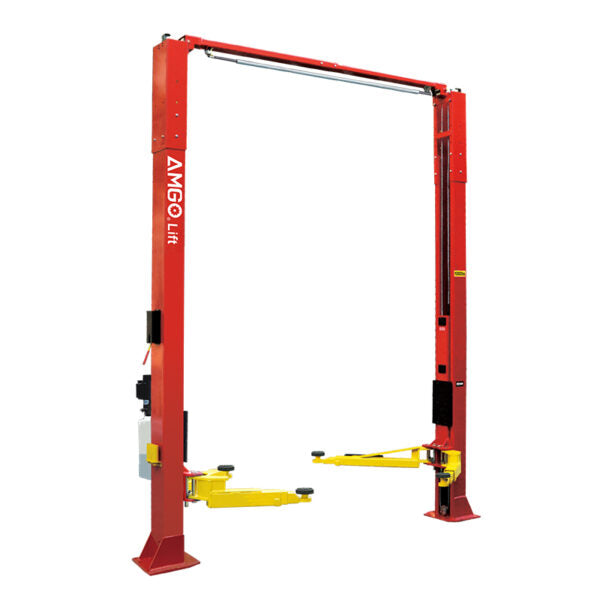

AMGO® OHX-10H Tall Super-Asymmetric® 2 Post Auto Lift 10,000-lb Capacity

The OHX-10H is the extremely high lifting model with lifting height up to 78 3/4″ ~ 87 3/4″. Height & Width adjustment. The lift is designed with super asymmetric arms and share many same features as model OHX-10.

AMGO Hydraulics has designed the OHX-10H 2-Post auto lift super asymmetric arms to load different vehicles in an asymmetric or symmetric configuration. Included self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.

Finance Your Auto Lift Today. Apply Now.

Free Shipping - CALL FOR BEST PRICE - (844-536-6505)

Features Include:

  • Dual direct drive hydraulic cylinders made to high standards
  • Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration
  • Single point safety release, allows the operator to disengage both columns simultaneously
  • Self-lubricating UHMW Polyethylene sliders and bronze bushings
  • Clear floor design, provides unobstructed floor use
  • Single piece column allowing for easier installation
  • Stackable rubber pads and 1.5″, 2.5″, 5″
  • Adjustable heights and width
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
  • Optional LED Light Kit, 20101

 Optional Width Extension Kits With these kits the width between posts is adjusted from 2850mm(112-1/4″) to 3000mm(118-1/8″) Kits No.: 21004(OHX-10) Kits No.: 21005(OHX-10H)

  • Specifications Include:

Model OHX-10H
Lifting Capacity 10,000 lbs (4,536 kg)
Lifting Time 63 S
A: Lifting Height 78 3/4″ ~ 87 3/4″ (2000~2229mm)
B: Overall Height 157″~168″ (3988~4267mm)
C: Overall Width 135″ / 140 7/8″ (3428/3578mm)
D: Drive Thru Clearance 99 1/2″ / 105 1/2″ (2528/2678mm)
E: Width Between Columns 112 1/4″ / 118 1/8″ (2850/3000mm)
F: Minimum Pad Height 3 1/2″ (90mm)
Motor 2.0HP / 220V/60Hz, Single Phase
Gross Weight 1,744 lbs (791 kg)
