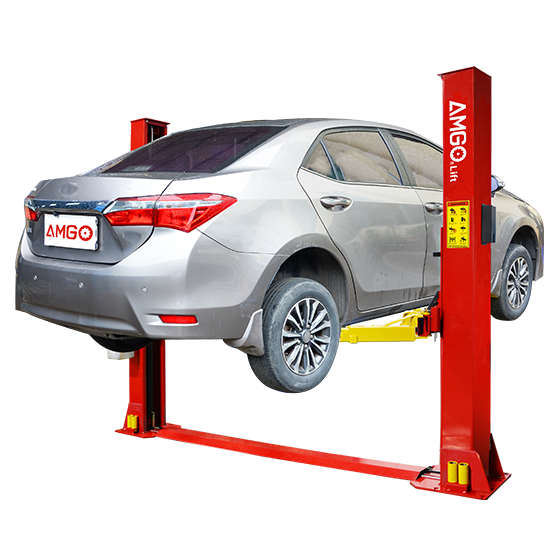

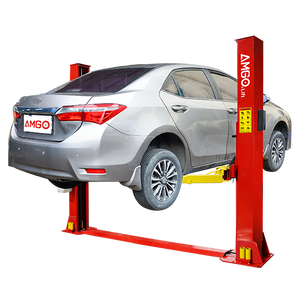

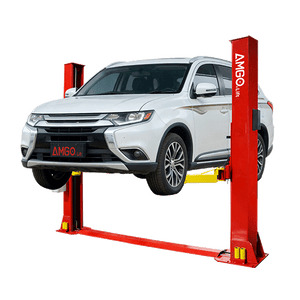

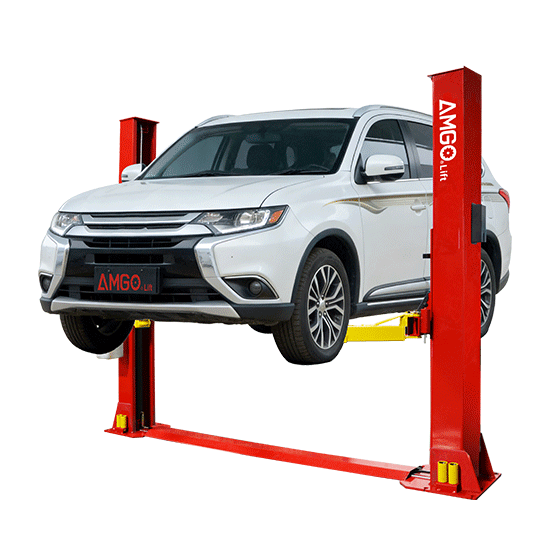

AMGO® BP-9 Base-Plate 2 Post Auto Lift, 110Volt Power Unit

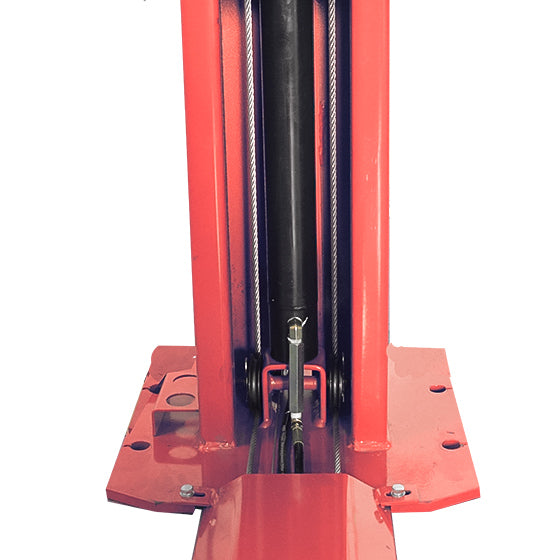

The AMGO BP-9 is equipped with a dual safety lock structure and a single-point manual lock release mechanism, ensuring both safe and comfortable operation. The base plate design provides shorter columns to accommodate ceiling height 9ft or higher. Its symmetric 3-stage retractable arms offer large swing ranges to accommodate varying vehicles weighing up to 9000lbs.

Finance Your Auto Lift Today. Apply Now.

Free Shipping

Features Include:

• Lifting capacity: 9,000 lbs;

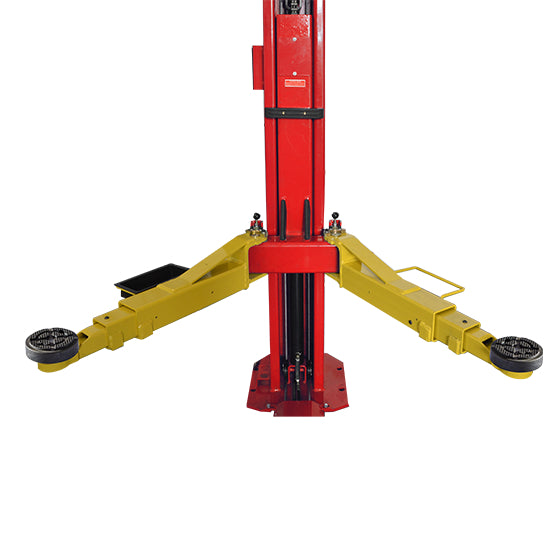

• Four 3-stage symmetric retractable arms fit more vehicles;

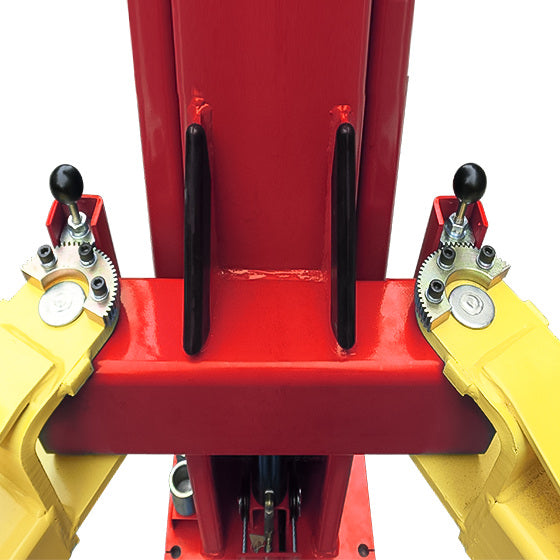

• Automatic arms restraint;

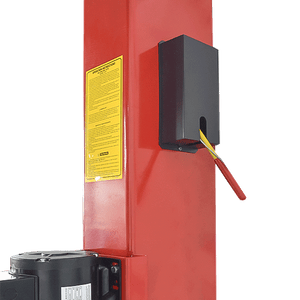

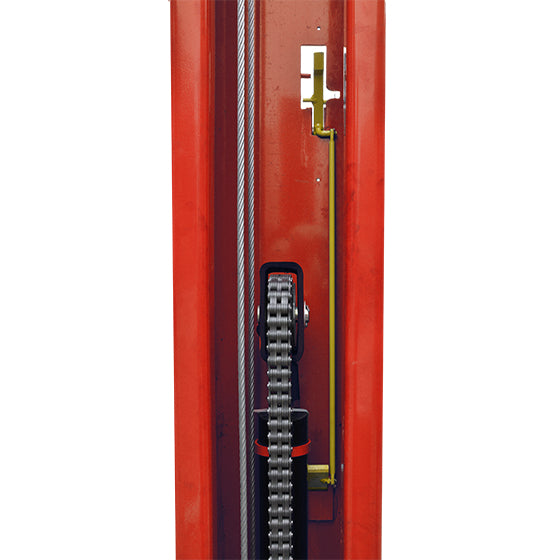

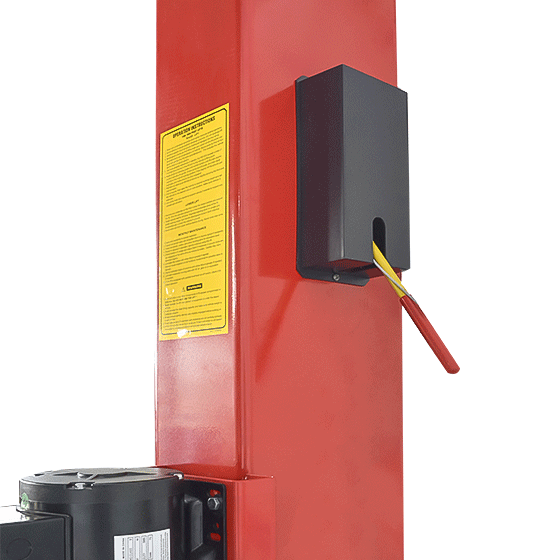

• Single-point manual safety lock release that simultaneously unlocks both columns from one side;
• Dual-safety lock structure guarantees more security;
• Self-lubricating UHMW polyethylene sliders;
• Areo sync cables come standard.

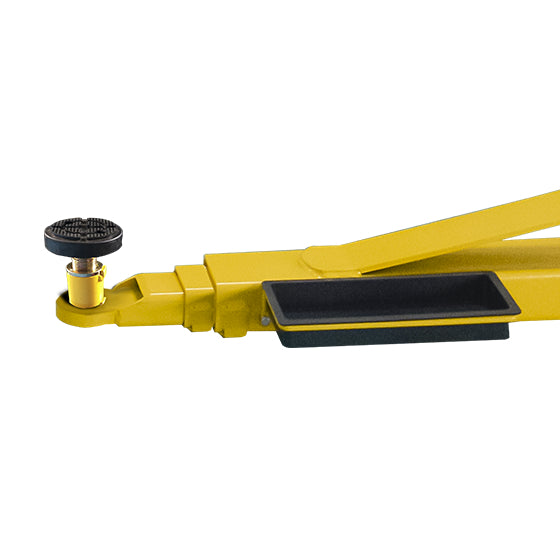

• Comes with detachable toe guard and tool tray;

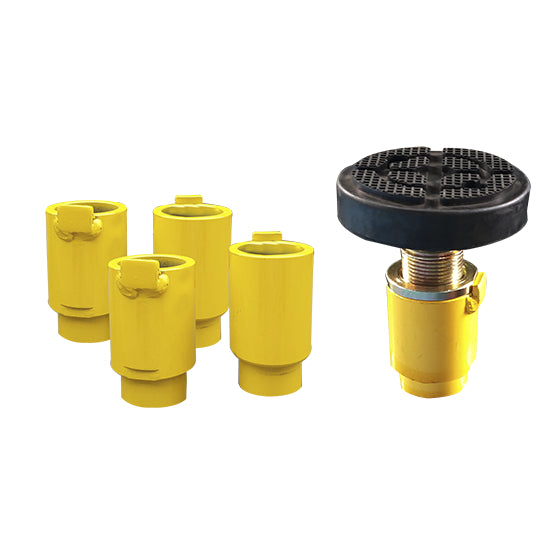

• Standard single-screw rubber pad (pin dia 1 1/2”) with 3” extension adapters.

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
• Optional LED Light Kit, 20101
• OPTIONAL CRADLE/SADDLE PADS SOLD SEPERATLY,

Specifications

Model BP-9		Base plate two post lift
Lifting Capacity		9,000 Ibs
Lifting Time		37s
Max. Lifting height: (w/o extension adapter)	A	71 1/4"~72 1/2"
Max. Lifting height: (w/ extension adapter)		74 3/16"~75 1/2"
Max. lock height: (w/o extension adapter)		69 5/8″~70 15/16"
Max. lock height: (w/ extension adapter)		72 5/8"~73 7/8"
Overall Height	B	108"
Overall Width	C	131 7/8"
Drive-Thru Clearance	D	99"
Width Between Columns	E	109 7/16"
Minimum Pad Height	F	3 5/16"
Gross Weight		1,321 Ibs

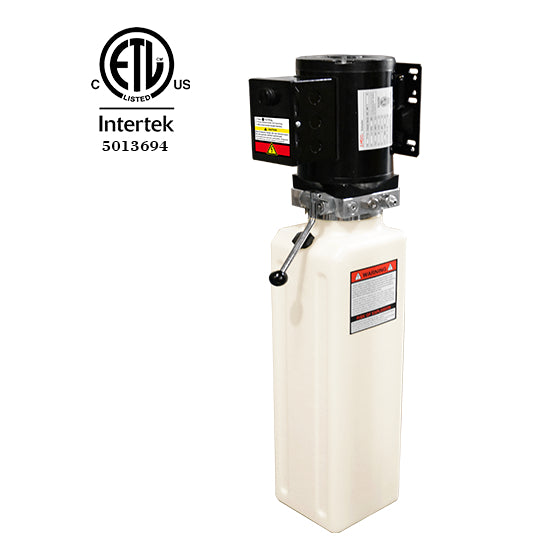

Motor		2.0HP
