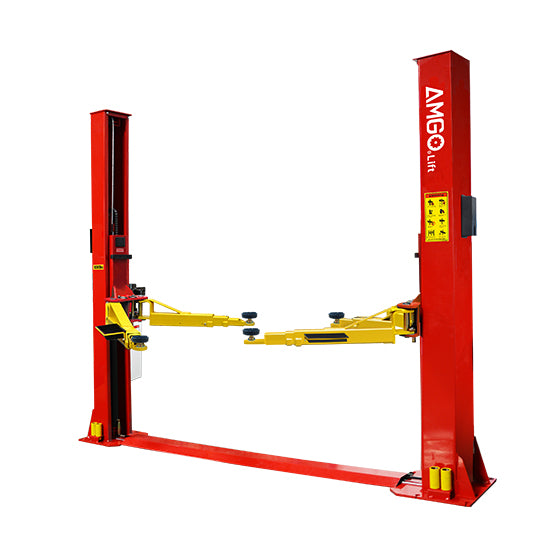

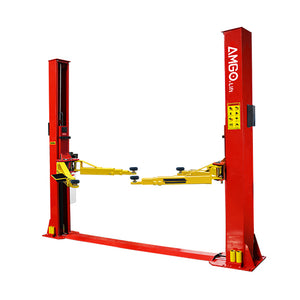

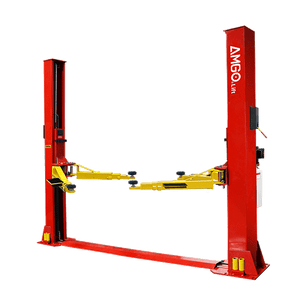

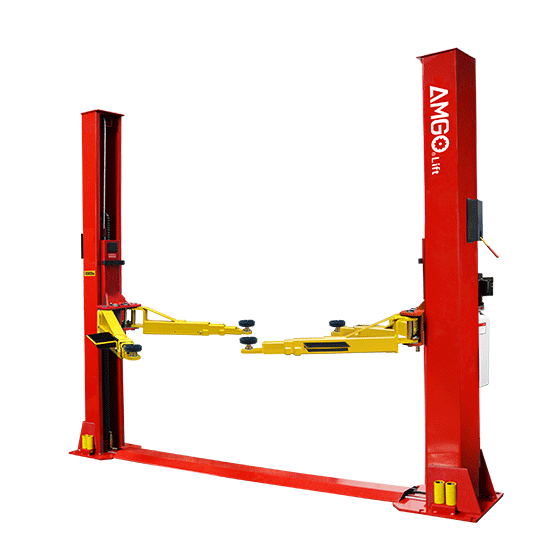

AMGO® BP-9X Base-Plate 2 Post Auto Lift 9,000-lb Capacity

The AMGO BP-9X is a baseplate two-post lift designed for low ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet. The BP-9X features symmetric arms, and automatic arm restraints. The BP-9X also has a single point release switch to make it easier to unlock both column locks from one column.

Finance Your Auto Lift Today. Apply Now.

Free Shipping

Features Include:

• Lifting capacity: 9,000 lbs;
• Commercial grade with a strong structure, designed for professional workshops and home garages;

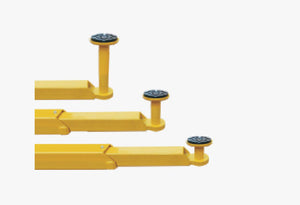

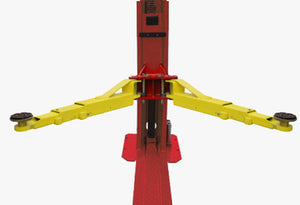

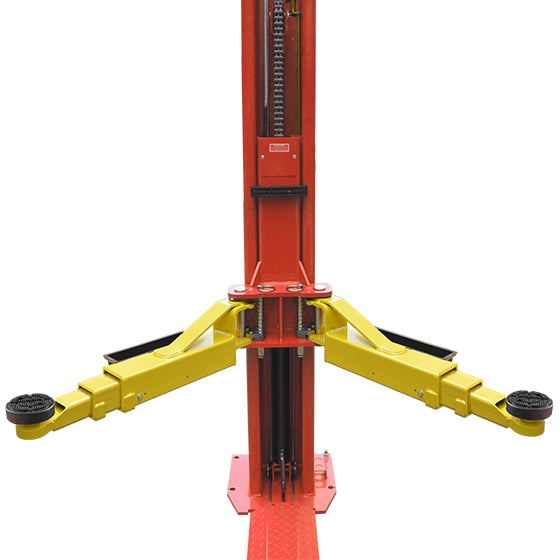

• Four 3-stage symmetric retractable arms fit more vehicles;

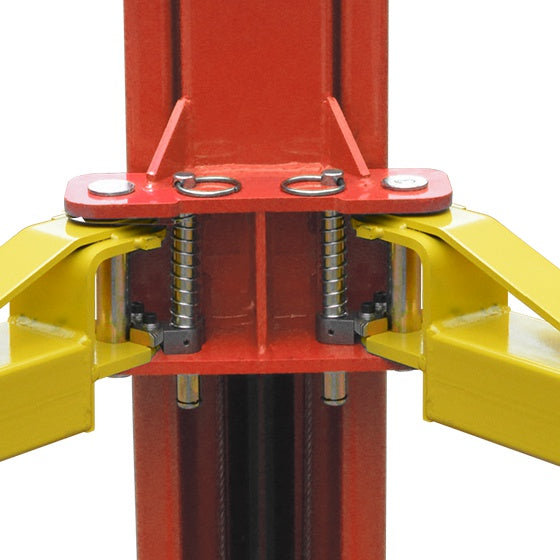

• Automatic arms restraint;

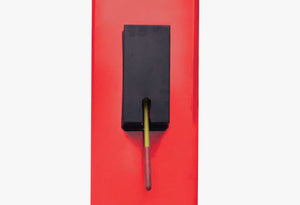

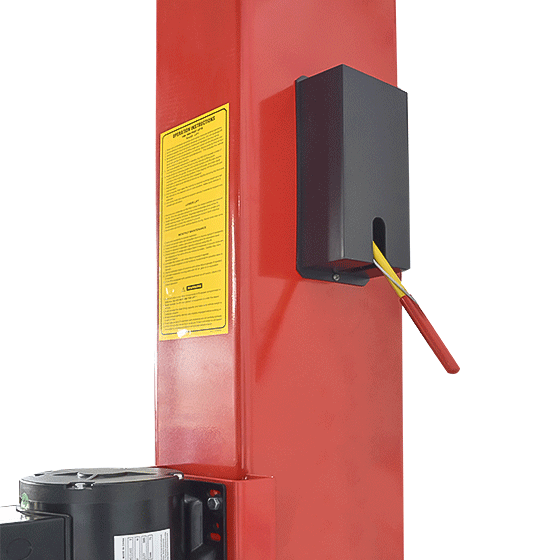

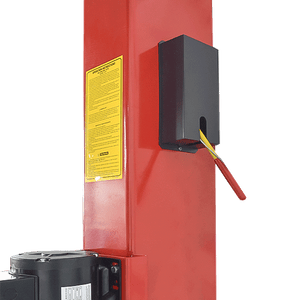

• Single-point manual safety lock release that simultaneously unlocks both columns from one side;

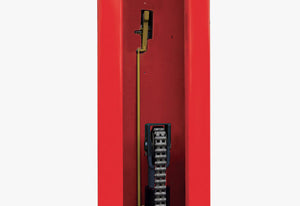

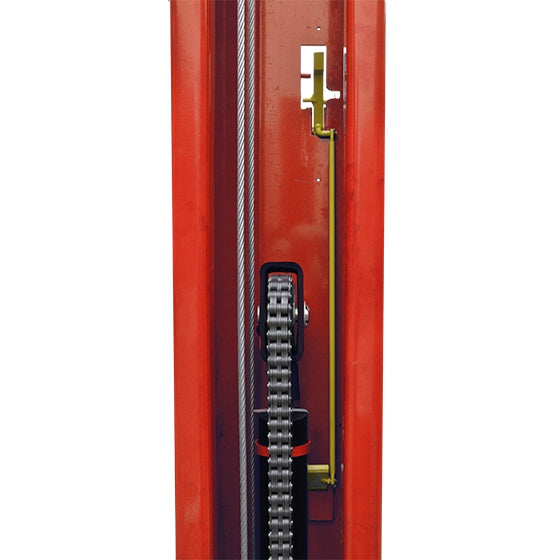

• Dual-safety lock structure guarantees more security;
• Self-lubricating UHMW polyethylene sliders;
• Areo sync cables come standard;

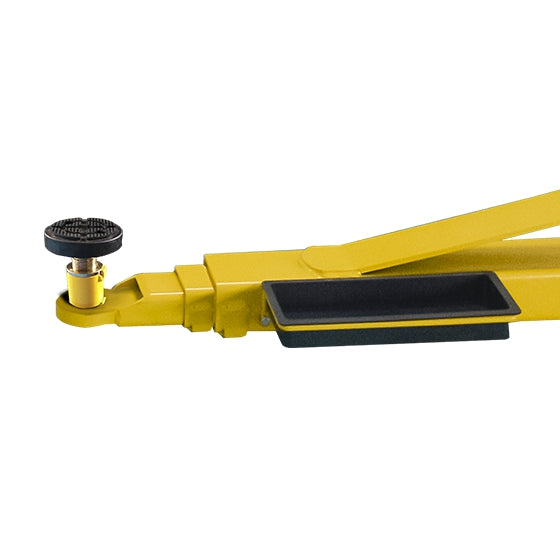

• Toe guards and tool trays come standard;

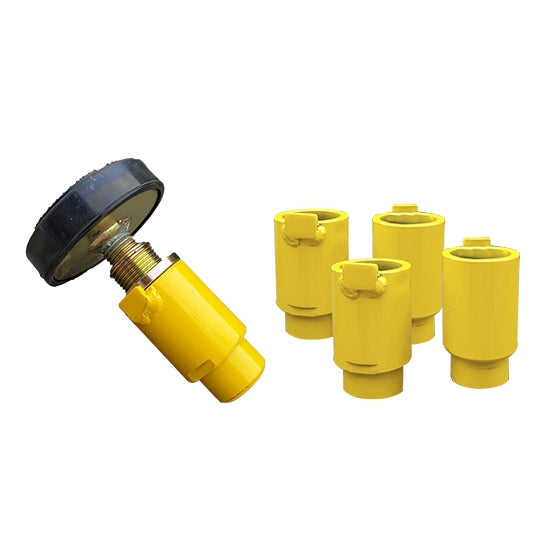

• Standard double-screw rubber pad ( pin dia 2″ ) with 3” extension adapters.

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
• Optional LED Light Kit, 20101

• Specifications



  Model BP-9X		Base plate two post lift
  Lifting Capacity		9,000 Ibs
  Lifting Time		49s

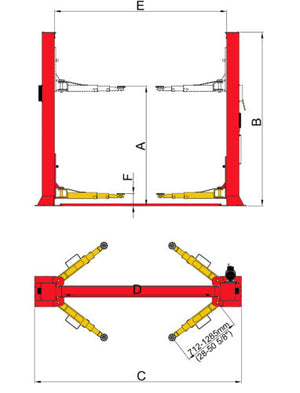

  Max. Lifting height: (w/o extension adapter)	A	76 3/8"~78 1/4"
  Max. Lifting height: (w/ extension adapter)		79 3/8"~81 1/4"
  Max. lock height: (w/o extension adapter)		74 13/16“~76 11/16"
  Max. lock height: (w/ extension adapter)		77 13/16"~79 11/16"
  Overall Height	B	111 7/8"
  Overall Width	C	136 1/4"
  Drive-Thru Clearance	D	100 13/16”
  Width Between Columns	E	112 1/4"
  Minimum Pad Height	F	3 9/16"
  Gross Weight		1,563 Ibs

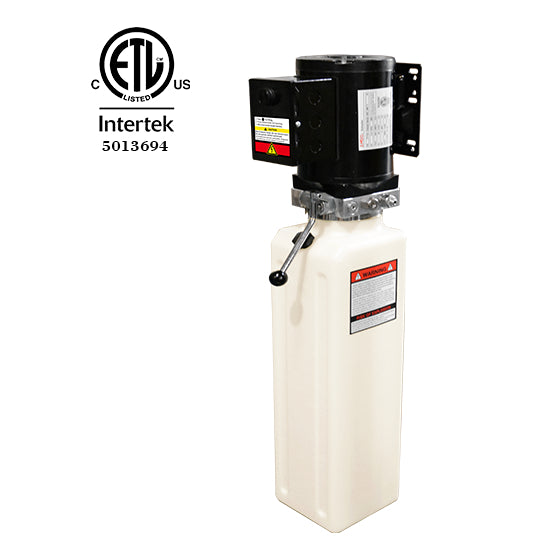

  Motor		2.0HP
  QTY of Container		20 Units / 20'GP
