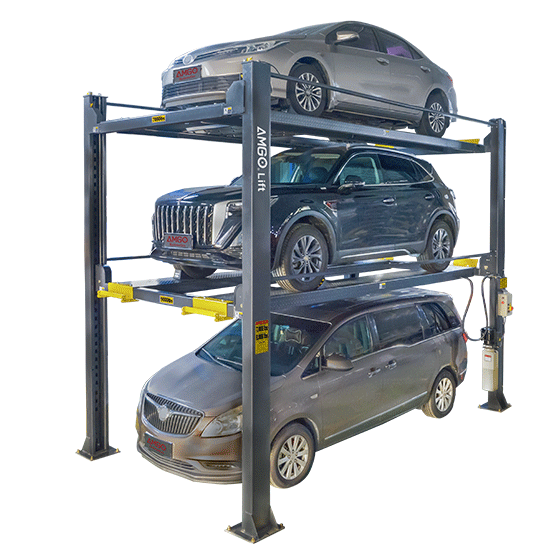

The revolutionary AMGO 409-HPX redefines multi-vehicle storage. By eliminating bulky structures in favor of an embedded-platform design, it maximizes space without sacrificing strength. Featuring proprietary multi-functional ramps, a double-lock safety system, and intuitive fingertip controls, the 409-HPX delivers unmatched ease of use and parking convenience.
9,000-lb. / 7,000-lb Capacity/ Triple Parking lifts
ADDITIONAL FREIGHT COST MAY APPLY

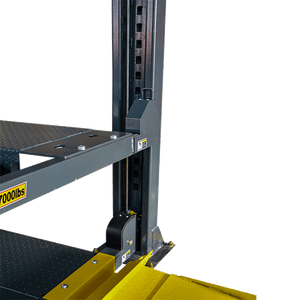

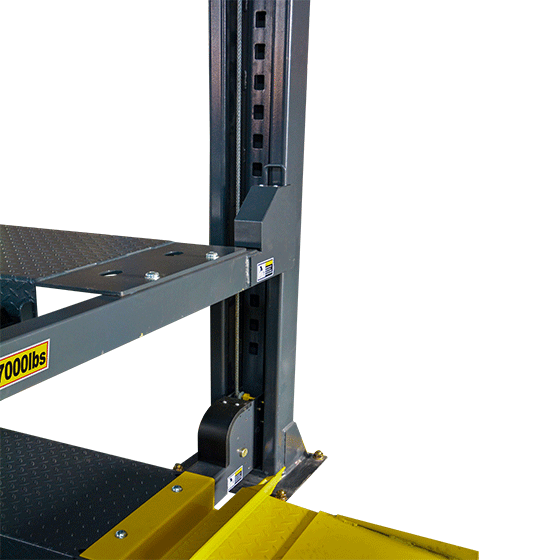

● The patented design of 4097X features double safety locks for both lower and upper platforms.
● Capacity: 7,000lbs for upper platforms, 9,000lbs for lower platforms.

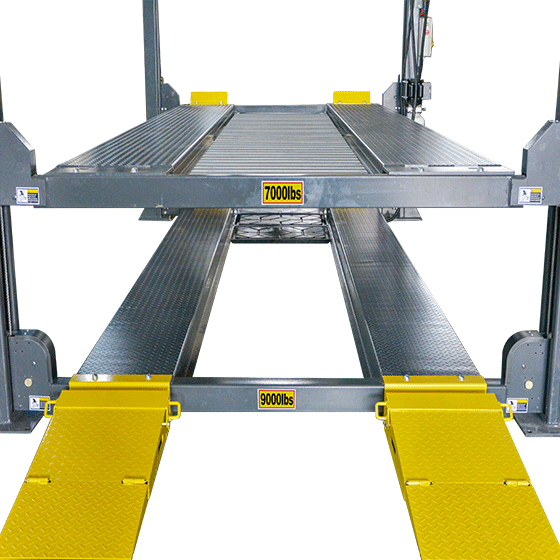

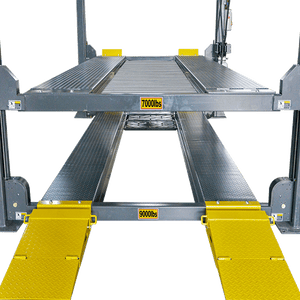

● Embedded platform design allows one set of drive-in ramps to serve both lower and upper platforms, minimum height just 7 1/16”;
● Safety control devices protect the vehicle from collision during lifting of the lower platforms, and prevent the upper platforms separating from the lower platforms when carrying the upper platforms down.

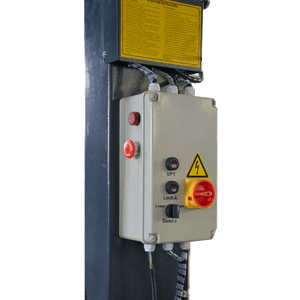

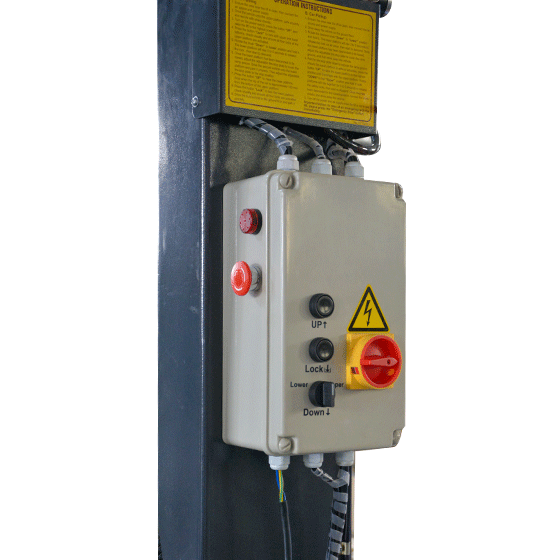

● Effortless fingertip push lock release operation.
● 220V/60HZ Single Phase power unit, ETL Certified.

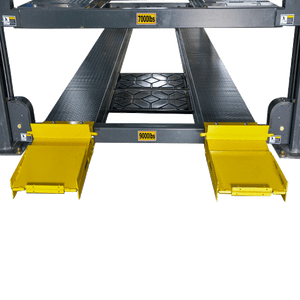

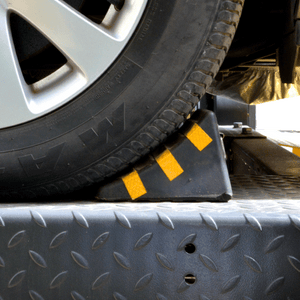

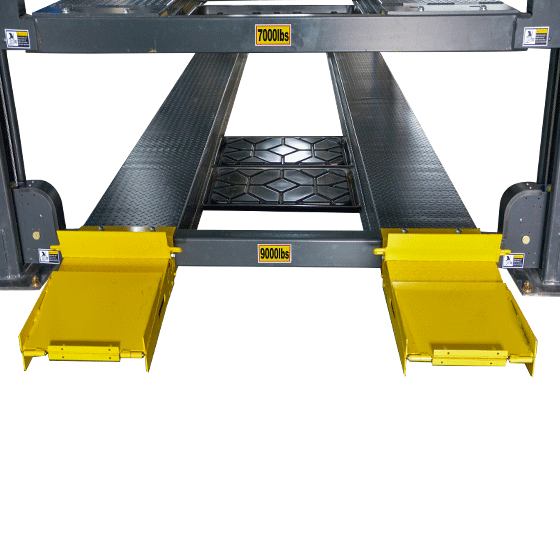

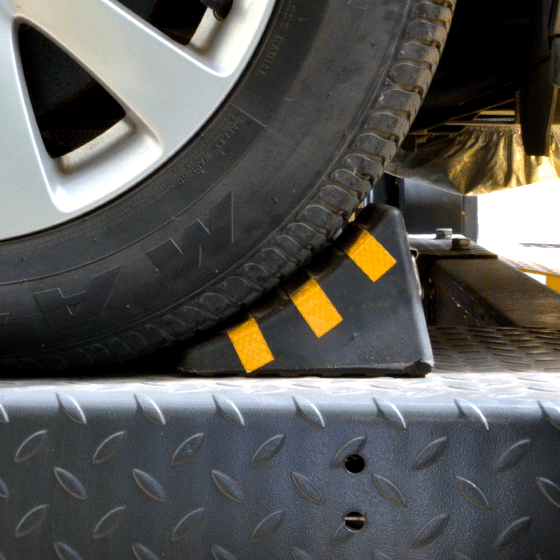

● Proprietary drive-in ramps function as both tire stop and drive-on ramp, with quick assembly and disassembly.

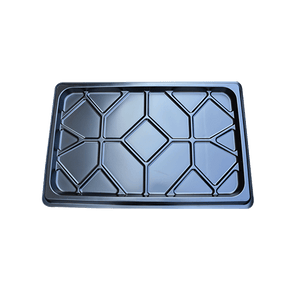

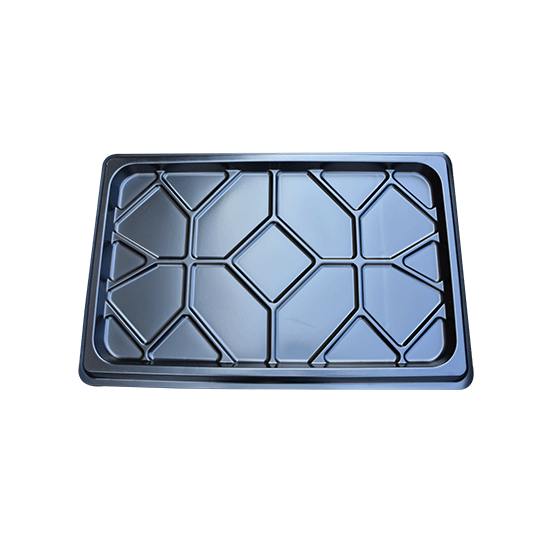

OPITIONAL: 40806, DRIP TRAYS
OPITIONAL: 40812, STORAGE WAVE PANELS
| Model | 4097X | |
|---|---|---|
| Lifting Capacity | Upper:7,000lbs Lower:9,000 Ibs |
|
| Lifting Time | 104s | |
| Overall Length (Inc Ramps) | A | 247 9/16" |
| Outside Edge of Crossbeams | B | Upper:197 13/16" Lower: 204 1/16" |
| Overall Width | C | 113 15/16" |
| Width Between Posts | D | 96" |
| Drive Throu Clearance | E | 82 1/16" |
| Overall Height | F | 170 1/16" |
| Minimum Height | G | 7 1/16" |
| Max. Lifting Height | H | 158 3/8" |
| Max. Lock Height to Top of Runway | 155 3/8" | |
| Max. Height Underneath Runway | I | 152 15/16" |
| Max. Lock Height Underneath Runway | 150" | |
| Width Between Runways | J | Upper: 37" Lower: 38 3/16" |
| Overall Width of Single Parking Unit | K | Upper: 78 3/4" Lower: 75 9/16" |
| Gross Weight | 4,246 lbs | |
| Motor | 2.0HP |
