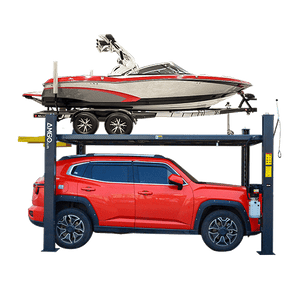

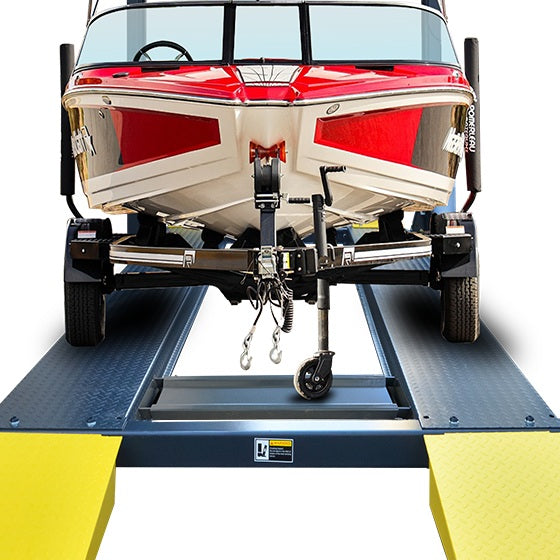

AMGO Boat Storage 4-Post Auto Lift 408-HPX 8,000-lb Capacity

AMGO Boat Storage 4-Post Auto Lift 8,000-lb Capacity. AMGO 408-HPX Commercial Grade Four Post Boat Parking Lift. Simpler than ever, the 408-HPX revolutionizes the way you store your recreational boats. It features a two-widths setting and delivers a spacious drive-in clearance over 110”, ensuing the perfect fit for a variety of trailers.

ADDITIONAL SHIPPING FEES MAY APPLY

Features

• Lifting capacity: 8,000lbs.

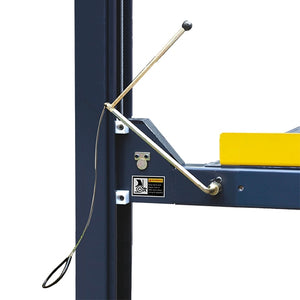

• AMGO’s proprietary concealed lock-control device with a manual single-point release (no air source required).

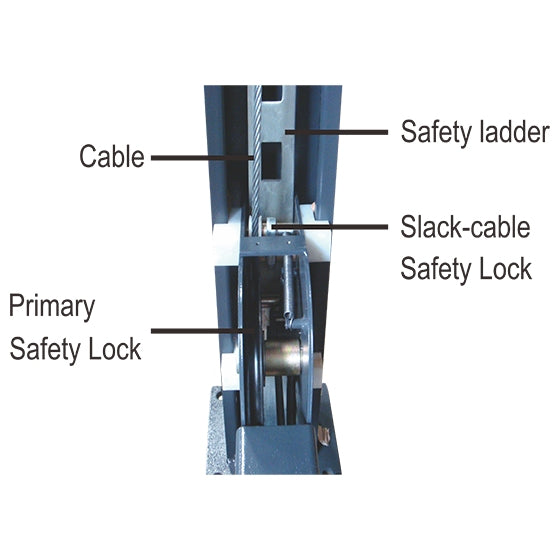

• Dual safety mechanisms with primary safety locks and cable-slack protection.
• Integrated non-skid diamond platforms.

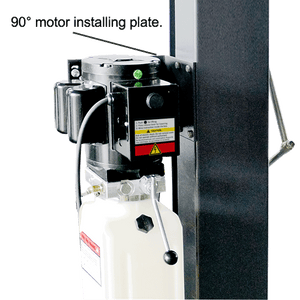

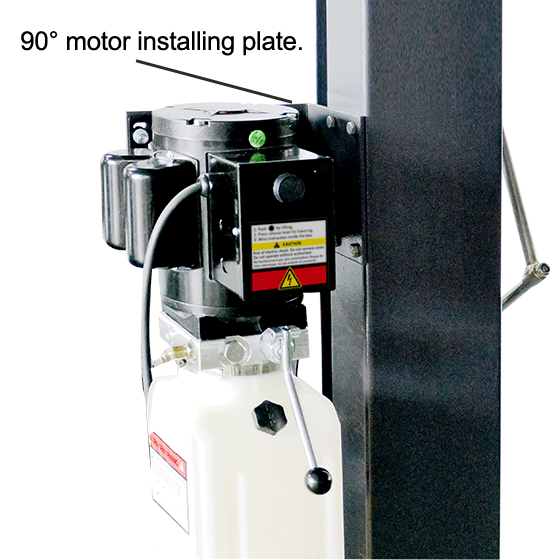

• Flexible installation with the power unit mountable at any corner.
• Two-widths setting platforms accommodates various trailers.

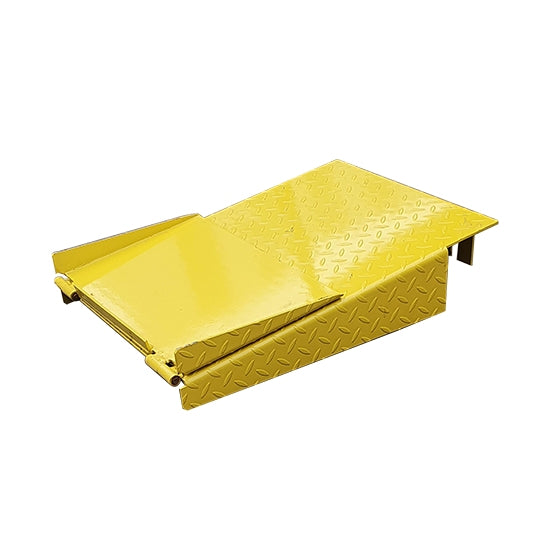

• Standard foldable drive-in ramps.
• ETL certified Power unit.

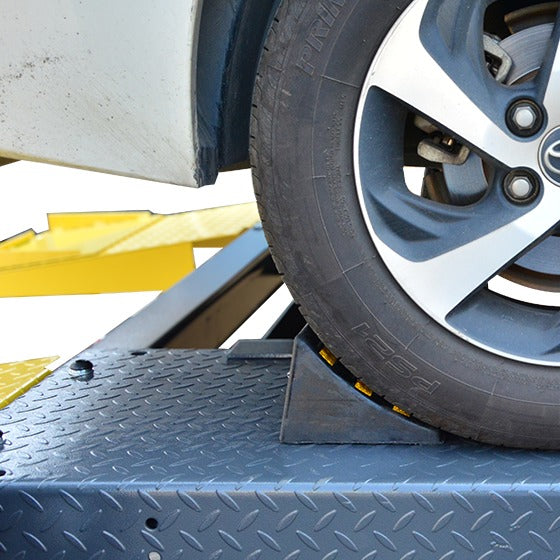

• Optional rubber wheel chock. P/N: 40811

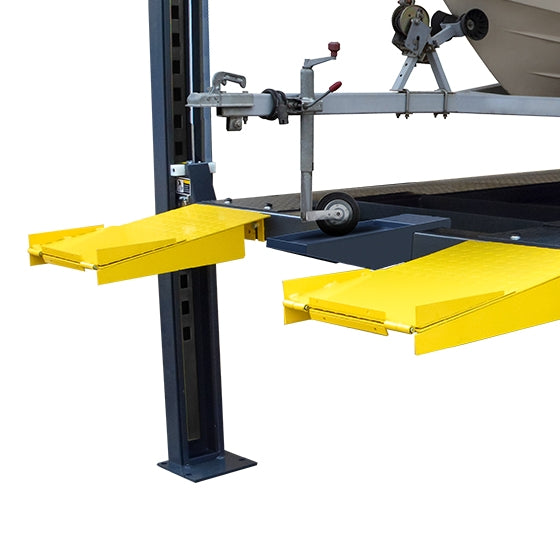

• Optional trailer extended platform adds an extra 24" in length. Kits No.: 40818

Specifications

Model 408-HPX		Boat storage lift
Lifting Capacity		8,000 lbs
Lifting Time		46s
Overall Length (Inc Ramps)	A	222 1/8"
Overall Length (Without Ramps)	B	188 9/16"
Overall Width	C	131 7/8"
Width Between Posts	D	122 3/16"
Max. Lifting Height	E	87 11/16"
Max. Locking Height		84 15/16"
Overall Height	F	96 5/8"
Minimum Height	G	5 11/16"
Max. Underneath Height	H	82 15/16"
Max. Lock Underneath Runway		80 3/16"
Drive-Thru Clearance	I	111"
Width Between Runways	J	46 1/2" - 66 3/8"
Outside Edge of Runways	K	83 7/8" - 103 3/4"
Gross Weight		1,585 lbs
Motor		2.0HP,220V/60Hz
