AMGO Boat Storage 4-Post Auto Lift 408HLX 8,000-lb Capacity

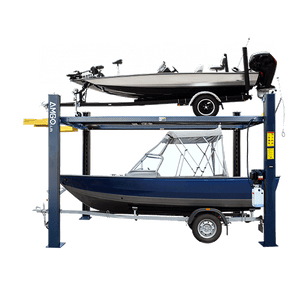

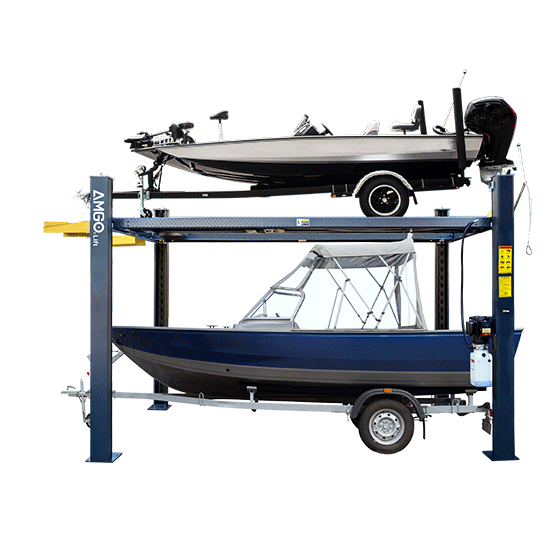

AMGO Boat Storage 4-Post Auto Lift 8,000-lb Capacity. AMGO 408HLX Commercial Grade Four Post Boat Parking Lift. Tailored for over-height boats, 408HLX packs all the advantages of 408HLX and features an extended-height design, providing extra headroom for your over-height boats.

ADDITIONAL SHIPPING FEES MAY APPLY

Features

• Lifting capacity: 8,000lbs;

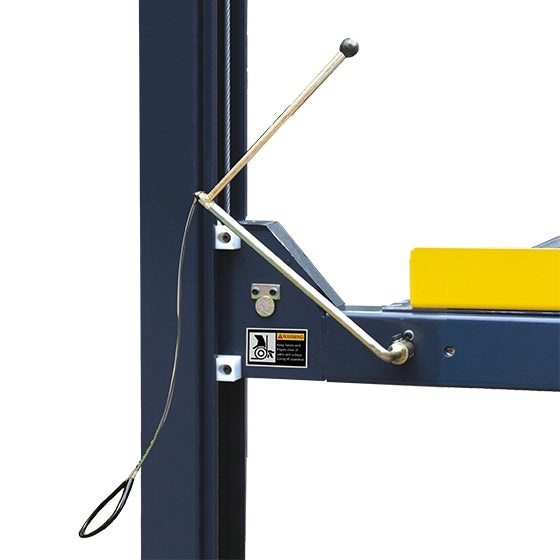

• AMGO’s proprietary concealed lock-control device with a manual single-point release ( no air source required);

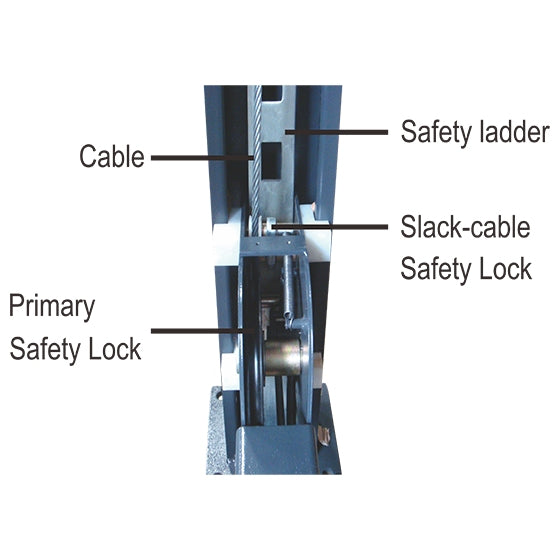

• Dual safety mechanisms with primary safety locks and cable-slack protection;
• Integrated non-skid diamond platforms;

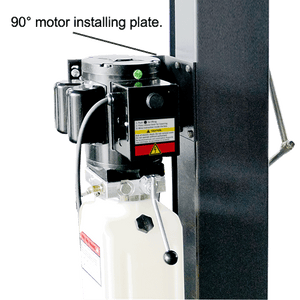

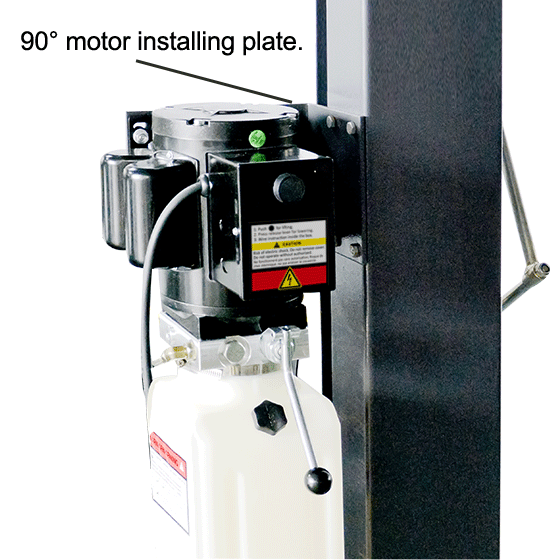

• Flexible installation with the power unit mountable at any corner;;

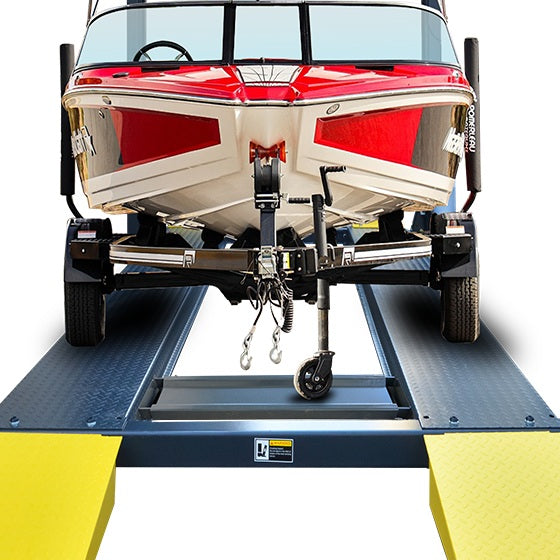

• Two-widths setting platforms accommodates various trailers;

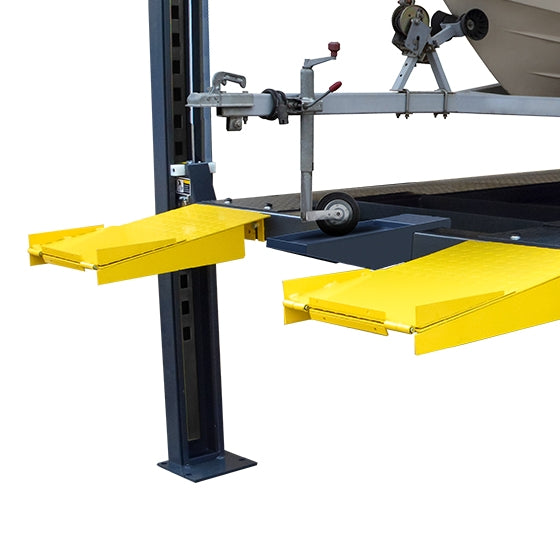

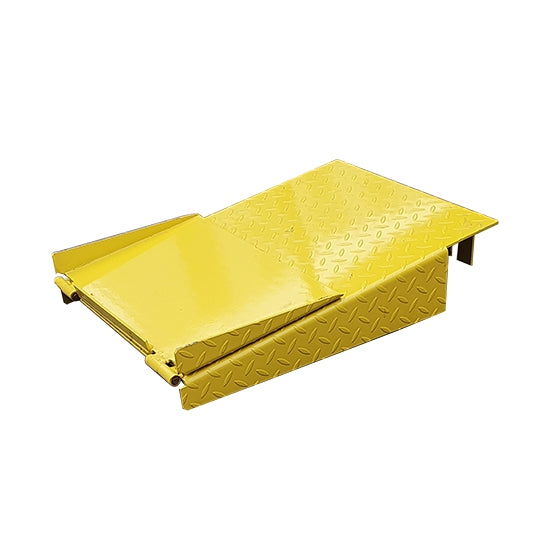

• Standard foldable drive-in ramps;
• ETL certified Power unit;
• 15 3/4″ higher than 408-HPX, ideal for boats with extremely height.

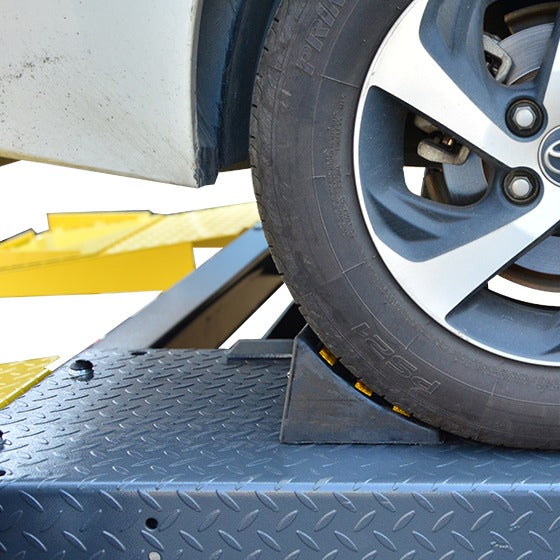

• Optional rubber wheel chock. P/N: 40811

• Optional trailer extended platform adds an extra 24" in length. Kits No.: 40818

Specifications

Model 408HLX		Boat storage lift
Lifting Capacity		8,000 lbs
Lifting Time		54s
Overall Length (Inc Ramps)	A	222 1/8"
Overall Length (Without Ramps)	B	188 9/16"
Overall Width	C	131 7/8"
Width Between Posts	D	122" 3/16"
Max. Lifting Height	E	104 11/16"
Max. Locking Height		101 15/16"
Overall Height	F	113"
Minimum Height	G	5 11/16"
Max. Underneath Height	H	99 15/16"
Max. Lock Underneath Runway		97 3/16"
Drive-Thru Clearance	I	111"
Width Between Runways	J	46 1/2" - 66 3/8"
Outside Edge of Runways	K	83 7/8" - 103 3/4"
Gross Weight		1,726 lbs
Motor		2.0HP,220V/60Hz
QTY of Container		12 Units/20'GP
