AMGO Boat Storage 4-Post Auto Lift 409-HPX 9,000-lb Capacity

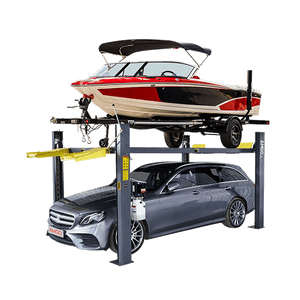

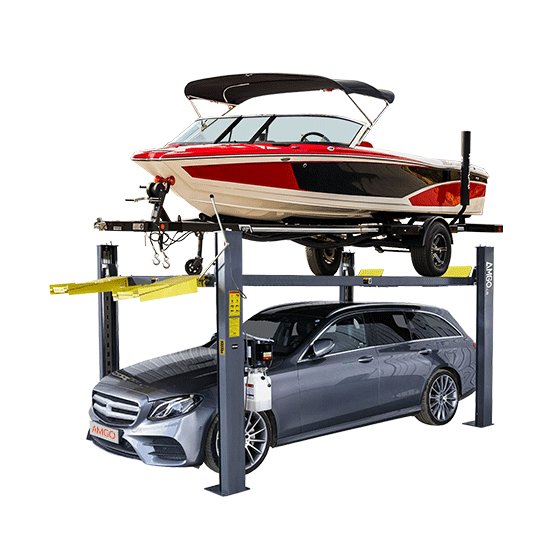

AMGO Boat Storage 4-Post Auto Lift 9,000-lb Capacity. AMGO 409-HPX Commercial Grade Four Post Boat Parking Lift. Stepping up in size and strength, 409-HPX handles more. With a robust 9,000lbs capacity and a longer frame than 408-HPX, it’s the seamless and secure storage solution for even heavier boats.

ADDITIONAL SHIPPING FEES MAY APPLY

Features

• Lifting capacity: 9,000lbs;

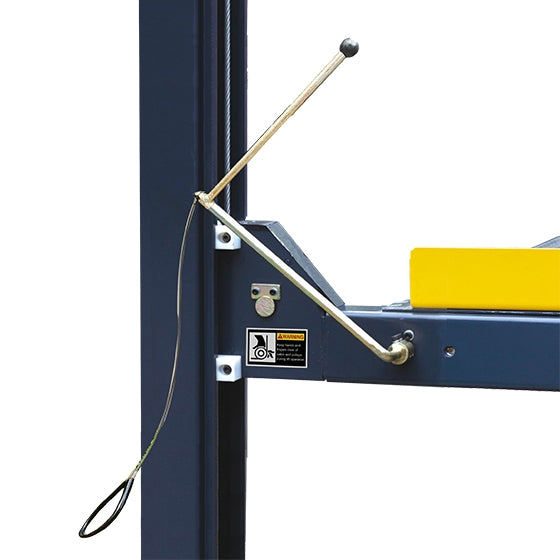

• AMGO’s proprietary concealed lock-control device with a manual single-point release ( no air source required);

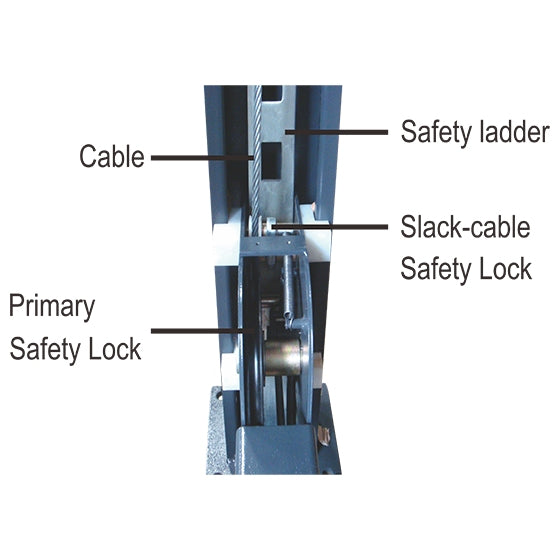

• Dual safety mechanisms with primary safety locks and cable-slack protection;

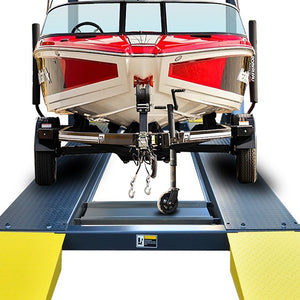

• Integrated non-skid diamond platforms;

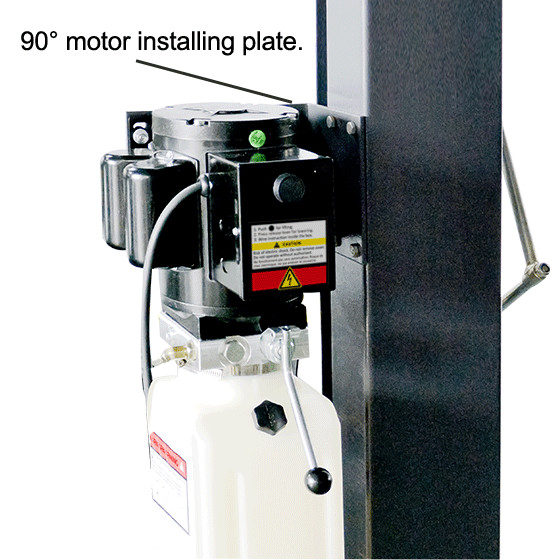

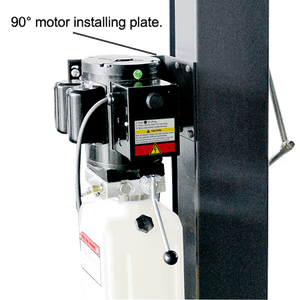

• Flexible installation with the power unit mountable at any corner;
• Two-widths setting platforms accommodates various trailers;

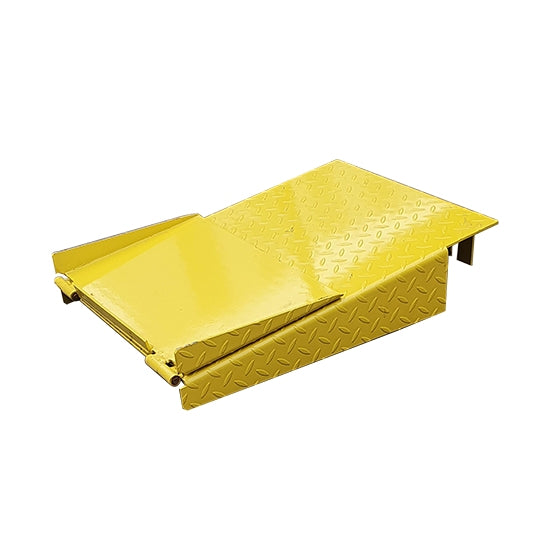

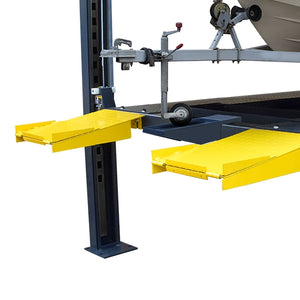

• Standard foldable drive-in ramps;
• ETL certified Power unit;
• 16″ more in length than 408-HPX, is ideal for longer boats.

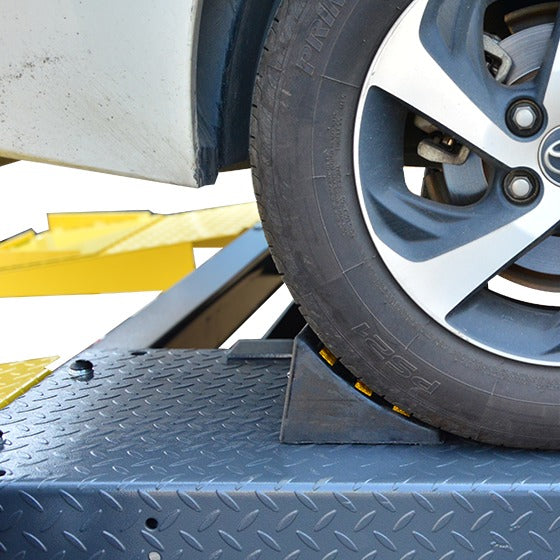

• Optional rubber wheel chock. P/N: 40811

• Optional trailer extended platform adds an extra 24" in length. Kits No.: 40818

Specifications

Model 409-HPX		Boat storage lift
Lifting Capacity		9,000 lbs
Lifting Time		57s
Overall Length (Inc Ramps)	A	238 1/8"
Overall Length (Without Ramps)	B	204 11/16"
Overall Width	C	131 7/8"
Width Between Posts	D	122" 3/16”
Max. Lifting Height	E	88 1/16"
Max. Locking Height		85 5/16"
Overall Height	F	96 5/8"
Minimum Height	G	6 1/8"
Max. Underneath Height	H	82 9/16"
Max. Lock Underneath Runway		79 13/16"
Drive-Thru Clearance	I	111"
Width Between Runways	J	46 1/2" - 64 15/16"
Outside Edge of Runways	K	86 1/2" - 104 15/16"
Gross Weight		2,061 lbs
Motor		2.0HP,220V/60Hz
