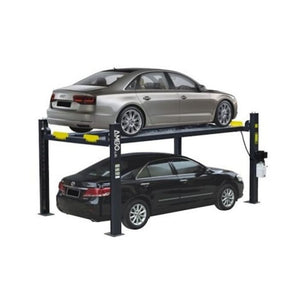

AMGO Storage Lift 408-P, 4 Post Parking Auto lift, 8,000-lb Capacity

AMGO 408-P Commercial Grade Four Post Parking Lift, is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-P requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-P one of the best commercial or private use lifts in the world. The 408-P is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs.

Finance Your Auto Lift Today. Apply Now.

Free Shipping

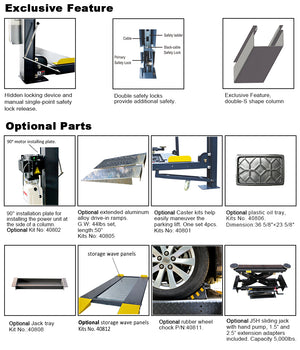

Specifications Include

  • 8,000 lbs. capacity, which is perfect for light-duty vehicles
  • AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks from one column simultaneous.
  • Double-S shaped columns help increase the columns strength
  • Skid proof diamond platform provides traction for the tires to stay put.
  • Optional parts: 4 plastic drip trays,1 jack tray and caster kits set of 4
  • Flexible Design: The power side column can be installed at any corner
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Component
    (Caster Kit, Drip Trays, Jack Platform, 90° Motor Bracket)

Specifications Included:

Model 408-P
Lifting Capacity 8,000lbs(3,500kg)
Lifting Time 81s / 31s
A: Overall Length (Inc Ramps) 207″(5257mm)
B: Overall Length (No ramps) 173 1/4″(4400mm)
C: Overall Width 109 5/8″ (2784mm)
D: Width Between Columns 96″ (2438mm)
E: Max. Lifting Height 73 3/4″(1872mm)
F: Overall Height 82 7/8″(2105mm)
G: Minimum Height 6 1/8″(155mm)
H: Max. Underneath Height 68 3/4″(1747mm)
I: Drive-Thru Clearance 81 5/8″(2074mm)
J: Width Between Columns 37″ (940mm)
K: Outside Edge of Runways 74 3/8″ (1890mm)
Gross Weight 1,649 lbs(747 kg)
Motor 1.0HP 110V/60Hz;       2.0HP 220V/60Hz
