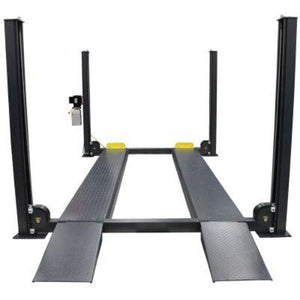

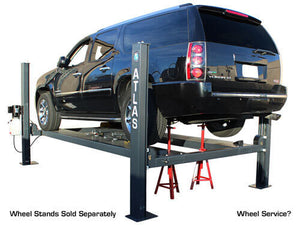

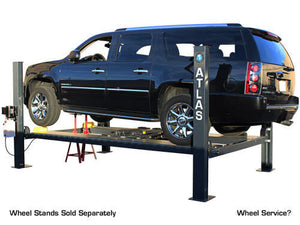

Atlas® 408-SL Premium 4 Post Parking lift, 8,000-lb Capacity

The Atlas® 408-SL super deluxe portable vehicle storage lift is designed for those car enthusiasts who demand the absolute best look and superior quality. The Atlas® 408-SL has all the great features of our Atlas® Garage Pro Series 4 post hobbyist lifts, but incorporates many features found only on our Atlas® commercial grade 4-post lifts. All columns incorporate two special bends which help to increase the column strength. These strategic bends also increase the surface area for the slide block to travel. Horizontal cables are “hidden” inside of the cross tubes. Professional grade wheel covers are used to eliminate almost all exposure of cables and double lock system. The Atlas® 408-SL has “more metal” and weighs over 100 lbs. more than other hobbyist lifts based upon the same column and runway configuration.

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING + Freight Surcharge may apply.

Features include

  • 8,000 lb. Capacity
  • Single point lock release

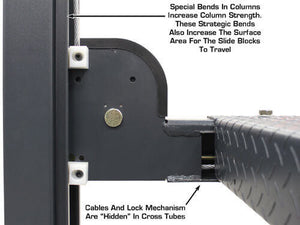

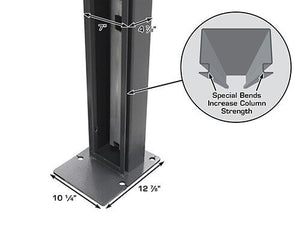

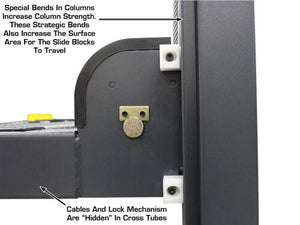

  • All columns incorporate two special bends which help to increase the column strength.
  • Larger column size
  • Double Lock Safety System
  • Higher quality powder coating (steel gray color) that compliments any garage color scheme.

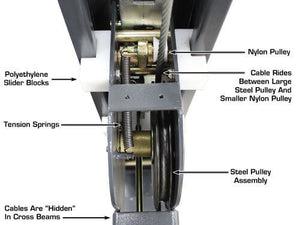

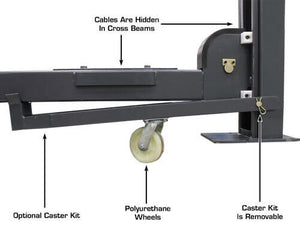

  • Hidden cables in cross tubes
  • Commercial Grade Wear Blocks
  • There is a wider access area between the runways than many other hobby lifts.

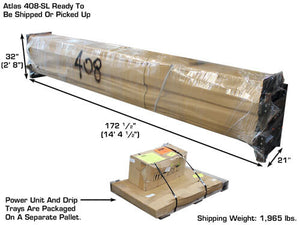

  • Shipping Weight: 1,965 LB



Specifications Include

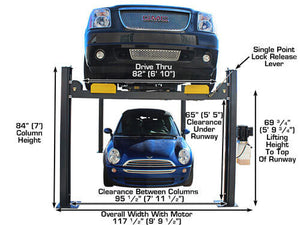

Capacity 8,000 LB
Lifting Height To Top Of Runway 69 3/4" (5' 9 3/4")

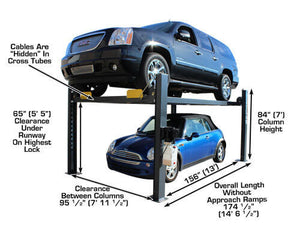

Clearance Under Runways 65" (5' 5")
Height of Columns 84" (7')

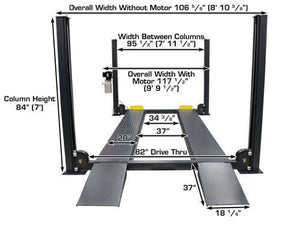

Overall Width (Without Motor) 106 5/8" (8' 10 5/8")
Overall Width (With Motor) 117 1/2" (9' 9 1/2")

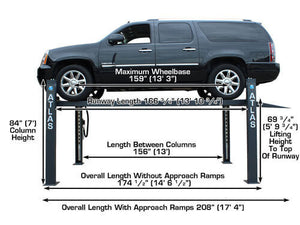

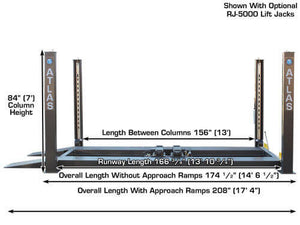

Overall Length with Approach Ramps 208" (17' 4 ")
Overall Length without Approach Ramps 174 1/2" (14' 6 1/2")
Approach Ramps 37" (3' 1")
Runway Width 20" (1' 8")
Runway Length 166 3/4" (13' 10 3/4")
Runway Thickness 4 3/4"

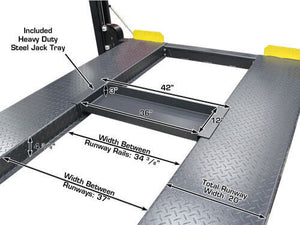

Width Between Runways 37" (3' 1")
Width Between Runway Rails 34 3/8" (2' 10 3/8")
Outside Runway to Outside Runway 74 1/2" (6' 2 1/2")
Size of Column 7" x 4 7/8"

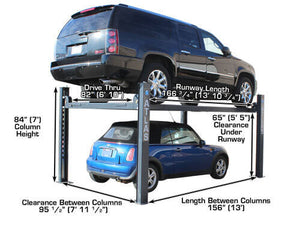

Clearance Between Columns 95 1/2" (7' 11 1/2")
Length Between Columns 156" (13')
Base of Column 10 1/4" x 12 7/8"

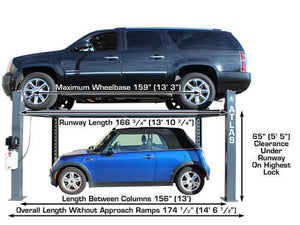

Maximum Wheel Base 159" (13' 3")

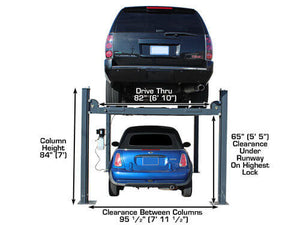

Drive Thru (Outside of tire to outside of tire) 82" (6' 10")

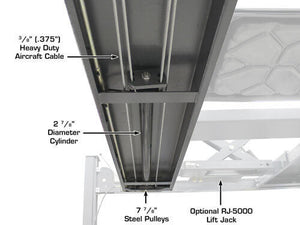

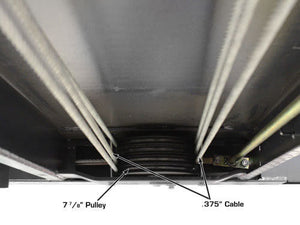

Cable Diameter .375"
Column Thickness of Steel 3.5mm
Platform Thickness of Steel 5mm
Cross Beam Thickness of Steel 5mm

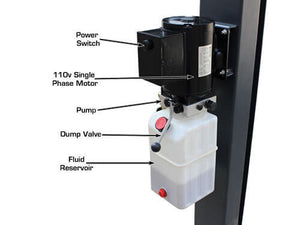

Motor 1.5HP 110V 1Phase 60Hz
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 1,965 LB.

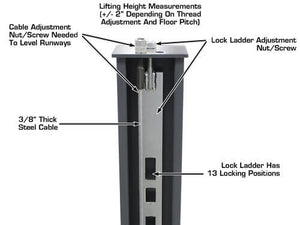

Locking Positions Under Runway
(+/ - 2")
Locking Positions Top Of Runway
(+/ - 2")
18 ½" 23"
22 ½" 27"
26 ½" 31"
30 ½" 35"
34 ½" 39"
38 ½" 43"
42 ½" 47"
46 ½" 51"
50 ½" 55"
54 ½" 59"
58" 62 ½"
62" 66 ½"
65" 69 ¾"
