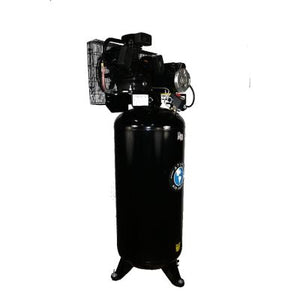

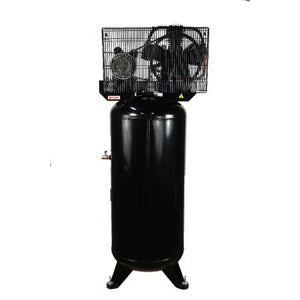

Atlas® Air Force AF5 Single Stage Single Phase 60 Gallon Air Compressor

The Atlas® AF5 is our lowest priced air compressor that is capable of delivering enough air to effectively run our SBC 420 sandblast cabinet (when used with #8 or #10 glass beads). The Atlas® AF5 vertical air compressor does not produce enough air to "run" the sandblast cabinet for an extended period of time, but does produce a sufficient volume and pressure to operate the machine for ten minute intervals.

This Atlas Air Force air compressor is equipped with an oversized three (3) cylinder cast iron single stage reciprocating pump that produces a large volume of air at a very competitive price. The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service.

Finance Your Air Compressor Today. Apply Now.


Features include

  • FREE set of Vibro-Isolation pads

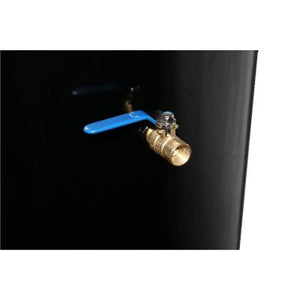

  • Hands free tank drain extension
  • Compressor oil drain extension tube
  • Extremely quiet operation
  • Finned tank inlet tube for reduced tank water accumulation
  • Slow RPM
  • Heavy Duty Metal Belt Guard
  • Shipping Weight: 390-lb

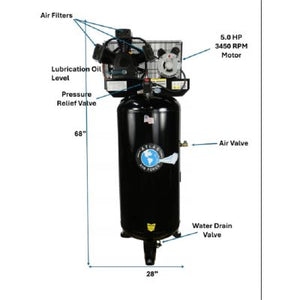

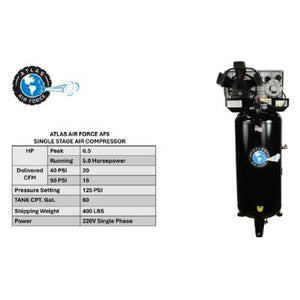

Atlas® Air Force AF5 Specifications
Motor Peak 6.5 Horsepower
Motor Running 4.5 Horsepower
Delivered-CFM 40PSI 20.0
Delivered-CFM 90PSI 18.0
Pressure Setting 90 lb. - 135 lb.
Tank Capacity 60 Gal.
Air Outlet Size ½" NPT
Overall Dimensions L 26" x W 18" x H 65 3/4"
Shipping Weight 390 LBS.
Motor Voltage 230VAC 1PH 60Hz 22.5 AMPS
Compressor Pump PP65 3 Cylinder Single Stage
