Atlas® Air Force AF7 2-Stage 5 HP, 80 Gallon Air Compressor w/Mag Starter

This is our entry level Atlas Air Force commercial grade two stage vertical air compressor. This unit operates between 140 and 175 PSI. The Atlas® AF7 will run the SBC 420 sandblast cabinet (when used with #8 or #10 glass beads). The combination of the commercial grade low RPM motor and heavy duty 3 cylinder (2 cylinders are low pressure and one cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service.

Finance Your Air Compressor Today. Apply Now.

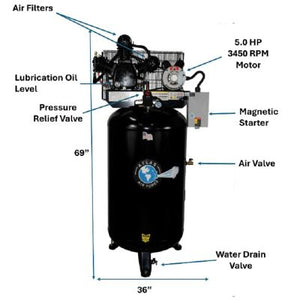

Features include

  • FREE set of Vibro-Isolation pads
  • Hands free tank drain extension
  • Compressor oil drain extension tube
  • Finned tank inlet tube to reduce temperature of compressor air
  • Slow RPM
  • Extremely quiet operation
  • Mounted Magnetic Starter
  • Heavy Duty Metal Belt Guard
  • Shipping Dimensions: 48" x 40" x 72"
  • Shipping Weight: 485-lb


Atlas® Air Force AF7 Specifications
Motor Running 5.0 Horsepower
Delivered-CFM 100PSI 15.0
Delivered-CFM 175PSI 14.0
Pressure Setting 145 lb. - 175 lb.
Tank Capacity 80 Gal.
Air Outlet Size ½" NPT
Overall Dimensions L 24" x W 24" x H 65 7/8"
Shipping Weight 485 LBS.
Motor Voltage 230VAC 1PH 60Hz 23AMPS
Compressor Pump CK40 3 Cylinder 2 Stage
