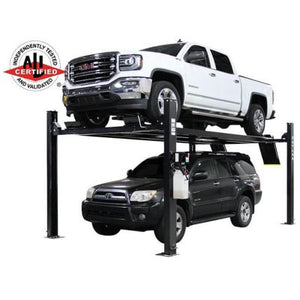

The Atlas® APEX9 ALI certified 4 post lift is a heavy-duty hobbyist and commercial grade lift and is a true 9000 LB lift. The APEX9 is extra-long and allows the lift to handle some of the longest wheelbase vehicles out there. The APEX9 is also extra wide allowing even Diesel Dually to be driven onto the runways. The APEX9 also features extra lift height so everything from Smart Cars® to a Dually can be parked both below and on the runways.
The Atlas® APEX9 is even heavier than the Garage PRO9000 making it one of the heaviest portable hobbyist lifts on the market. The APEX9 has many of the features of the Atlas® Garage PRO9000 lift including free plastic drip trays and a free steel jack tray. Also available for purchase with this lift is a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. Finally, the Atlas® APEX9 features "tracks" between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ6BK) on the lift.
The commercial grade features and ALI Certification of the Atlas® APEX9 make this lift the perfect choice for automotive service centers or the "Mr. Homeowner" that needs a PORTABLE professional four post lift.
Finance Your Auto Lift Today. Apply Now.
FREE SHIPPING
Features include
- ALI Certified Lift
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall, Extra Wide & Extra Long
- Powder Coat Finish
- Diamond Plated Runways
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included
- Two Rubber Wheel Chocks Included
- Caster Kit with Polyurethane wheels Available (Sold Separately)
- Anchor Bolts Optional (Sold Separately)
- Perfect for Storage or Working on Vehicles
- 110volt Electric Operation (Requires 30amp Breaker)
- 5 Year Structural/2 Year Hydraulic Warranty
- Shipping Weight: 2,975 lbs.
- This part number FREIGHT PREPAID
- Apex9 (manufacturer Part #)

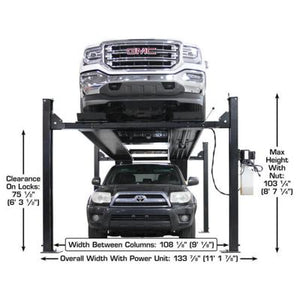

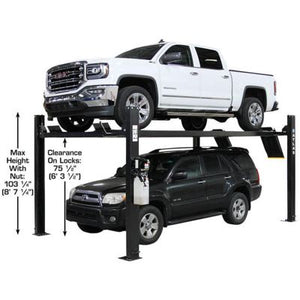

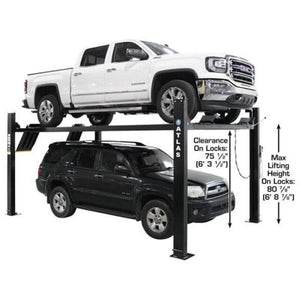

Specifications include
- Capacity: 9000 lbs
- Lifting Height, Top of Runway: 86" (7' 2")
- Clearance Under Runways: 81 1/4" (6' 9 1/4")
- Height of Columns: 99" (8' 3")

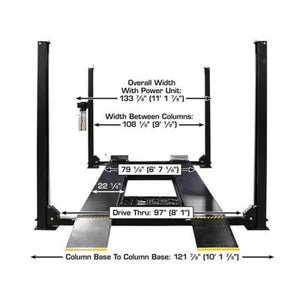

- Overall Width: 121 7/8" (10' 1 7/8") w/ motor 133 7/8" (11' 1 7/8")
- Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
- Runway Length: 196 1/2" (16' 4 1/2")
- Runway Width: 20 1/8"
- Runway Thickness: 4 3/4"
- Width Between Runways: 38 7/8" w/ Rail 34 3/4"
- Outside Runway to Outside Runway: 79" (6' 7")
- Clearance Between Columns: 108 1/8" (9' 1/8")

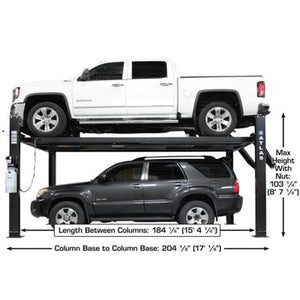

- Length Between Columns: 184 1/4" (15' 4 1/4")
- Drive Thru: 98 5/8" (8' 2 5/8")
- Motor/Electrical Requirement: 110volt, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 2975 lbs
