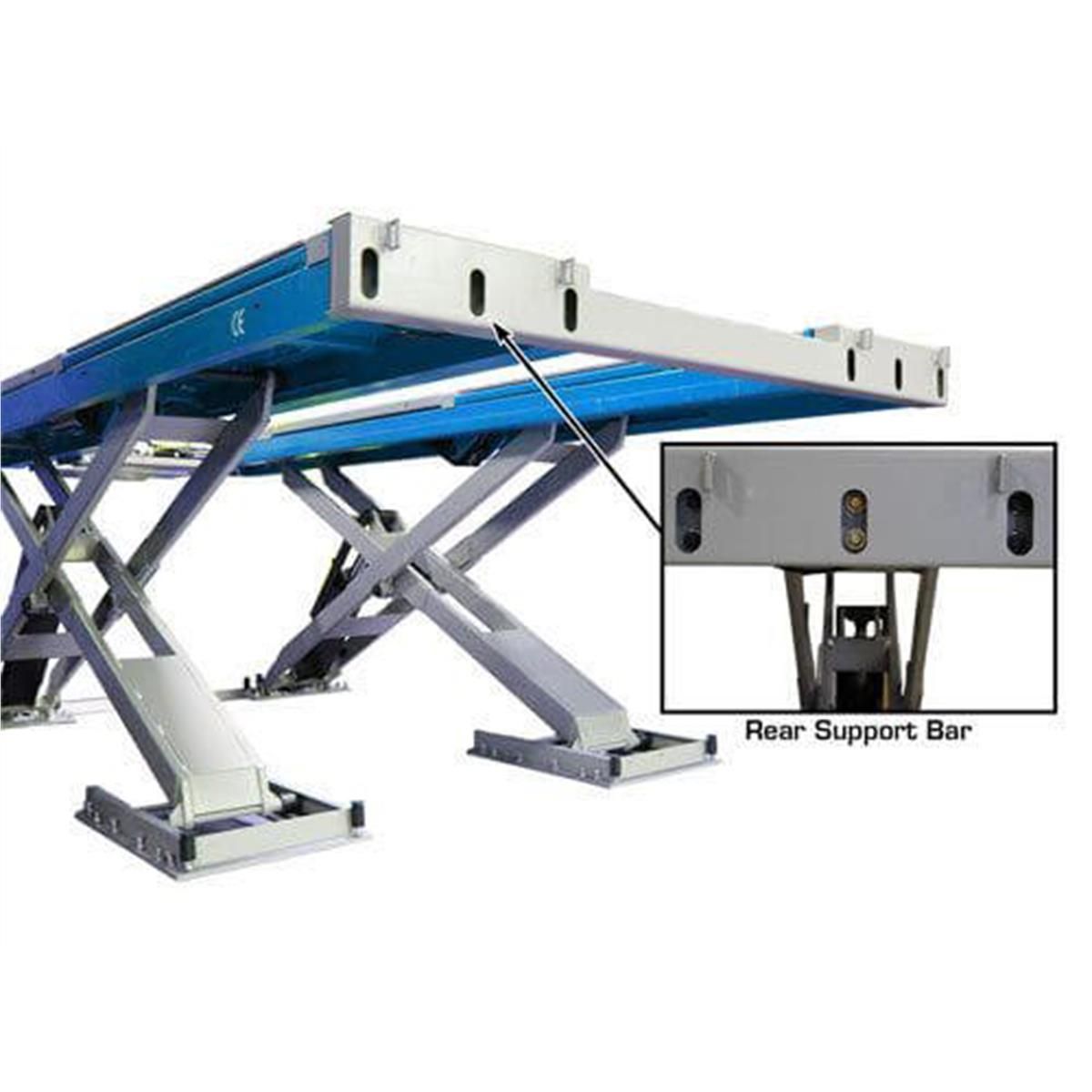

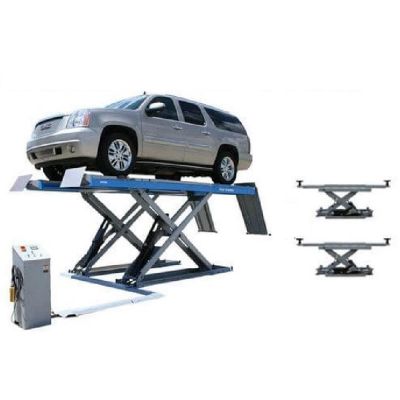

Our Atlas® Asian partner developed this heavy duty scissor alignment lift in a joint venture with one of the most prestigious Italian lift manufacturers. The combination of the Italian engineering and design coupled with the low cost of the Asian labor has resulted in an alignment lift that is equal to or better than similar big name lift brands costing two and three times as much money. The Atlas® 12ASL 12,000 lb. scissor alignment lift has a lifting height of over seven feet so that it may be floor mounted or recessed in the floor for flush mounting (if flush mounting additional short ramps must be purchased separately).
This Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dually.
This combo package also includes two of the popular Atlas® RJ-6 rolling bridge jacks. The jacks are perfect for raising a vehicle-wheels off the lifts runways in order to service tires and brakes.
FREE SHIPPING
Features & Benefits:

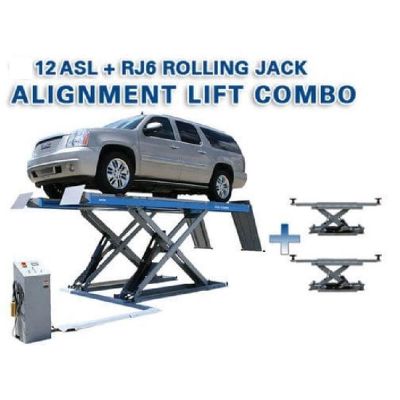

- Combo includes 12ASL scissor alignment lift & two RJ-6 rolling jacks
- Commercial Grade
- Built in Slip Plates and Alignment Turntables Included

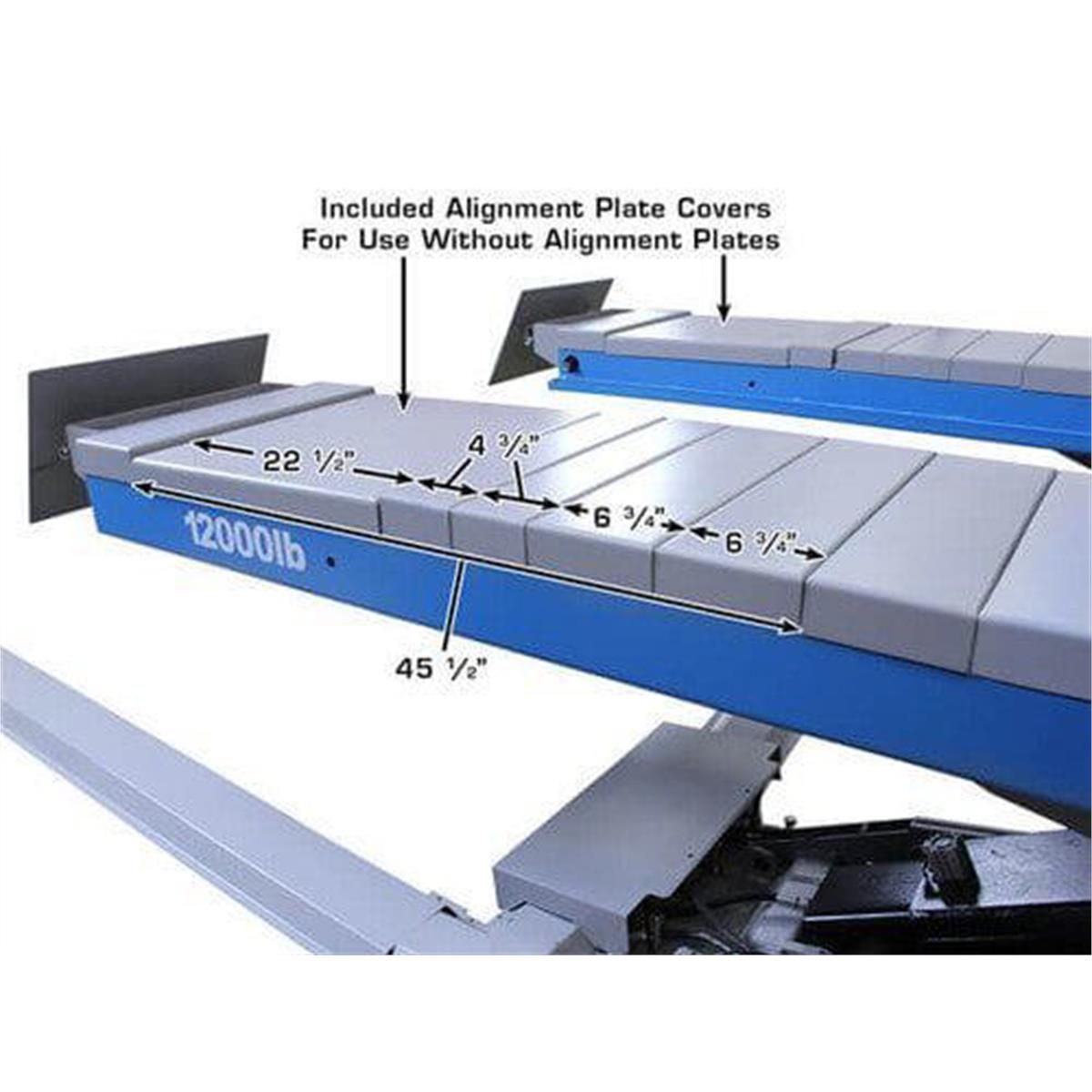

- Turntable Covers Included

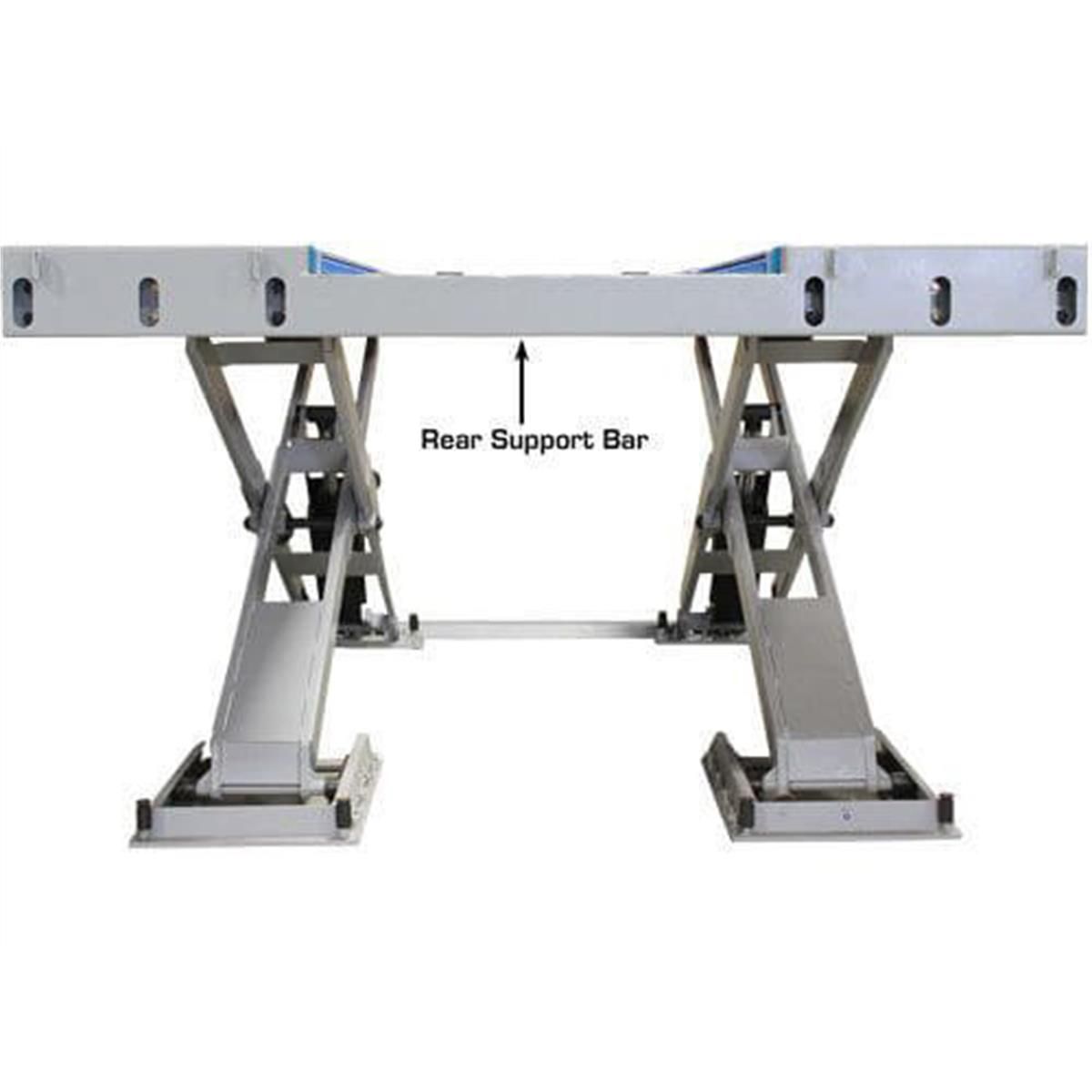

- Open Center Design for Easy Access

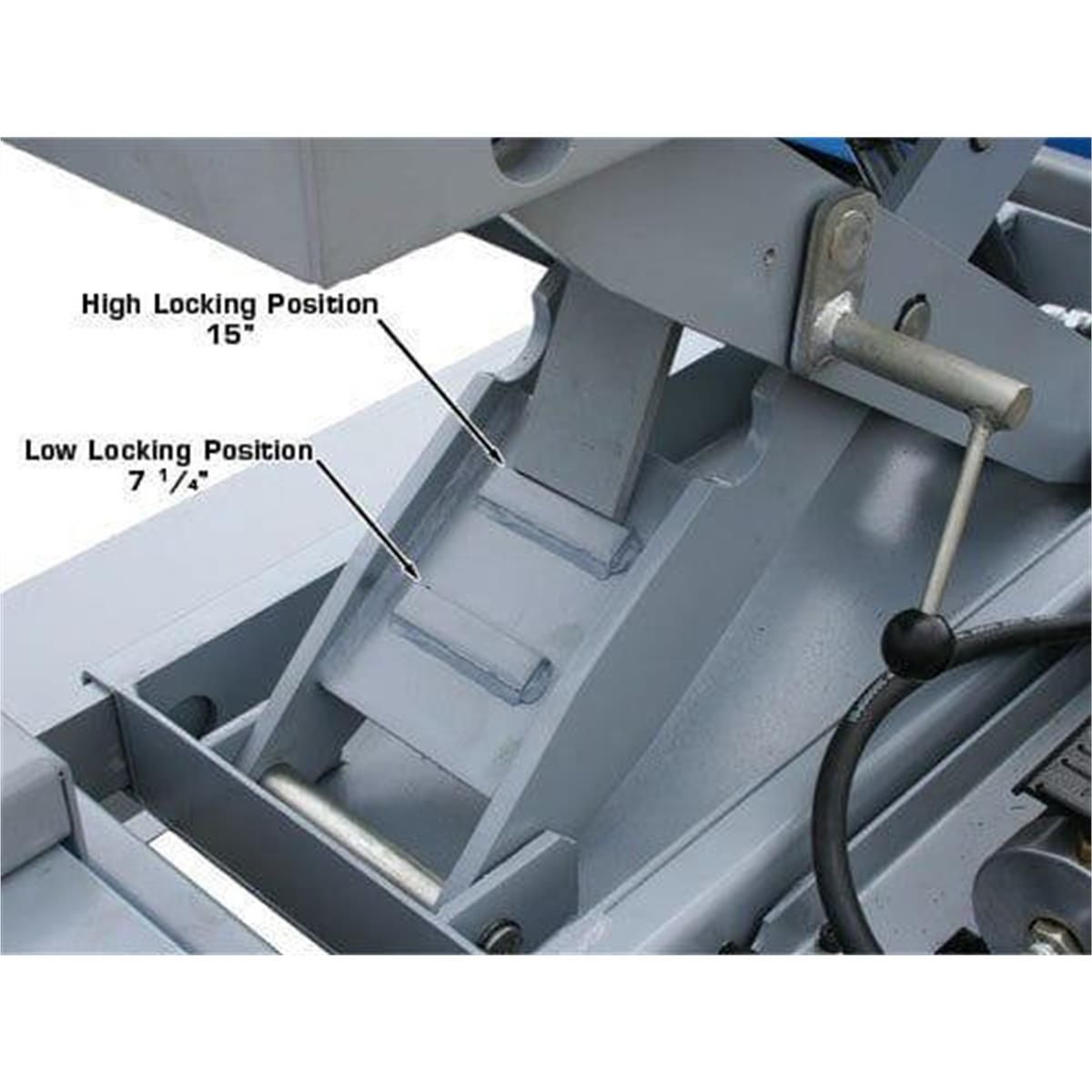

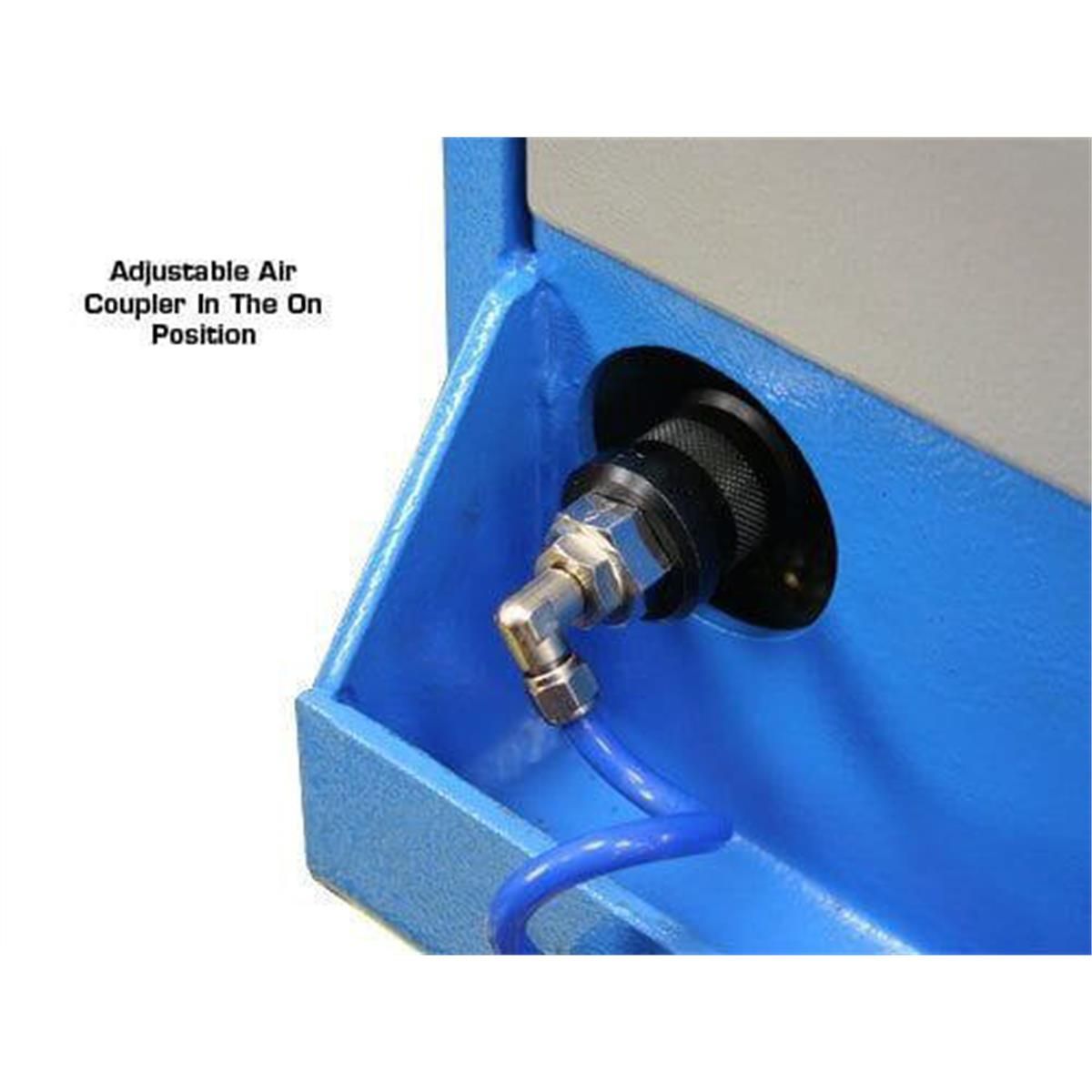

- Air-Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

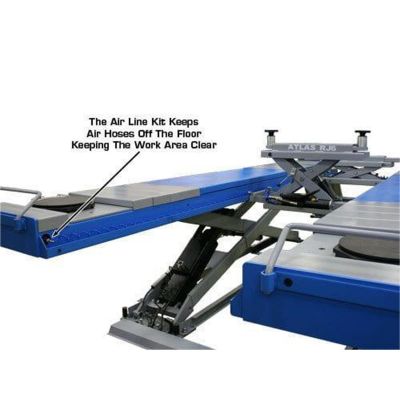

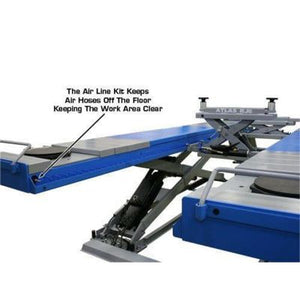

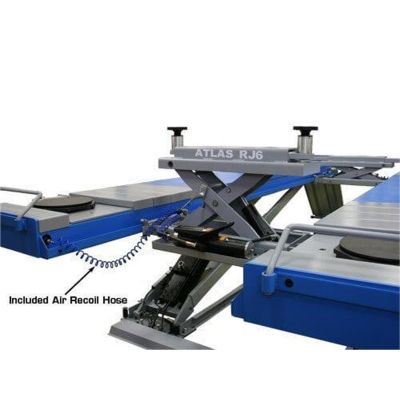

- Airline Kit Included
- Jacks are Air Over Hydraulic operated

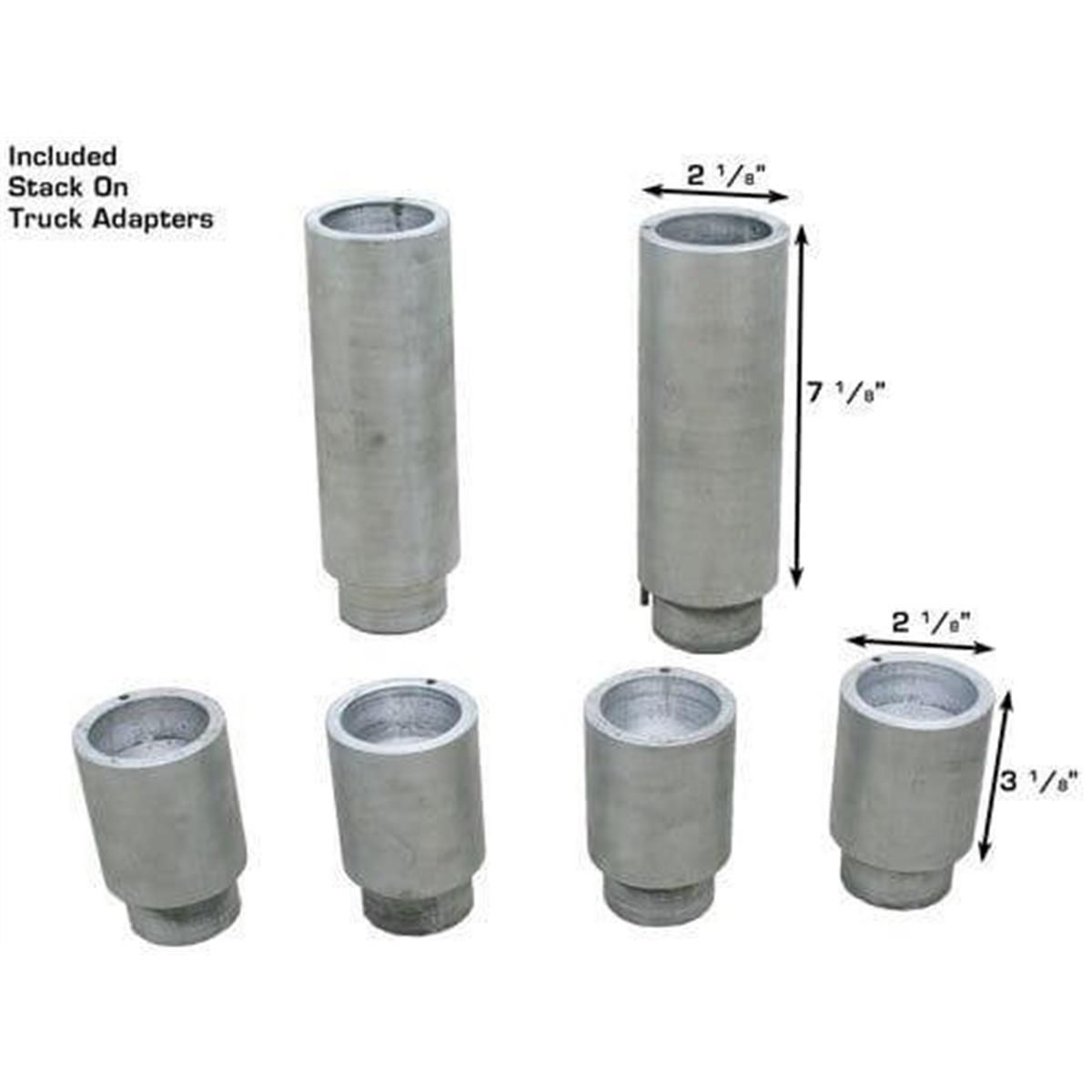

- Truck Adapter Set for each Jack Included
- This part number Freight Prepaid

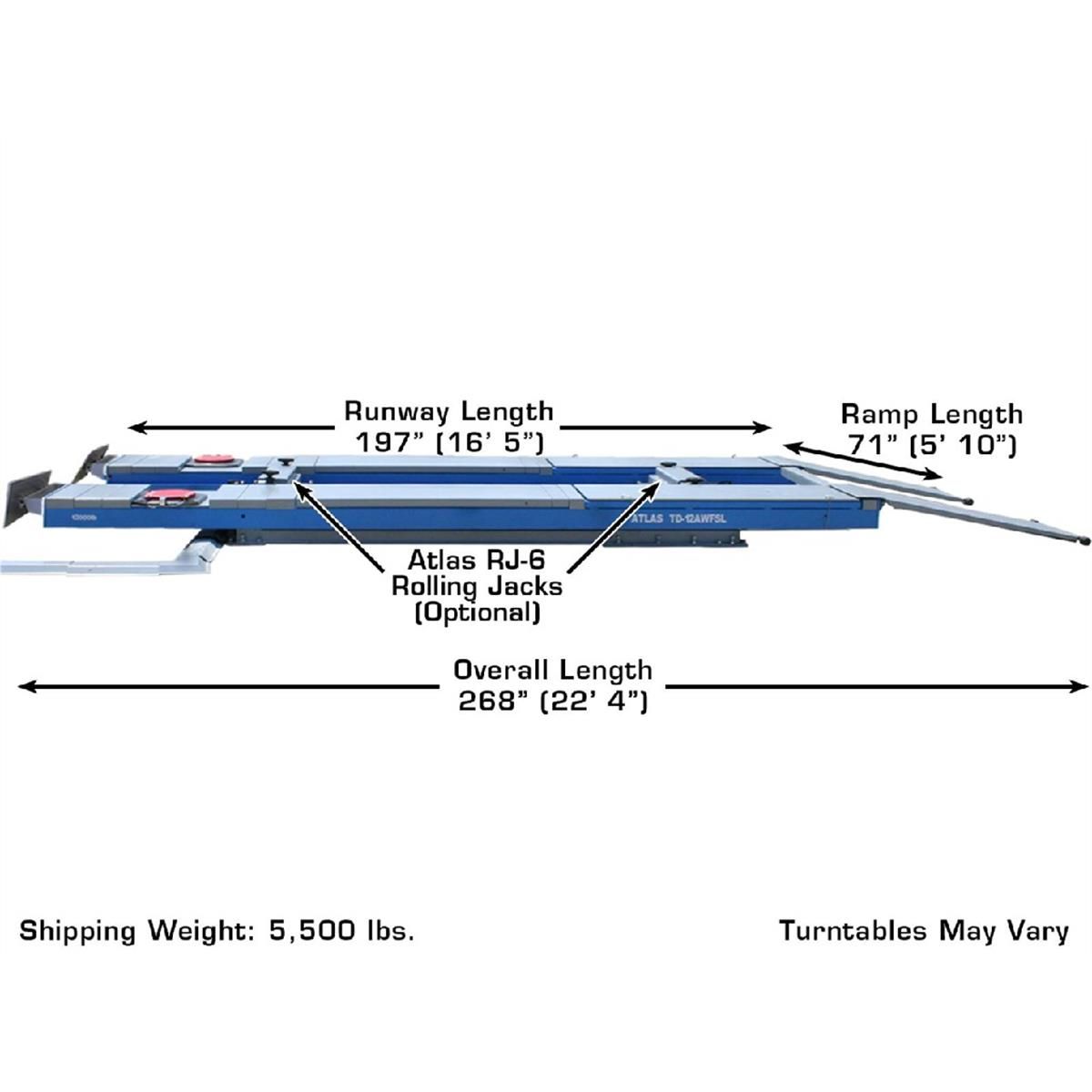

Atlas® 12ASL Specifications
- Capacity: 12000 lbs
- Minimum Lift Height: 11 1/2"
- Maximum Lift Height Above Floor: 84 1/4" (7' 1/4"))
- Overall Length w/ Ramps: 268" (22' 4")
- Overall Length w/o Ramps: 197" (16' 5")
- Overall Width: 86 3/8" (7' 2/ 3/8")
- Runway Width: 23 3/4"
- Between Runways: 39"
- Air Requirement: 85-120 PSI
- Motor/Electrical Requirement: 220volt +/- 5% (209-231 volts)/1phase 30amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

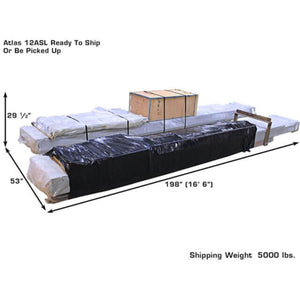

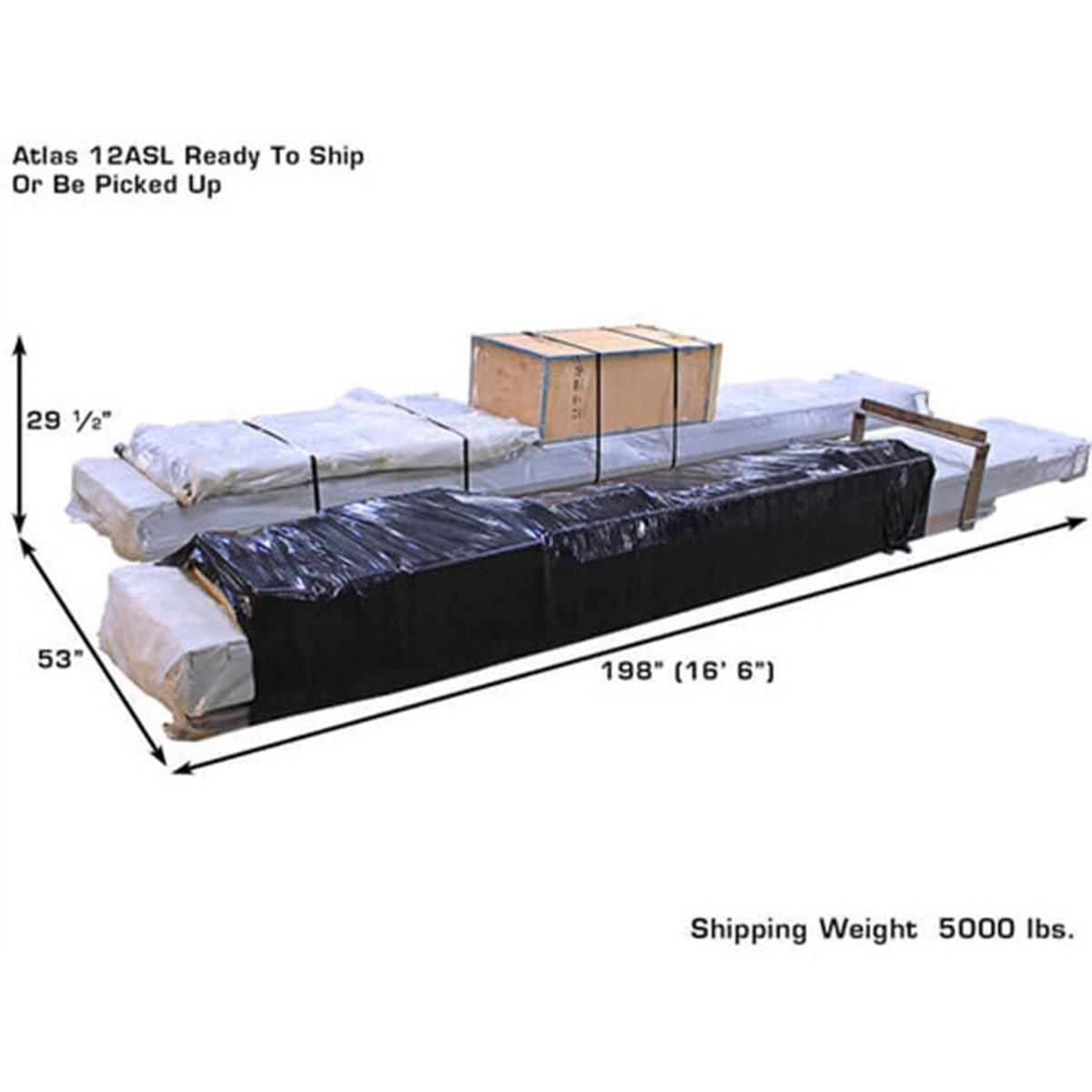

- Shipping Weight: 5500 lbs.

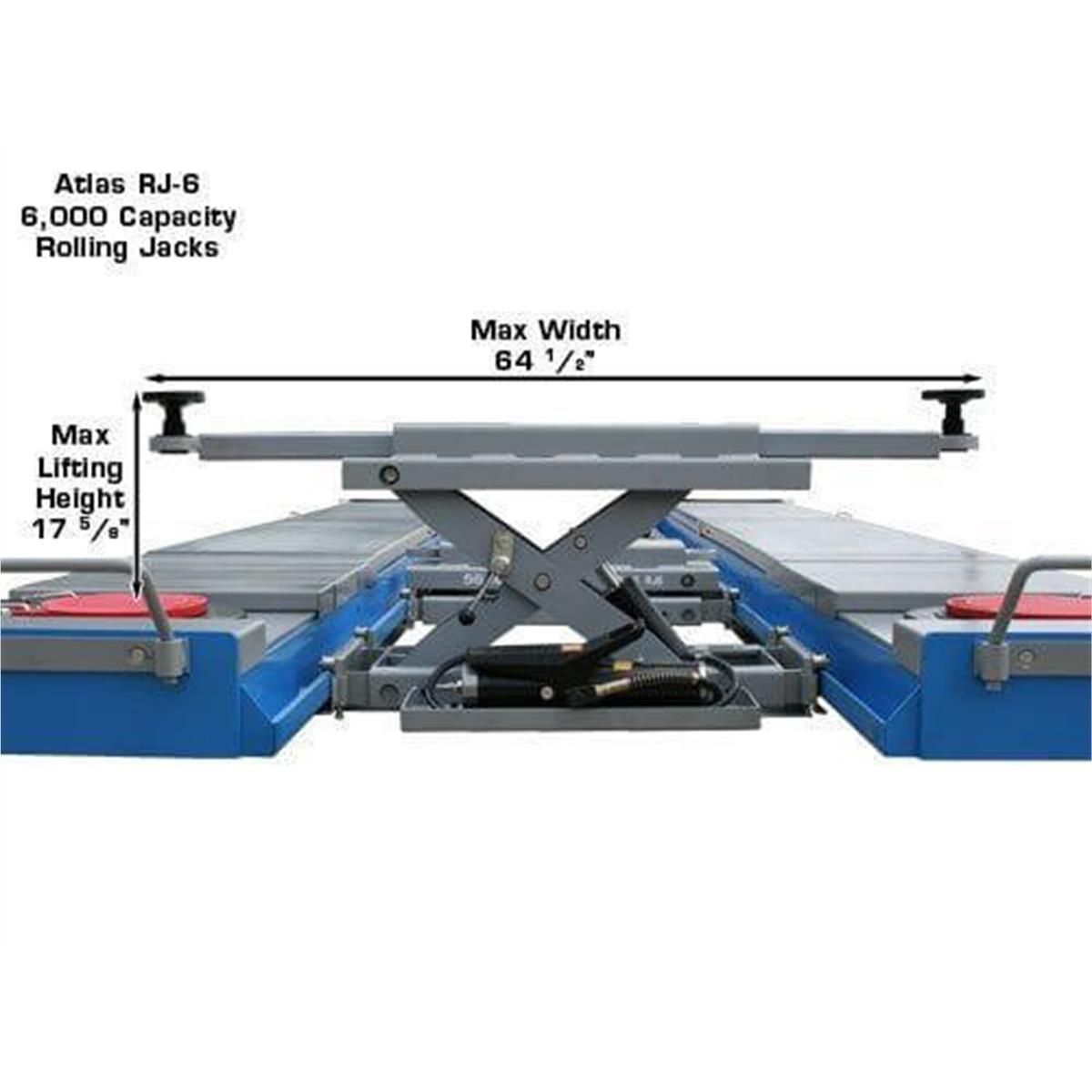

Atlas® RJ-6 Specifications:
- Capacity: 6,000 lbs

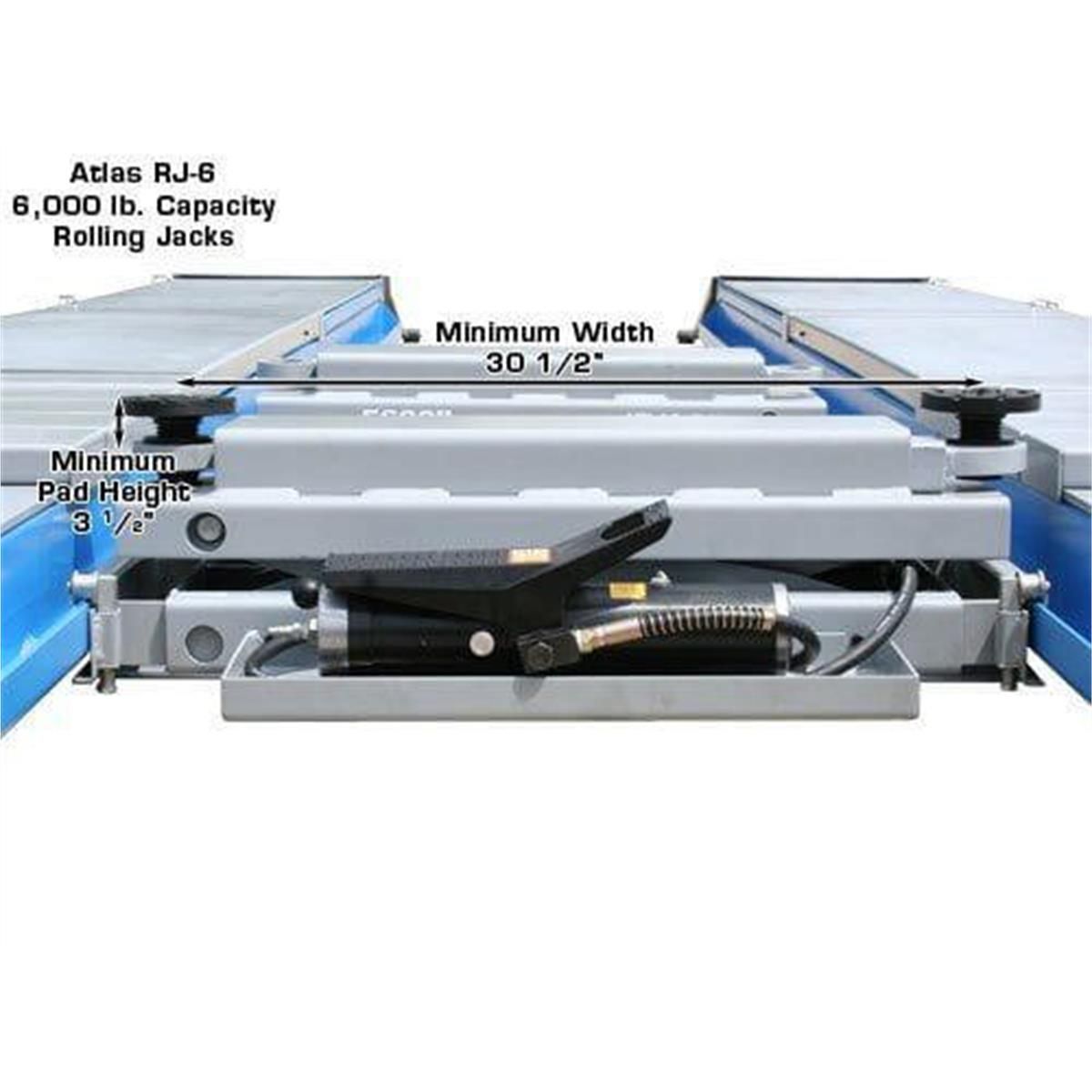

- Minimum Width: 30 1/2"
- Maximum Width: 64 1/2"
- Distance Between Runway Capability: 31 1/2" - 49 1/2"
- Minimum Pad Height (Above Runway): 3 1/2"

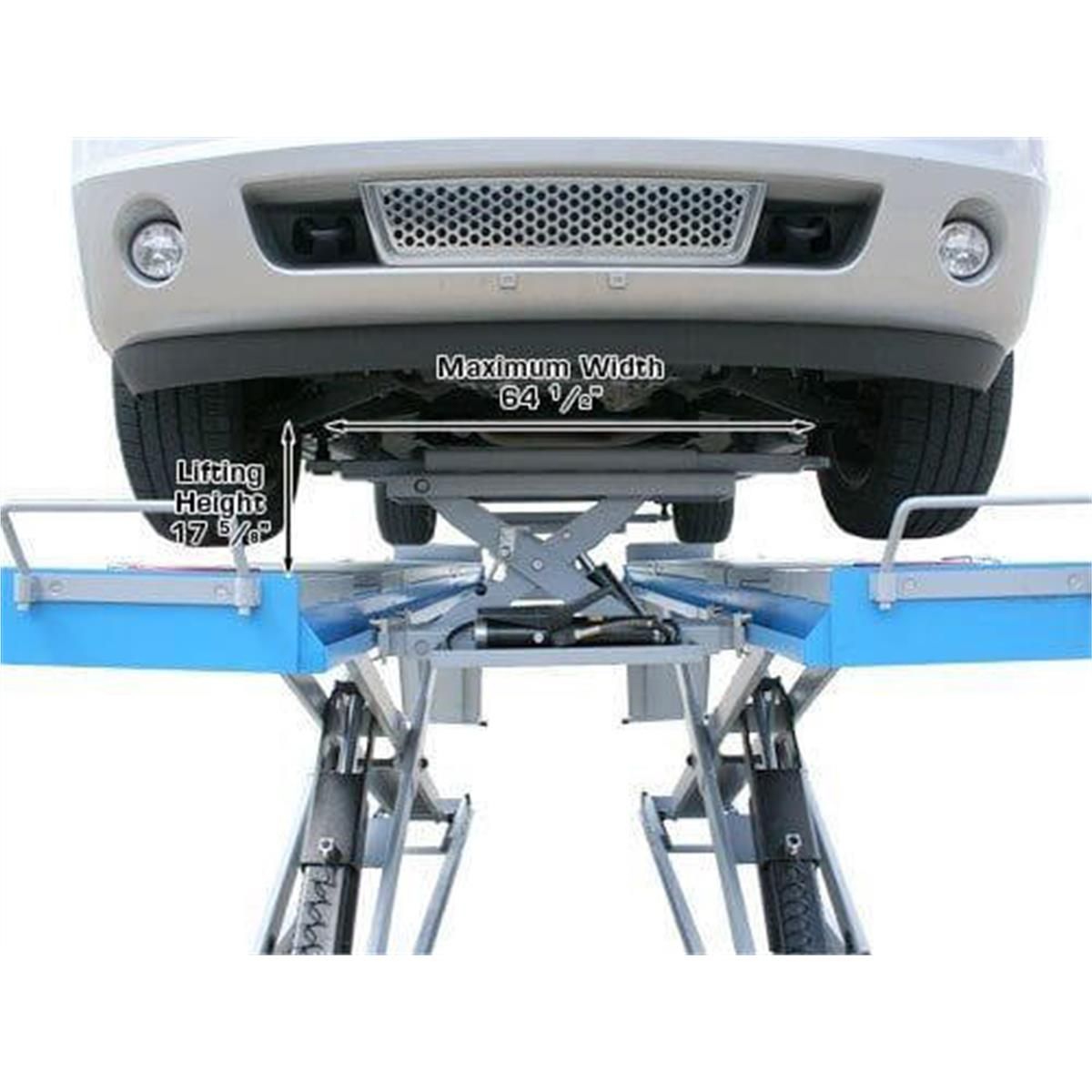

- Maximum Lifting Height (w/ Adapters): 17 5/8"
- Air Requirement: 70-115 PSI
- Shipping Weight: 350 lbs
- Adapter Heights: 2 Each 3", 7"
- Arm Hole/Adapter Peg Size: 2"
