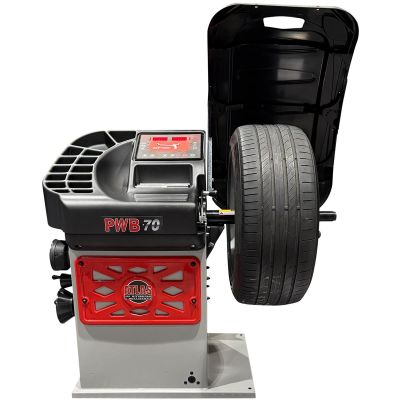

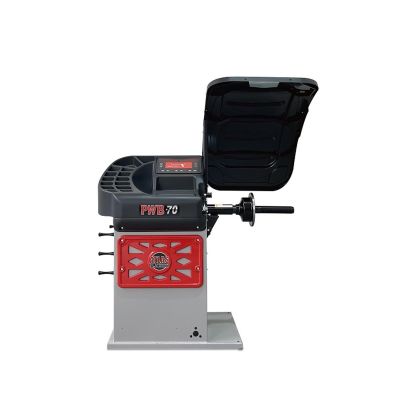

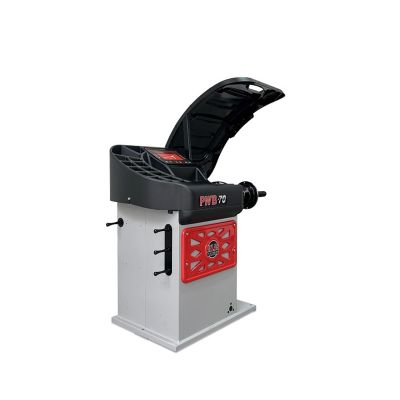

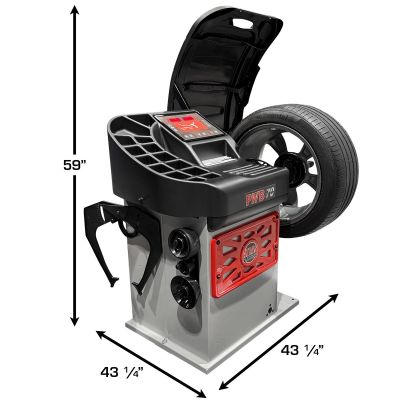

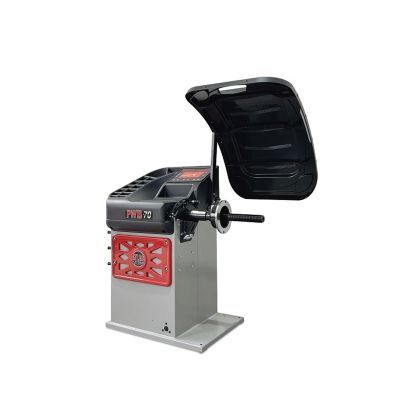

The Atlas Platinum PWB70 is an electronic wheel balancer that improves on the already high-quality PWB50 model. The Atlas Platinum PWB70 features a bigger wheel weight tray, a larger hood, and also adds an LED light and Laser Line guide for more precise wheel weight placement. The Atlas Platinum PWB70 comes standard with an easy-to-read LED display and Automatic 2D Data Entry via a single data entry gauge.
The PWB70 has Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the Italian made PWB70 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.
Free Shipping
Features and Benefits:
- Platinum Computer Controlled Motorized Spin Balancer
- Italian Engineering and Components
- Electric brake with smart approach function
- Large Wheel Weight Tray
- Automatic start/stop when hood is lowered/raised
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- Automatic 2D Data Entry
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- Laser Line to guide weight placement
- LED light illuminates wheel interior
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Replacement Parts & Wear Items Always in Stock
- 2 Year Parts Only Warranty

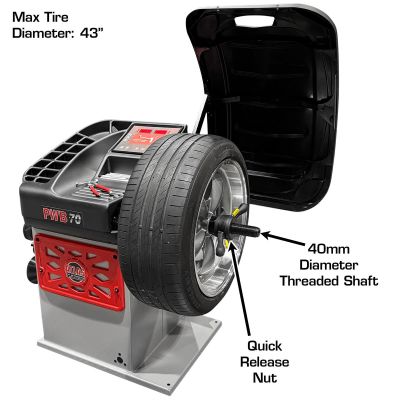

- Max Tire Diameter: 43"
- Rim Sizes (Cars and Light Trucks): 10"-30"
- Rim Width: 1 1/2"-20"
- Shaft Size: 40mm
- Max. Wheel Weight: 165 lbs.
- Balancing Speed: 130 rpm
- Data Entry: Automatic 2D
- Measurements: Standard Or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self-Calibration: Yes
- Cycle Time: 7 seconds
- Power Supply: 110volt
- Shipping Weight: 280 lbs.
