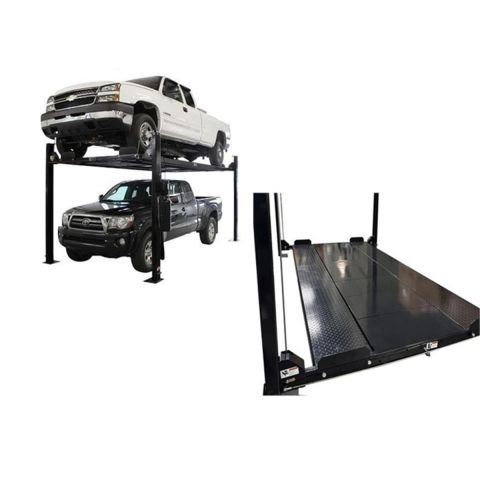

The Atlas® Garage Pro 8,000 EXT-L in an extra-long and slightly wider Service / Storage Lift. This lift is 20 inches longer (wheelbase) and 3 inches wider than the Atlas® Garage Pro 8000 EXT. Or to compare to the original, this lift is 20 inches longer (wheelbase), 3 inches wider, and 14 inches taller than the Atlas® Garage Pro 8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except dually trucks. Check out the Atlas® Garage Pro 9000 or the Atlas® 409-HP if you need a portable lift for your dually!

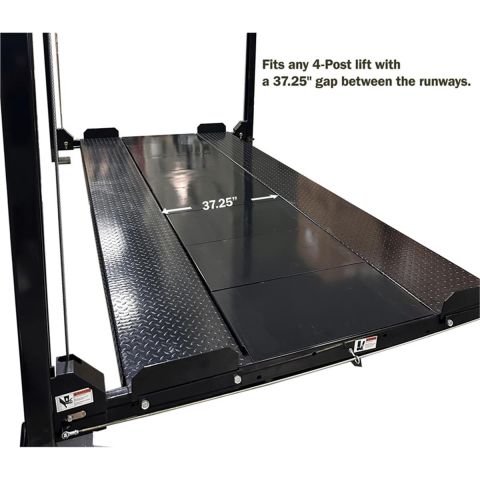

The ATLAS Floor Panel set is designed to enhance the functionality of 8,000 lbs capacity lifts by closing the gap between the runways. This addition maximizes your storage potential, allowing you to store items securely above your vehicle, while providing additional space for parking underneath.
Features and Benefits:
Specifications include
| Atlas® Garage Pro 8000 EXT-L Specifications | |
| Capacity | 8,000 LB |
| Lifting Height | 84 (7') |
| Overall Width (Without Motor) | 108" (9') |
| Overall Width (With Motor) | 116 (9' 8 ) |
| Length Between Columns | 176 (14' 8 ) |
| Overall Length with Approach Ramps | 227" (18' 11") |
| Overall Length without Approach Ramps | 195" (16' 3") |
| Approach Ramps | 36 3/4" (3' 3/4") x 19 5/8" (1' 7 5/8") |
| Total Runway Width | 22" (1' 10") |
| Runway Length | 185" (15' 5") |
| Runway Thickness | 4 |
| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 34" (2' 10") |
| Outside Runway to Outside Runway | 77 3/4" (6' 5 3/4") |
| Clearance Under Runways | Max: 80" (6' 8") |
| Size of Column | 6 x 3 3/8" |
| Clearance Between Columns | 98" (8' 2") |
| Base of Column | 9 5/8" x 11 |
| Height of Columns | 97 (8' 1 ); 100" (8' 4) with Bolts |
| Maximum Wheel Base | 173" (14' 5") |
| Drive Thru | 84" (7') |
| Cable Diameter | .350" |
| Gauge Of Steel | 6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Motor | 110 Volt |
| Oil Requirement | 3-5 Gallons AW32/AW46 |
| Shipping Weight | 1,900 LB. |
