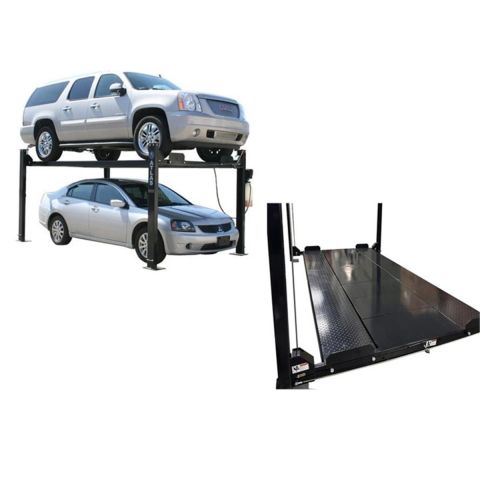

The Atlas® Garage Pro 8000 EXT is designed to go higher to accommodate parking for taller vehicles, such as SUVs and Pickup Trucks, under the elevated ramp. This portable four post lift is designed and built for home hobbyist, restoration and body shops that need more car storage. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day.

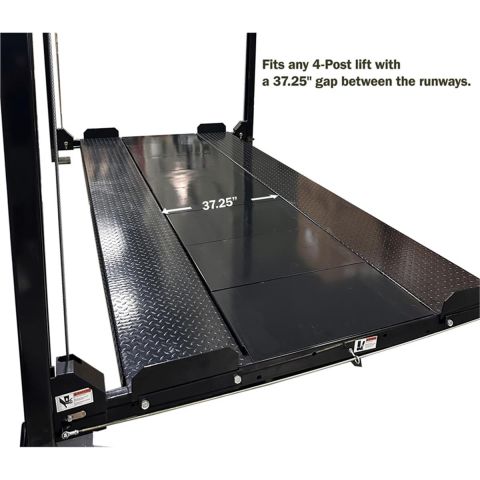

The ATLAS Floor Panel set is designed to enhance the functionality of 8,000 lbs capacity lifts by closing the gap between the runways. This addition maximizes your storage potential, allowing you to store items securely above your vehicle, while providing additional space for parking underneath.
Features and Benefits:
Specifications include
| Atlas® Garage Pro 8000 EXT Specifications | |
| Capacity | 8,000 Lb. |
| Lifting Height To Top Of Runway | 84 1/4" (7' 1/4") |
| Clearance Under Runways | 79" (6' 7") |
| Height Of Columns | 98 1/2" (8' 2 1/2") |
| Overall Width (Without Motor) | 104 3/8" (8' 8 3/8") |
| Overall Width (With Motor) | 114" (9' 6") |
| Overall Length With Approach Ramp | 207 1/2" (17' 3 1/2 ) |
| Approach Ramp | 37" (3' 1") |
| Runway Width | 21 1/4" (1' 9 1/4 ) |
| Runway Length | 165 1/2" (13' 9 1/2 ) |
| Runway Thickness | 5" |
| Width Between Runways | 37 3/8" (3' 1 3/8") |
| Width Between Runway Rails | 31 3/4" (2" 7 3/4") |
| Outside Runway To Outside Runway | 74 3/4" (6' 2 1/4") |
| Clearance Between Columns | 94 3/8" (7' 10 3/8") |
| Length Between Columns | 157 5/8" (13' 1 5/8") |
| Maximum Wheel Base | 153 1/2" (12' 9 1/2") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 80 1/2" (6' 8 1/2") |
| Motor/Electrical Requirement | 110 Volt |
| Shipping Weight | 1,850 lb. |
