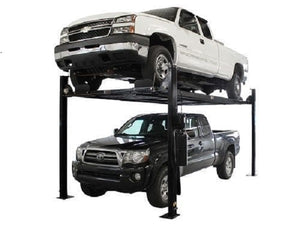

Atlas Storage Lift, Pro 8000EXT-L, 4 Post Parking lift, 8,000-lb, (Extra Tall and Long)

The Atlas® Garage Pro 8,000 EXT-L in an extra long and slightly wider Service / Storage Lift. This lift is 20 inches longer (wheelbase) and 3 inches wider than the Atlas® Garage Pro 8000 EXT. Or to compare to the original, this lift is 20 inches longer (wheelbase), 3 inches wider, and 14 inches taller than the Atlas® Garage Pro 8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. Check out the Atlas® Garage Pro 9000 or the Atlas® 409-HP if you need a portable lift for your dually!

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING

Features include

  • 8,000 lb. Capacity
  • Atlas® Powder Coat Finish
  • Diamond Plated Runways

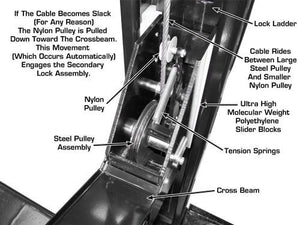

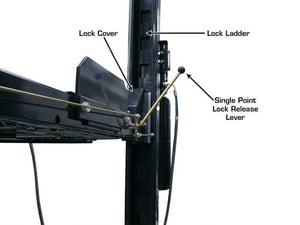

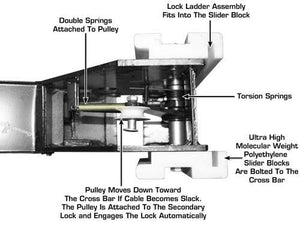

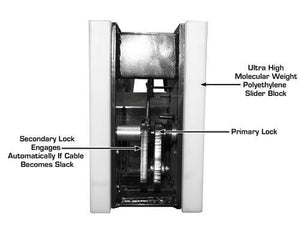

  • Single Point Lock Release
  • Four Wheel Stops Included

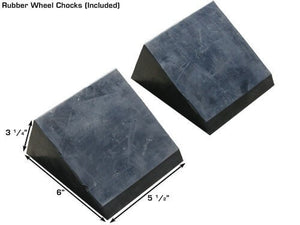

  • Two Rubber Wheel Chocks Included

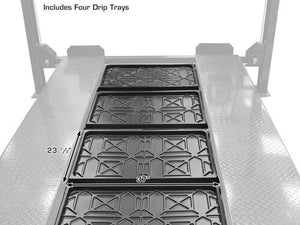

  • Four Drip Trays Included

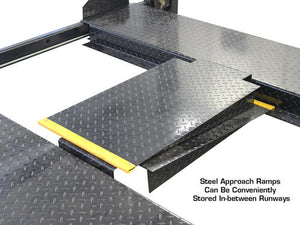

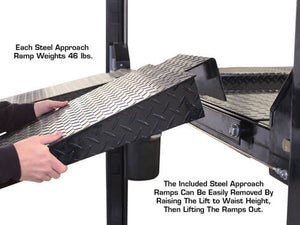

  • Steel Approach Ramps Included

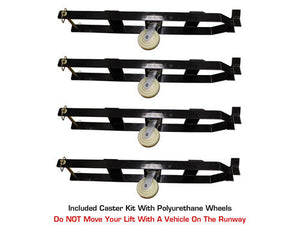

  • Polyurethane Caster Kit Included
  • Heavy Duty Jack Tray Included
  • Anchor Bolts Optional (Sold Separately)
  • Perfect For Storing Or Working On Vehicles
  • 2 Year Structural, 1 Year Hydraulic Warranty
  • Shipping Weight: 1,900 lbs.

Specifications include

Atlas® Garage Pro 8000 EXT-L Specifications
Capacity 8,000 LB

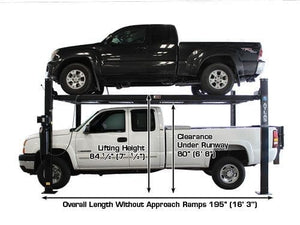

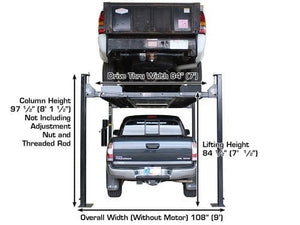

Lifting Height 84 (7')
Overall Width (Without Motor) 108" (9')

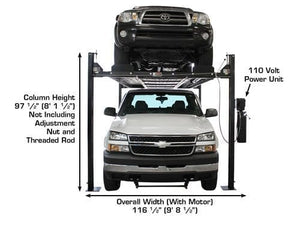

Overall Width (With Motor) 116 (9' 8 )

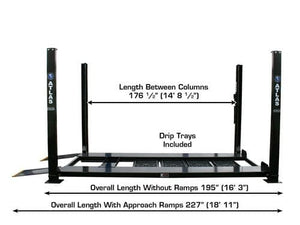

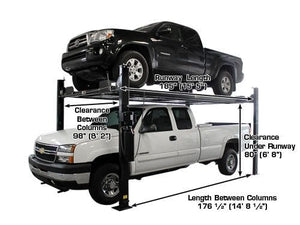

Length Between Columns 176 (14' 8 )
Overall Length with Approach Ramps 227" (18' 11")
Overall Length without Approach Ramps 195" (16' 3")
Approach Ramps 36 3/4" (3' 3/4") x 19 5/8" (1' 7 5/8")
Total Runway Width 22" (1' 10")
Runway Length 185" (15' 5")
Runway Thickness 4
Width Between Runways 38" (3' 2")
Width Between Runway Rails 34" (2' 10")
Outside Runway to Outside Runway 77 3/4" (6' 5 3/4")
Clearance Under Runways Max: 80" (6' 8")
Size of Column 6 x 3 3/8"

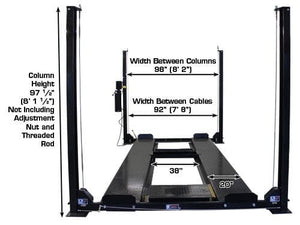

Clearance Between Columns 98" (8' 2")
Base of Column 9 5/8" x 11
Height of Columns 97 (8' 1 ); 100" (8' 4) with Bolts

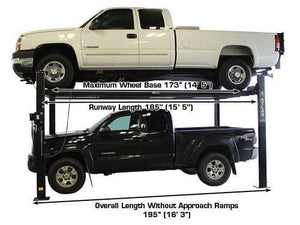

Maximum Wheel Base 173" (14' 5")
Drive Thru  84" (7')

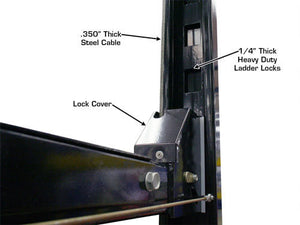

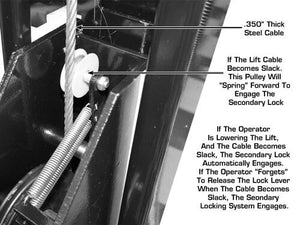

Cable Diameter .350"

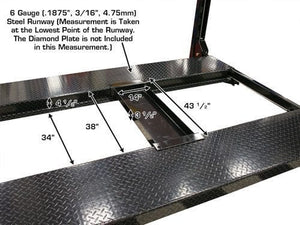

Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm)

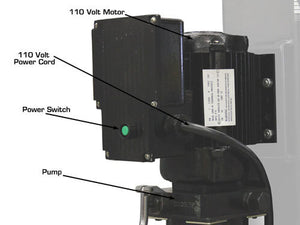

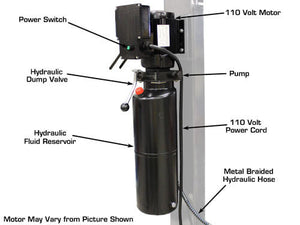

Motor 110 Volt
Oil Requirement 3-5 Gallons AW32/AW46

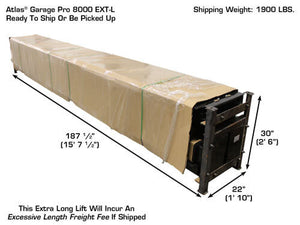

Shipping Weight 1,900 LB.
