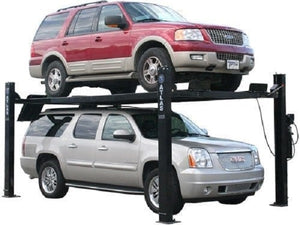

Atlas Storage Pro 9000, 4 Post Parking lift, 9,000-lb Cap. (EXTRA TALL, EXTRA WIDE)

This Atlas® Garage Pro 9000 4 post lift can accommodate a 187" vehicle. The Atlas® Garage Pro 9000 has the longest runways (we believe) of any portable 9,000 LB. four post on the market. The Atlas® Garage Pro 9000 weighs about 300 LB. more than our Atlas® Garage Pro 8000. The Atlas® Garage Pro 9000 four post above ground lift incorporates many features that are not found in any of our competitors' four post lifts that are sold in the USA. This lift is a portable four post lift incorporating polyurethane casters on the caster kit to prevent damage to the garage floor.

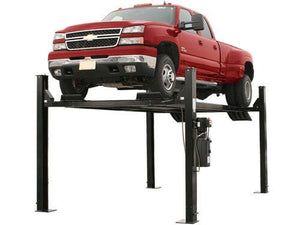

The Garage Pro 9000 can lift your pick-up truck or car up to 85 inches in the air. This above ground lift is the perfect choice for parking taller vehicles under your stored vehicle. The commercial grade features of the Garage Pro 9000 make this lift the perfect choice for automotive service center or Mr. Homeowner that needs a PORTABLE professional four post lift at a competitive price. The Garage Pro 9000 four post lift comes standard with a powerful 110 volt power unit. A 30 amp breaker is required.

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING

Features Include

  • 9,000 lb. Capacity
  • Extra Tall
  • Extra Long Runways
  • Powder Coat Finish

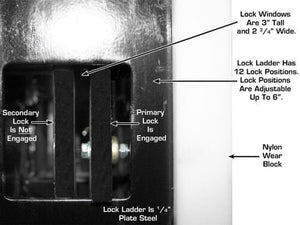

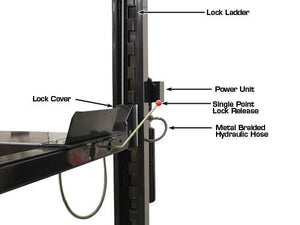

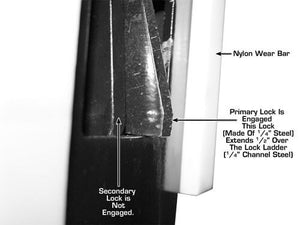

  • Single-Point Lock Release

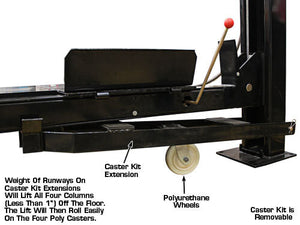

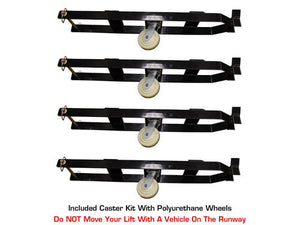

  • Caster Kit With Polyurethane Wheels
  • Steel Approach Ramp

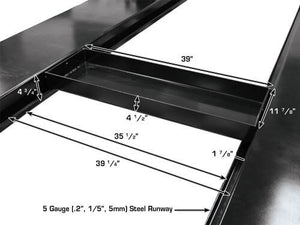

  • Steel Jack Tray

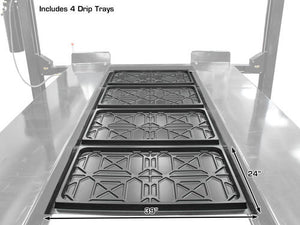

  • Plastic Drip Trays
  • Four Wheel Stops Included

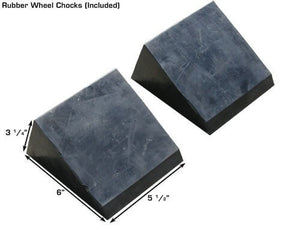

  • Two Rubber Wheel Chocks

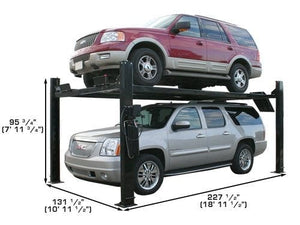

  • Perfect For Storing Or Working On Vehicles
  • 2-Year Structural, 1-Year Hydraulic Warranty

Specifications Include

Atlas® Garage Pro 9,000 Specifications
Capacity 9,000 LB
Lifting Height To Top Of Runway 85" (7' 1")

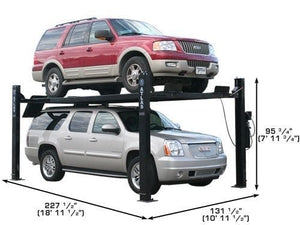

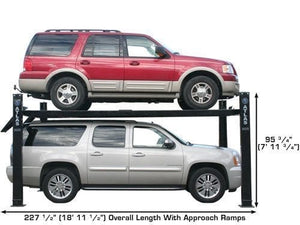

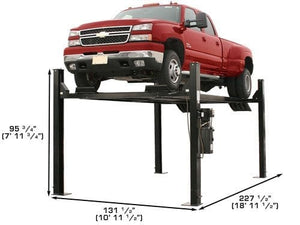

Overall Length with Approach Ramps 227 1/2" (18' 11 1/2")
Overall Length without Approach Ramps 204" (17')
Length Between Columns 184 1/2" (15' 4 1/2")

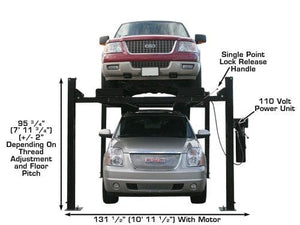

Overall Width (With Motor) 131 1/2" (10' 11 1/2")
Overall Width (Without Motor) 123 1/2" (10' 3 1/2")
Approach Ramp Length 31 1/2"
Total Runway Width 21 1/4"
Runway Length 199 1/2" (16' 7 1/2")
Runway Thickness 4 3/4"
Width Between Runways 39 1/4"
Width Between Runway Rails 35 1/2"
Outside Runway to Outside Runway 79" (6' 7")

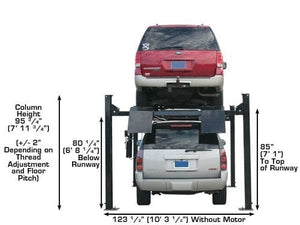

Clearance Under Runways 80 1/2" (6' 8 1/2")

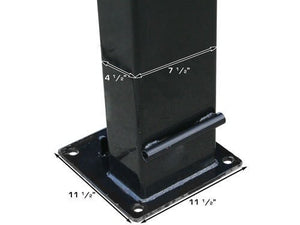

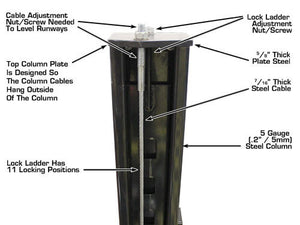

Size of Column 7 1/2" x 4 1/2"

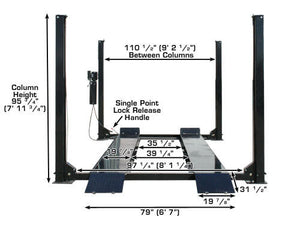

Clearance Between Columns 110 1/2" (9' 2 1/2")
Base of the Column 11 1/2" x 11 1/2"

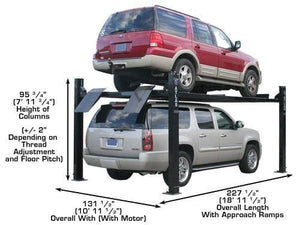

Height of Columns 95 3/4" (7' 11 3/4")
Maximum Wheel Base 187" (15' 7")
Drive Thru (Outside of tire to outside of tire) 97 1/4" (8' 1 1/4")

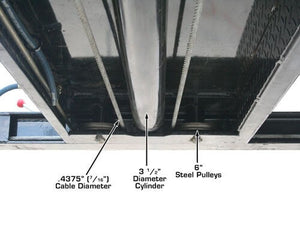

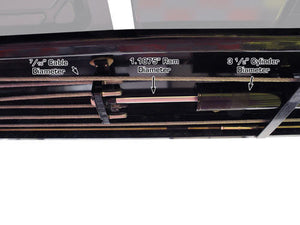

Cable Diameter .4375" (7/16")
Gauge Of Steel 5 Gauge (.2" / 1/5" / 5mm)

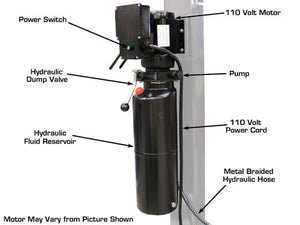

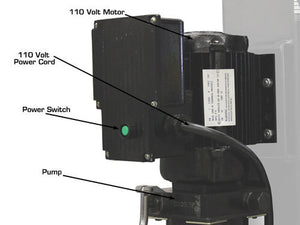

Motor 110 Volt
Oil Requirement 3-5 Gallons AW32/AW46

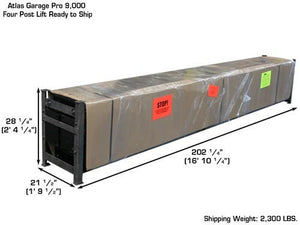

Shipping Weight 2,300 LBS.
