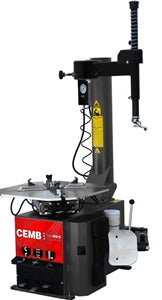

CEMB SM825EVO / SM825EVOAIR Swing Arm Tire Changer

CEMB SM825EVO / SM825EVOAIR Swing Arm Tire Changer, A traditional swing arm tire changer (SM825EVO), ideal for general service of most OEM fitments and a variety of custom tires and wheels. The complete version includes an optional high-performing press arm (SM825EVOPA) system to handle stiff side wall tires and custom wheels.

FREE SHIPPING

Features

  • Air Tank in Tower
  • Dual clamping cylinders with value-added specifications of 13”-24” clamping range.
  • Maximum tire diameter 44” and maximum tire width 15”.
  • Dual stage inflation system with safety limiter and bead blaster built into clamping jaws.
  • Powerful and adjustable bead breaker shovel loosens the most difficult tires and wheels.
  • Free Shipping, Fully Assembled and Tested in the USA
  • Plug & Play with On-Site Training
  • SM825EVO - 110v, 1ph. and compressed air. SM825EVOAIR - Compressed air only powered version

Technical:

Power Supply 110V, 1ph
Air Pressure 145 psi
Internal Clamping Capacity 14”-30”
External Clamping Capacity 12”-28”
Max. Wheel Diameter 47.5” (1206 mm)
Max. Wheel Width: 15” (381 mm)
Turn Table Speed: 7-14 rpm
Machine Weight 529 lbs (240 kg)

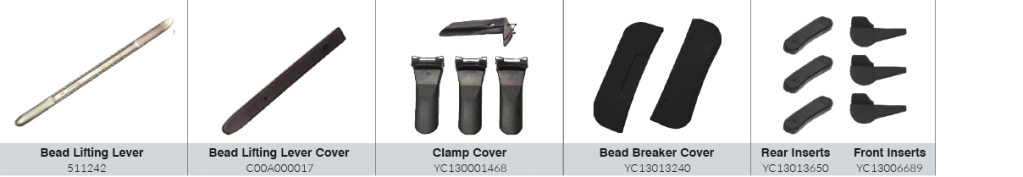

Standard Accessories Included:
