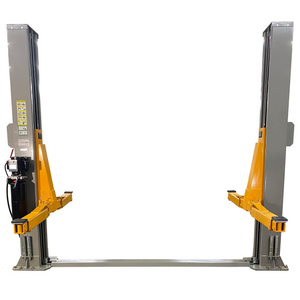

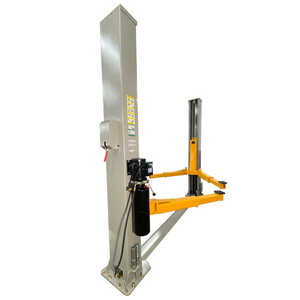

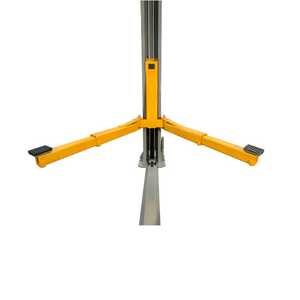

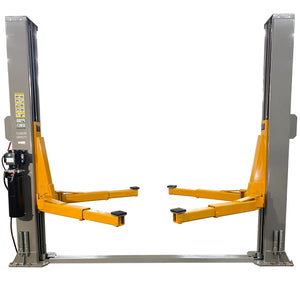

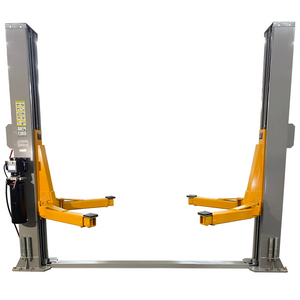

Triumph NT-15 Baseplate 2 Post Auto Lift, 15000-Lb Capacity

The Triumph Heavy Duty Baseplate NT-15 is ISO 9001 CE compliant. With commercial grade dual hydraulic chain-drive cylinders, symmetric arms with automatic arm restraints and dual point lock release. Lift is perfect for fleet, general repair, tire and body shops with a low ceiling application. Dulley 1-Tons or large vans no problem. Quality you can trust. - Shop now

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING

Specifications include

  • 15,000 lbs. capacity
  • Low Ceiling application
  • Floor Plate-Open Top design
  • Chain Drive

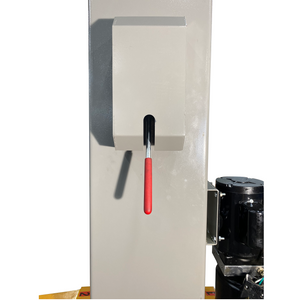

  • Dual Point Lock release
  • Powder coat finish

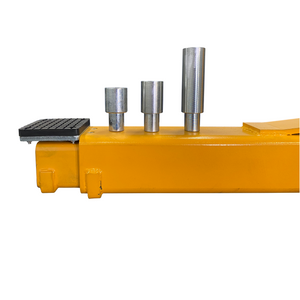

  • 4ea Stackable 3″ & 6″ ‘drop-in’ Height Adapters
  • Front side mounted Power Unit
  • Overall Height 118"
  • Overall Width 142" (base plate to base plate)
  • Distance Between Posts 114"
  • Drive Thru Width 100"
  • 72" Pad height-at highest locking position
  • 7" Minimum Pad height
  • Over Sized Base Plate 20" x 20
  • 3 Horse Power Unit - 220volt - 30 amp
  • Minimum 6" Concrete Slab, 3000 psi
