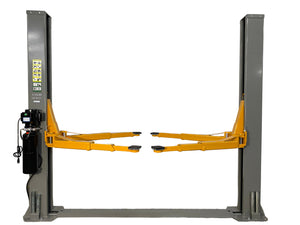

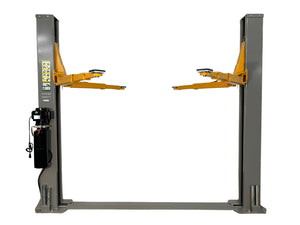

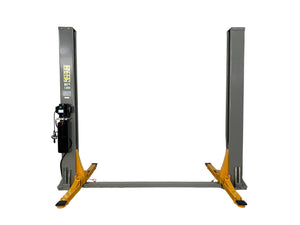

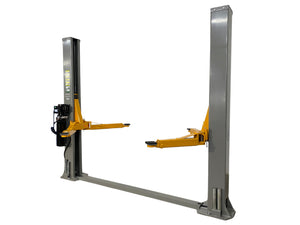

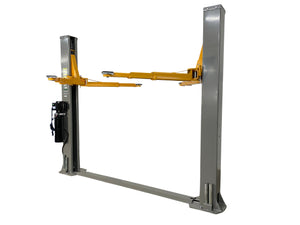

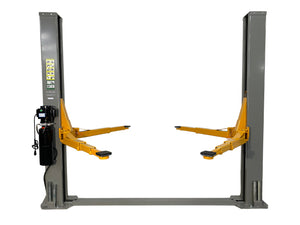

Triumph NT-9 Baseplate 2 Post Auto Lift, 3-Stage Arms, 110 Volt Power

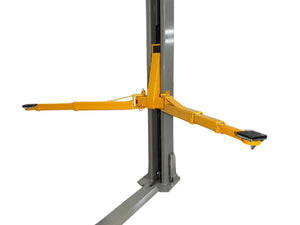

The Triumph Floor Plate 110 Volt Power NT-9 comes with commercial grade dual hydraulic chain-drive cylinders, symmetric arms, 3-Stage front arms with automatic arm restraints and dual point lock release. The open-top design of this lift makes it ideal for garages with low ceilings. The Triumph NT-9 can lift a range of the most common vehicles on the market, both foreign and domestic, while also having the capacity to handle light-duty trucks. Making it perfect for most general repair, tire and body shops.

Finance Your Auto Lift Today. Apply Now.

Free Shipping

Specifications include.

• Lifting Capacity  9000 lbs.
• Power Unit Voltage  110 Volts
• Overall Height    111"
• Overall Width     132"
• Width Between Posts 106" (Width up at the mirror height of vehicle)
• Drive Thru Width 96" (Width at the tires of vehicle on floor)
• Lifting Height      72"
• Lowered Height  4.5"
• Base Plate Size 19"x17"
• Truck Adapters Yes
• Lock Release Dual Point
• Electric Safety Shutoff No
• Concrete PSI 3,000

• Voltage  110 Volts
• Lifting Time  40 seconds
• Shipping Weight - 1,303 lbs.
• 2 stage arms 29.50"- 49.25''
  3 stage arms 34.25" - 49.25''
  center pin to center pad
