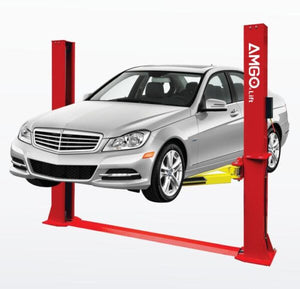

AMGO® BP-10 Base-Plate 2 Post Auto Lift 10,000-lb Capacity

AMGO BP series base plate two column lift are stronger and easier to operate than any other lifter in the world. The rugged BP-10 can lift up to 10,000lbs vehicles. It is designed without overhead barriers and suitable for professional and family garages with low ceilings to increase headroom. AMGO’s two column lifts are manufactured to high quality standards, using critical materials and components, with advanced features and innovative technology.

Finance Your Auto Lift Today. Apply Now.

Free Shipping

Features Include:

  • 10,000 lbs capacity, commercial grade 2-post base plate lift is designed and built for any professional shops and home garages to fit low ceiling workshop environment without overhead obstructions.

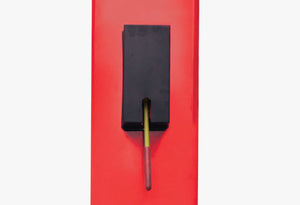

  • Single-point safety release allows the operator to unlock the safety locks from both Columns simultaneously. There is also a dual locking system for additional safety.

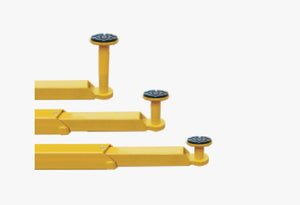

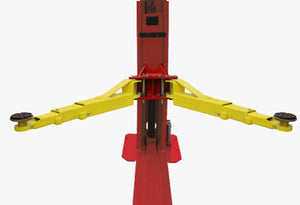

  • 4 three-stage arms are suitable for more vehicles.
  • Automatic arm restraints keep the arms locked in their proper positions.
  • Self-lubricating UHMW Polyethylene sliders and bronze bushings

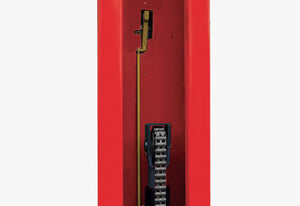

  • Aircraft quality cable is used for synchronization.
  • Detachable foot guard and tool tray allow for a clutter free work space.
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
  • Optional LED Light Kit, 20101

Specifications Include:

Model BP-10
Lifting Capacity 10,000lbs (4,536kg)
Lifting Time 62S
A: Lifting height 76 3/8″ ~ 85 3/8″ (1940~2169mm)
B: Overall Height 111 7/8″ (2841mm)
C: Overall Width 139 1/8″ (3534mm)
D: Drive-Thru Clearance 100 3/4″ (2560mm)
E: Width Between Columns 112 1/4″ (2850mm)
F: Minimum Pad Height 3 1/2″ (90mm)
Motor 2.0HP/220V/60Hz,Single Phase
Gross Weight 1,697lbs (770kg)
