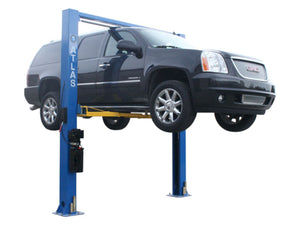

Atlas 9OHSC-SS Super-Symmetric Arms, Overhead 2 Post Auto Lift, 9000-lb

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or The Mr. Homeowner who demands the highest quality at the absolute best price. The Atlas® 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer. The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars ® to a Suburban ®.

The Atlas® 9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column. A single piece column coupled with the longer carriage offers unparalleled structural support for your types of lifting requirements. The Atlas® 9OHSC incorporates a single piece 11’ 10” formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.

Finance Your Auto Lift Today. Apply Now.

FREE SHIPPING

Atlas® 9OHSC-SS Specifications

• Capacity, 9,000 lb.

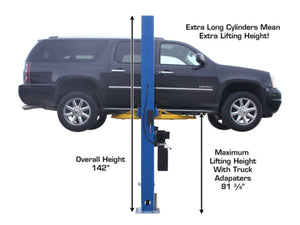

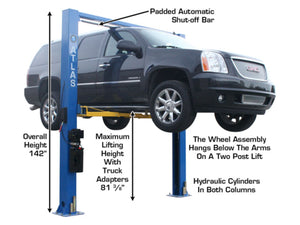

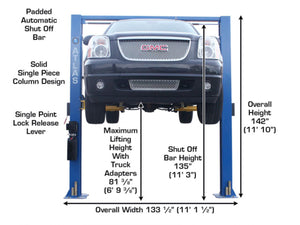

• Overall Height, 142" (11' 10")
• Overall Floor Width, 134" (11' 2")
• Outside Column To Outside Column, 125 1/2" (10' 5 1/2")
• Maximum Lift Height, (With Adapters) 81 3/8" (6' 9 3/8")

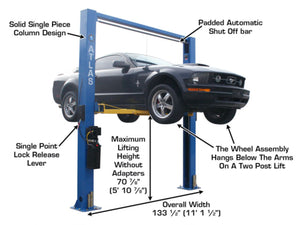

• Maximum Lift Height, (Without Adapters) 70 7/8" (5' 10 7/8")
• Minimum Pad Height, 4 1/4"

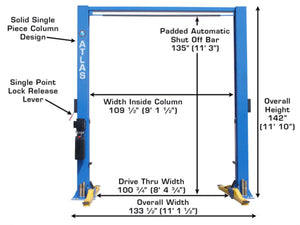

• Inside Column, 109 1/2" (9' 1 1/2")
• Drive Thru, 100 3/4" (8' 4 3/4")
• Motor/Electrical Requirement, 220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended
• Shipping Weight, 1,450 lb.
