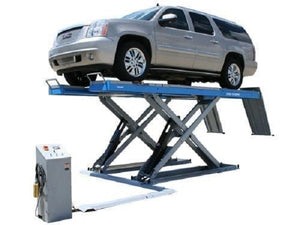

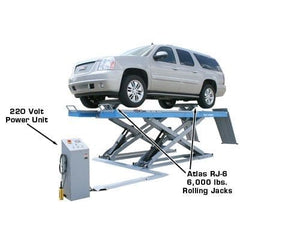

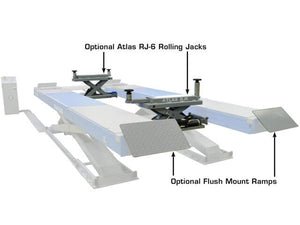

All Atlas® alignment scissor lifts can be surface mounted or flush mounted. Each lift comes with approach ramps for the floor mounted application or an optional set of ramps if the customer decides to flush mount the lift. There is optional Atlas RJ-6 rolling jacks that can lift the vehicle off of the runways to perform wheel service. Quality workmanship, ease of operation, straight forward installation instructions, a durable powder coat finish and the lowest prices in the Industry makes the Atlas® 12ASL 12,000 alignment scissor lift the perfect choice for the demanding fleet shops or auto service centers.
Finance Your Auto Lift Today. Apply Now.
Features include
Specifications Include
| Atlas® 12ASL 12,000 LB Alignment Scissor Lift Specifications | |
| Lifting Capacity | 12,000 LB |

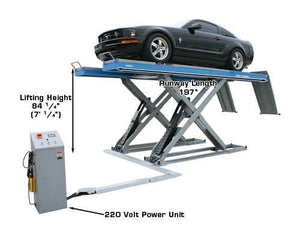

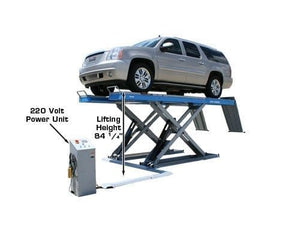

| Lifting Height | 84 1/4" (7' 1/4") |
| Overall Width | 86 3/8" (7' 2 3/8") |
| Overall Length with Approach Ramps | 250" (20' 10") |
| Overall Length without Approach Ramps | 197" (16' 5") |
| Approach Ramp Length | 53" (4' 5") |
| 4-Wheel Alignment Wheelbase |
Max. 168 in. |
| 2-Wheel Alignment Wheelbase | Max. 172 in. Min. 86 in. |

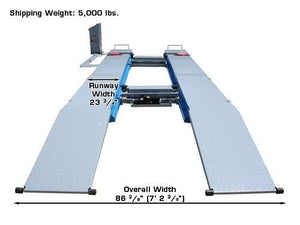

| Runway Width | 23 3/4" (1' 11 3/4") |
| Lowered Height | 11 1/2" |

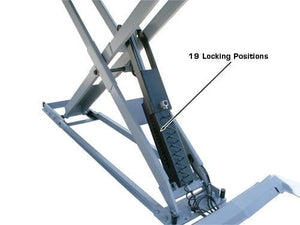

| Locking Positions | 19 |
| Width Between Runways | 39" |

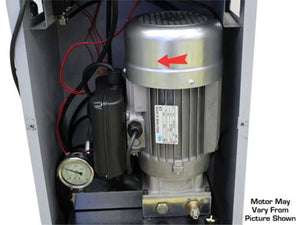

| Motor/Electrical Requirement | 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required. |
| Oil Requirement | 3.5 Gallons AW32/AW46 |
| Shipping Weight | 5000 lbs. |
