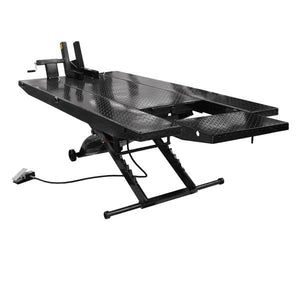

Atlas® Cycle Lift XLT Includes ATV/UTV Width Side Extensions and Dolly, CYCLFTXLT

The Atlas® Cycle Lift XLT ATV and golf cart air operated lift is the Atlas® Cycle Lift that has been equipped with the Atlas® Cycle Lift XLT kit. The Atlas® Cycle Lift XLT kit consists of two removable 93" X 12" diamond plated side extensions, two removable 12" X 20" diamond plated approach ramps, three cross tubes with lock rings, and a wheeled dolly.

When the Atlas® Cycle Lift XLT kit is attached (this takes about three minutes), to the Atlas® Cycle Lift, the lift is transformed into the Atlas® Cycle Lift XLT. When the XLT kit is attached to the Atlas® Cycle Lift, the raised platform area is 93" X 48" and the approach ramps are 20" X 48"

Financing Available. Apply Now.


Feature Include

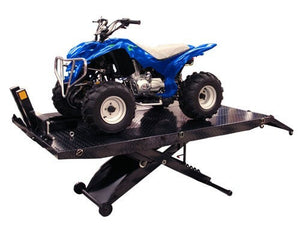

  • Perfect for ATV's, motorcycles, golf carts, etc.
  • 1,000-lb Capacity
  • 93" table length
  • Side extensions included
  • Diamond plate surface
  • Vise included
  • Powder coated
  • Extended length standard
  • Air operated

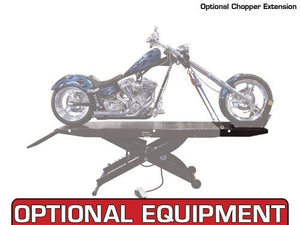

  • Fits almost all choppers
  • Foot pedal included
  • Wheeled dolly included
  • 1 Year Structural, 1 Year Hydraulic

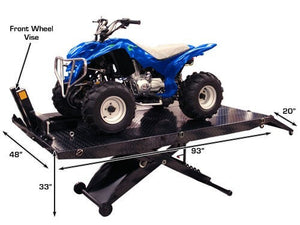

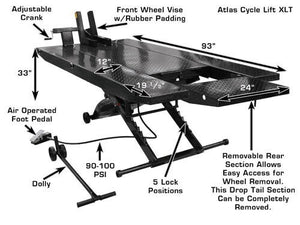

Specifications Include

Weight Capacity 1,000 LB.
Length w/ ramp 113" (9' 5")
Length w/o ramp 93" (7' 9")
Width 48" (4')
Full Rise 33" (2' 9")
Fully Lowered 7 1/4"
Removable approach ramp 20"
Length of Cut Out 19 1/2"
Cylinder 7" (internal size = 6")
Air Requirements 90 - 100 PSI / 5 CFM Delivery
Gauge of Steel 10 Gauge (.1345" / 3.42mm)

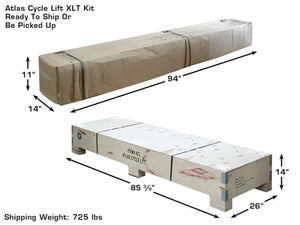

Shipping Weight 690 LB.
