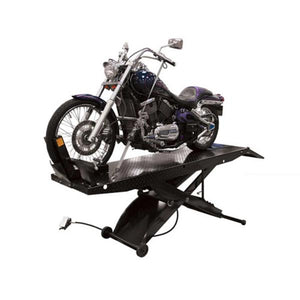

Atlas® HT-ACL Cycle Lift 1,000 Capacity with Drop In Rear Wheel Roller Plate

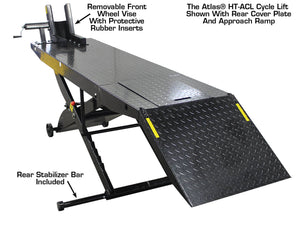

The Atlas® HT-ACL Cycle Lift features a removable (drop in) roller plate with grooved rollers for better traction. The motorcycle lift has a platform length of over 85 inches. In addition to the heavy gauge diamond plated platform, the Atlas® HT-ACL Cycle Lift comes with a 20 inch low profile removable approach ramp. Each Atlas® HT-ACL Cycle lift includes a rear stabilizer bar that increases the platform stability. Many lift distributors charge extra for this very important stabilizer bar.

The Atlas® HT-ACL Cycle Lift is air operated and requires between 90-100 PSI to raise the full capacity (1000 lbs.) to maximum height. The Atlas® HT-ACL Cycle Lift is the perfect addition to a service department of any professional motorcycle dealer or can be a great motorcycle lift for the rider who wants to work on his personal bike in his own garage.

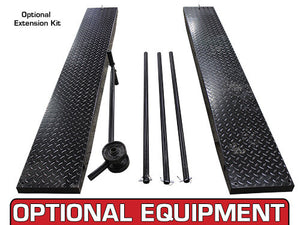

This is a complete motorcycle lift that includes an adjustable position padded front wheel vise and a heavy duty air operated foot valve for easy up and down operation. The Atlas® HT-ACL Cycle Lift motorcycle lift has a 20” x 11” removable roller plate. The Atlas® HT-ACL Cycle Lift can be equipped with the Atlas® Chopper Extension which adds 13" to your lift table platform, making the total length 98”.

The Atlas® HT-ACL Cycle Lift can also be equipped with the Atlas® XLT Kit which increases the platform work area to accommodate ATVs and larger vehicles.

Financing Available. Apply Now.

FREE SHIPPING

Features Include

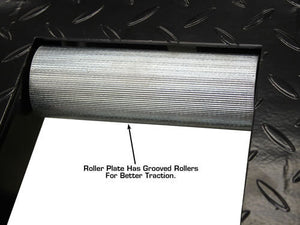

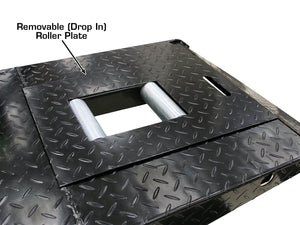

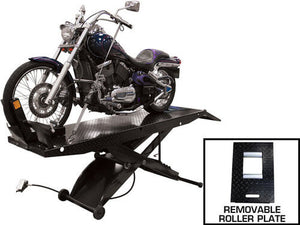

  • Removable (drop in) roller plate with grooved rollers for better traction.

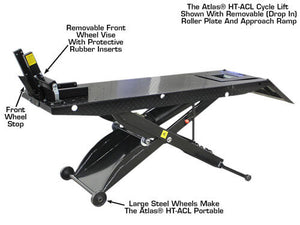

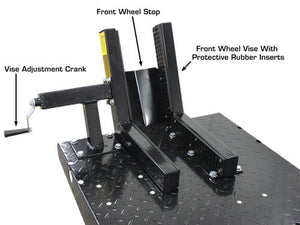

  • Removable front wheel vise with protective rubber inserts
  • 1,000 lbs. Weight Capacity
  • Diamond Plate Surface

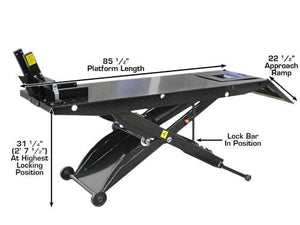

  • 85 ½" Table Length
  • 500 lb. Shipping Weight
  • 31 ¼" Full Rise
  • Air Operated

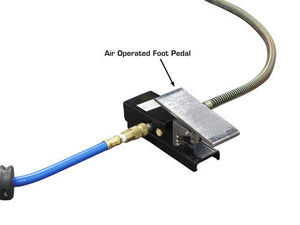

  • Foot Pedal Included

Specifications Include

Weight capacity 1,000 LBS.
Total length with ramp 107 1/2" (8' 11 1/2")
Center table length 85 1/2" (7' 1 1/2")
Center table width 24" (2')
Removable approach ramp 24" wide x 22 1/2" long
Height fully raised 31 1/4" (2' 7 1/4")
Height lowered 7"

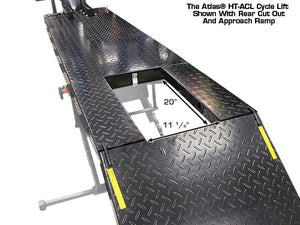

Removable roller plate 11 1/4" wide x 20" long
Cylinder 7" (internal size = 6")

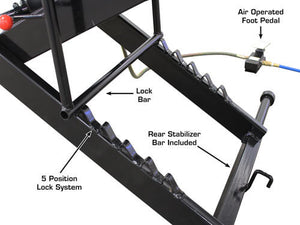

5 Locking Positions (21 ½, 25", 27 ¼, 29 ½, and 31 ¼)
Air requirements 90 - 100 PSI / 5 CFM Delivery
Gauge of steel 10 Gauge (.1345" / 3.42mm)

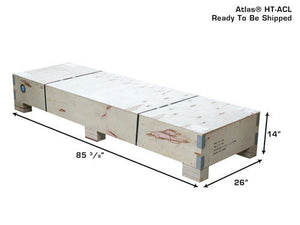

Shipping weight 500 LB.
