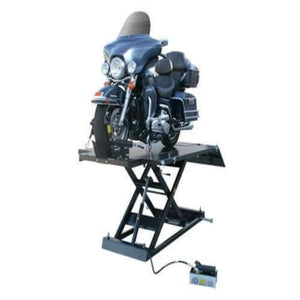

Atlas® HI-RISE 1500 Portable Air/Hydraulic Motorcycle/ATV Lift 1500 Lbs. Capacity, HT1005-KIT

This lift has a manufacturer’s rated lifting capacity of 1650 LB., but GSES rates the lift @ 1500 LB. (because we always under rate our weight capacities)The Atlas® HI-RISE 1500 motorcycle lift is powered by the Atlas® air/hydraulic power unit. This air/hydraulic power system has an extra large hydraulic fluid reservoir; thus assuring a smooth and steady lift travel to the highest locking position. You must have an air compressor that produces a minimum of 100 PSI to effectively operate the Atlas® HI-RISE 1500 lift.

The Atlas® HI-RISE 1500 has a maximum lifting height of 43 inches. This increased lifting height makes it easier to work on vehicles while the operator is standing. The included chopper extension increases the diamond plated center section of this motorcycle lift to 100 ¾ inches. The Atlas® HI-RISE 1500 includes a standard drop out rear section to allow for easy removal of the rear wheel assembly.

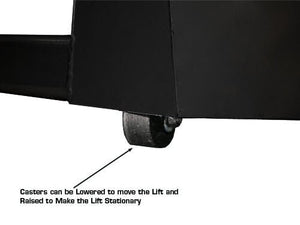

The Atlas® HI-RISE 1500 is portable. The Atlas® HI-RISE 1500 motorcycle/ATV lift comes with a heavy duty front wheel clamp and a set of adjustable approach ramps.

Financing Available. Apply Now.

FREE SHIPPING

Features Include

  • Weight capacity – 1,500 LB.

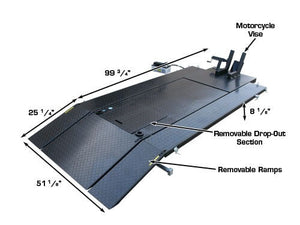

  • Includes removable drop out section
  • Includes chopper extension
  • Table length without approach ramp or chopper extension – 80”
  • Removable approach ramp included
  • Maximum lifting height - 43”
  • Lowered height – 7 ½”
  • Table width – 51" with side extensions

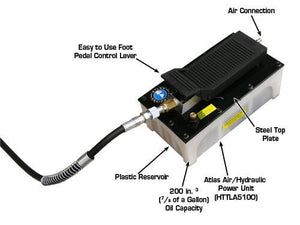

  • High quality Atlas® air/hydraulic power unit
  • Heavy Duty Construction

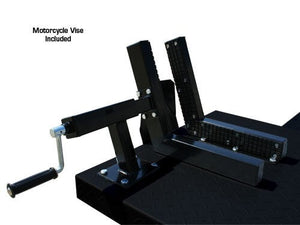

  • Vise included
  • Warranty: 1 Year Structural, 90 Day Hydraulic

Specifications Include

Weight Capacity 1,500 lbs.

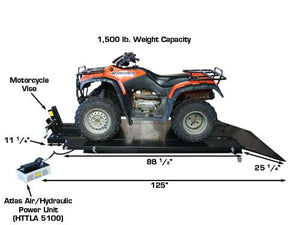

Overall length (w/ ramps)* 125" (10' 5 ")

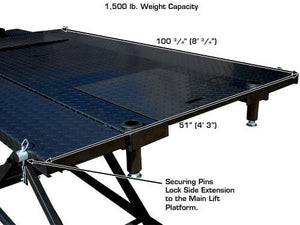

Center Table length (w/o ramps)* 99 ¾" (8' 3 ¾")

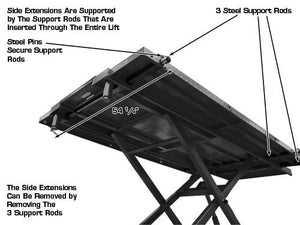

Side Extension length (w/o ramps) 88 1/2" (7' 4 1/2")

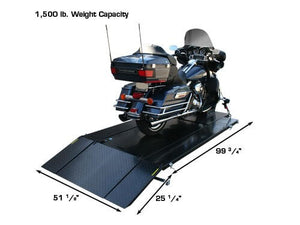

Center Table width (w/ side extensions) 51 1/8" (4' 3 1/8")
Center Table width (w/o side extensions) 29 ½"

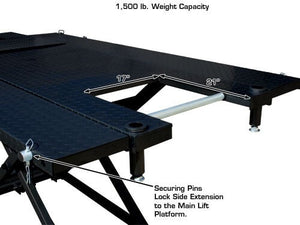

Rear Cut Out 17" wide x 20" long

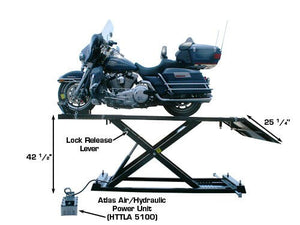

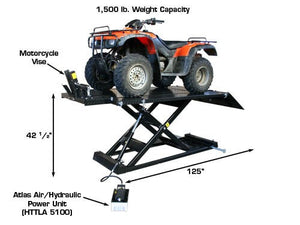

Height fully raised 42 1/2 " (3' 6 1/2")
Height lowered 8 1/8"

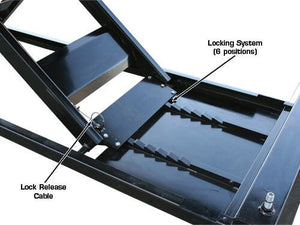

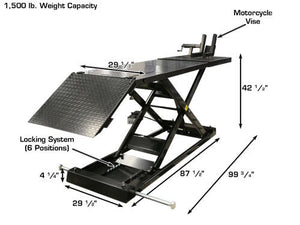

6 Locking Positions (23", 27 ½", 31 ¼", 34 ¾", 37 ½", and 40")
Air Requirements 90 - 100 PSI / 5 CFM Delivery
Gauge of Steel 11 Gauge (.11" / 2.8mm)
Base of Lift 87 1/2" long x 29 /12" wide x 4 1/4" tall

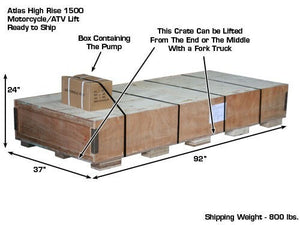

Shipping Weight 800 Lbs.
*These measurements are taken with the free Chopper Extension attached. The Chopper Extension is 20 ¾" long.
